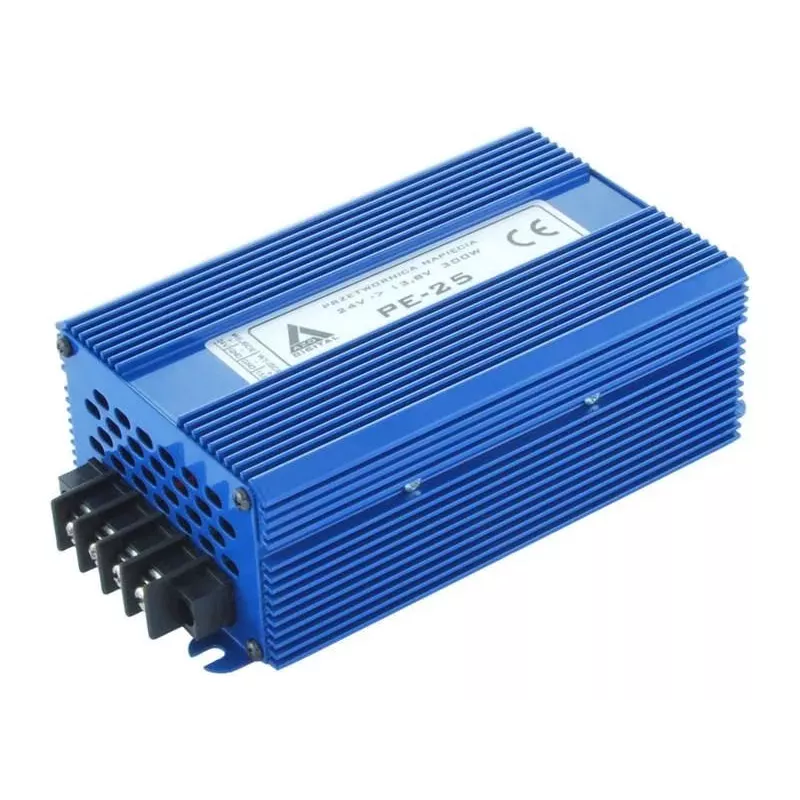

AZO Digital 24 VDC / 13.8 VDC conversor de tensão PE-25 300W IP21

The AZO Digital PE-25 is a high-performance DC-DC power converter designed to convert 24 VDC input to a stable 13.8 VDC output, delivering up to 300W of continuous power. Ideal for industrial and telecommunications applications, this converter features an IP21-rated anodized aluminum housing, internal fan cooling, and comprehensive protection against overload, short circuit, over temperature, and input reverse polarity. With an efficiency exceeding 90%, it ensures reliable operation in demanding environments.

Advantages

High efficiency (>90%) reduces energy loss and heat generation. Robust protection features safeguard connected equipment. Compact design with screw terminals for easy installation. Wide input voltage range (18-32 VDC) accommodates varying power sources.

Suitable for

• Industrial automation systems
• Telecommunications equipment
• Security and surveillance systems
• Battery charging applications
• Any 24 VDC to 13.8 VDC conversion need

Key specifications

• Input Voltage: 24 VDC (18-32 VDC range)
• Output Voltage: 13.8 VDC
• Continuous Output Power: 300 W
• Maximum Output Current: 21.7 A
• Efficiency: >90%
• Protection: Overload, Short Circuit, Over Temperature, Input Reverse Polarity
• Cooling: Internal Fan
• IP Rating: IP21
• Operating Temperature: -20°C to +50°C
• Output Ripple & Noise: <100 mVp-p
• Line/Load Regulation: <1%
• Connections: Screw Terminals
• Housing: Anodized Aluminum
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure adequate ventilation around the converter. Use appropriate gauge wiring for input and output connections. This converter is not isolated; verify system grounding requirements.
