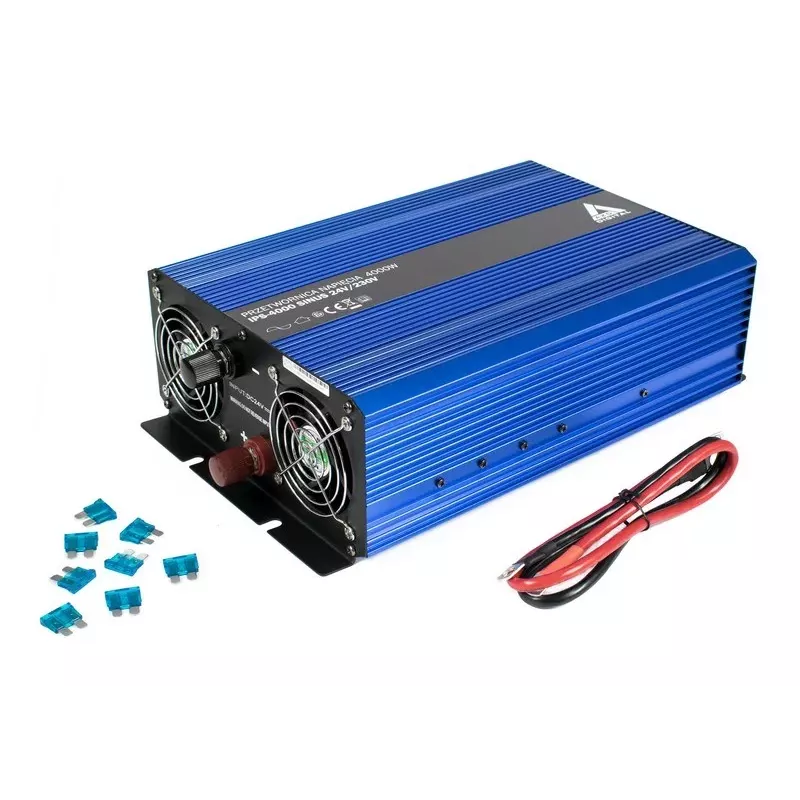

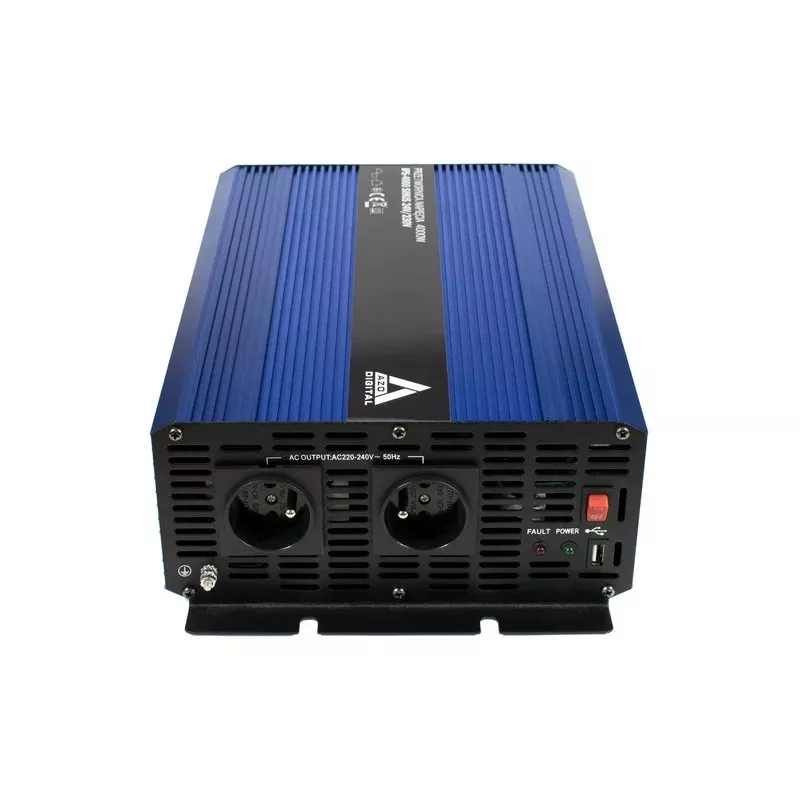

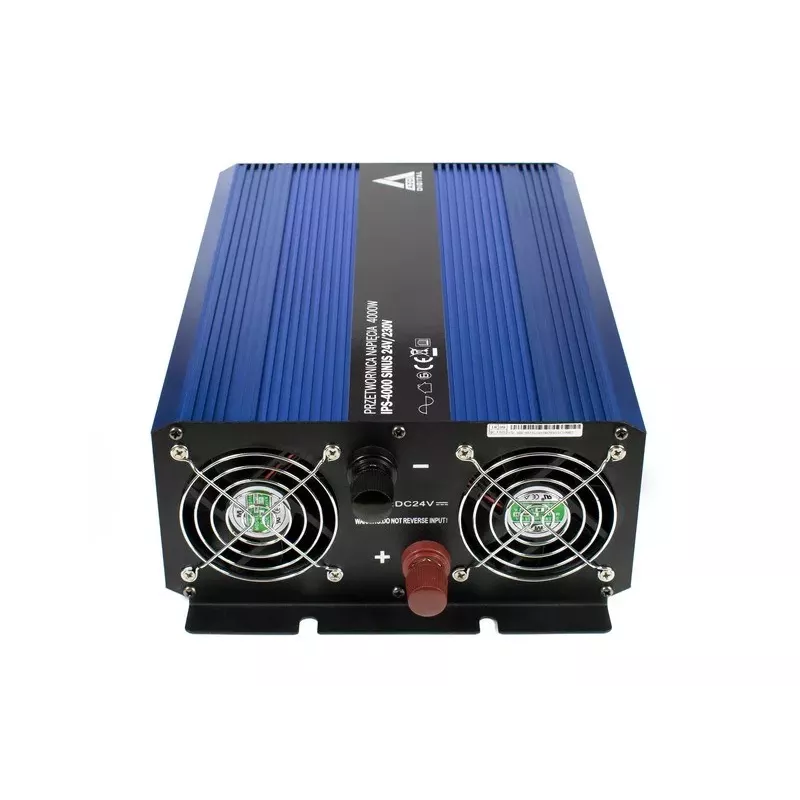

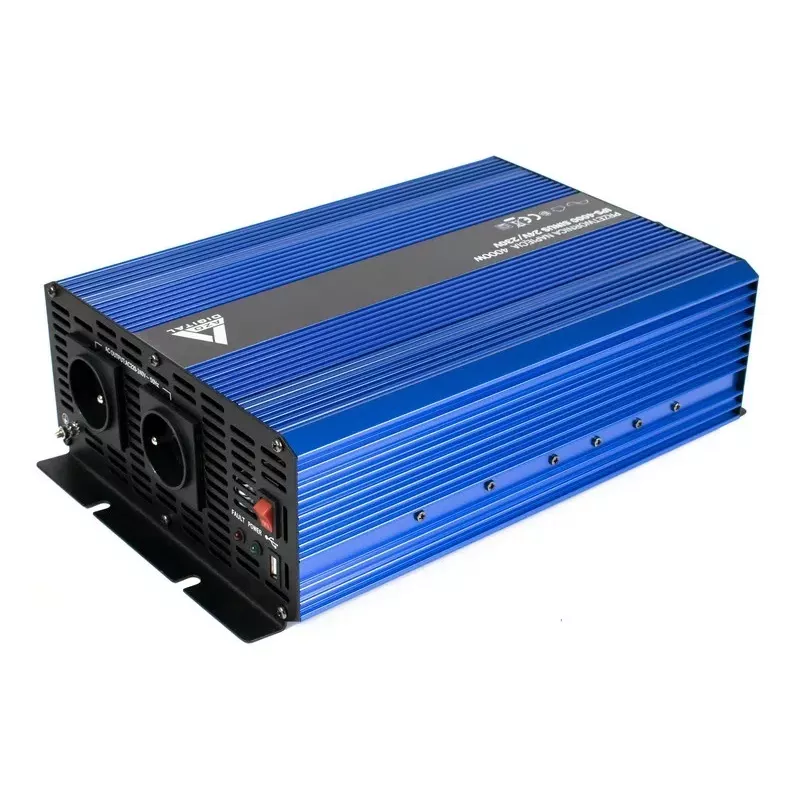

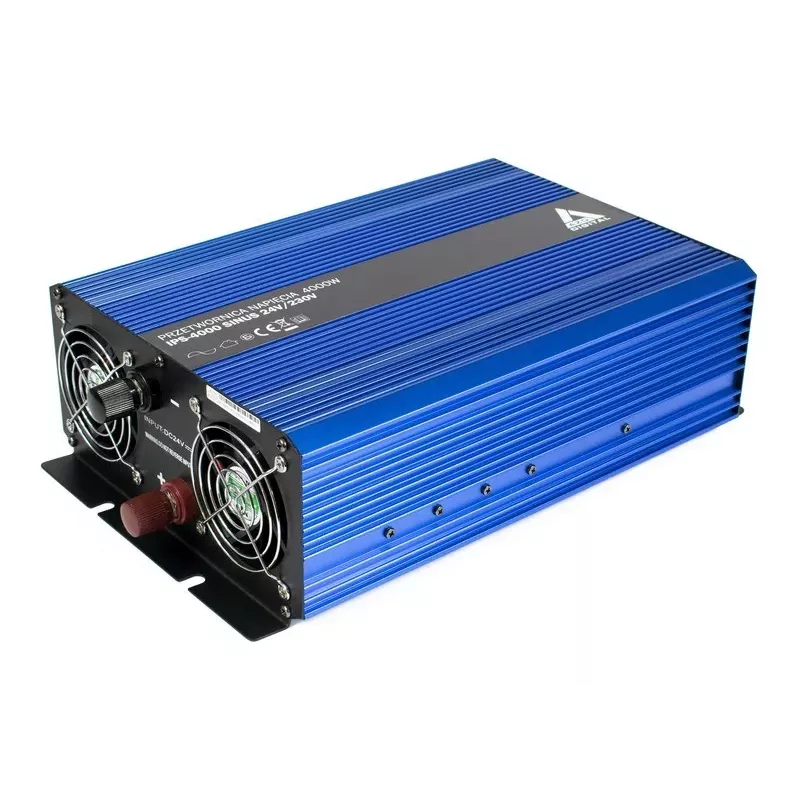

AZO Digital Conversor 24 VDC / 230 VAC SINUS IPS-4000S 4000W inversor de onda sinusoidal pura

The AZO Digital SINUS IPS-4000S is a high-performance pure sine wave inverter designed to convert 24V DC battery power into stable 230V AC mains power. With a continuous output of 4000W and peak power of 8000W, it is ideal for powering sensitive electronic equipment, tools, and appliances in off-grid, mobile, or backup power applications.

Advantages

Pure sine wave output ensures compatibility with sensitive electronics such as medical devices, audio/video equipment, and variable speed tools. High efficiency (>90%) reduces battery drain, while comprehensive protection circuits safeguard the inverter and connected devices. The LCD display provides real-time monitoring of input/output voltage, power, and frequency.

Suitable for

• Off-grid solar systems
• Caravans, RVs, and boats
• Emergency backup power
• Mobile workshops and field operations

Key specifications

• Continuous Power: 4000W
• Peak Power: 8000W
• Input Voltage: 24V DC (21-30V range)
• Output Voltage: 230V AC, 50Hz
• Output Waveform: Pure Sine Wave
• Efficiency: >90%
• No-Load Current: <1.5A
• Output Sockets: 2x Schuko (Type F)
• Protections: Overload, Short Circuit, Over-temperature, Over-voltage, Under-voltage, Reverse Polarity
• Cooling: Thermostatically controlled fan
• Display: LCD
• Remote Control Port: Yes (optional wired remote)
• Operating Temperature: -10°C to +50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a deep-cycle battery and appropriate cable gauge. The optional remote control allows convenient on/off switching from a distance.
