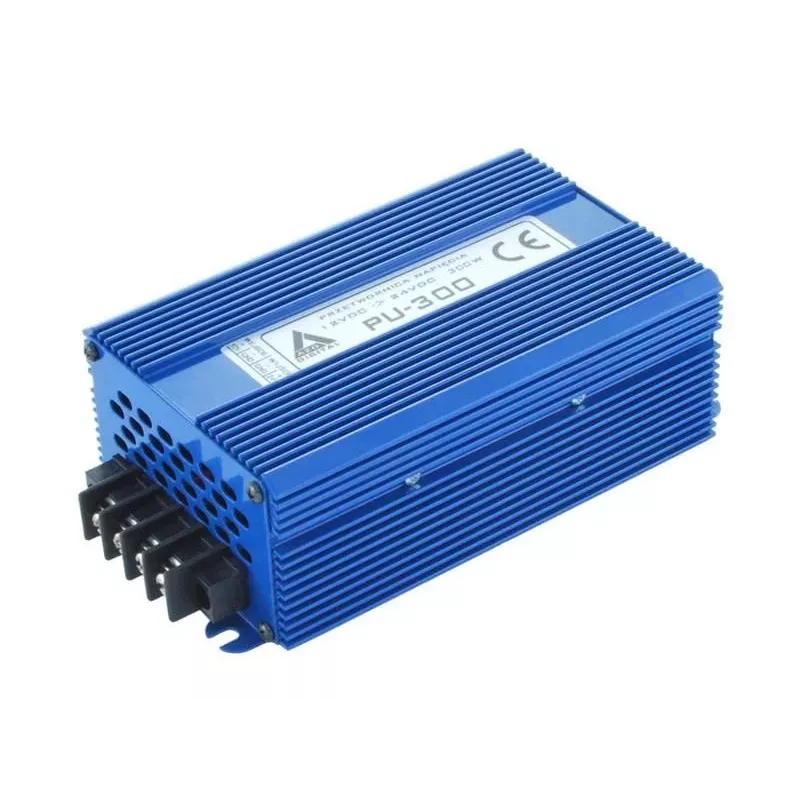

AZO Digital Conversor de tensão DC-DC 10-20 VDC / 24 VDC 300W IP21

The AZO Digital PU-300 is a high-performance DC-DC voltage converter designed to step up an input voltage of 10-20 VDC to a stable 24 VDC output. With a continuous power rating of 300W and an output current of up to 12.5A, this converter is ideal for industrial, automotive, and renewable energy applications where a reliable 24V supply is needed from a lower voltage source.

Advantages

This converter offers high efficiency (>85%), comprehensive protection features (overload, short circuit, over-voltage, under-voltage, over-temperature), and a rugged metal enclosure with IP21 rating. Its passive cooling ensures silent operation and long-term reliability.

Suitable for

• Industrial control systems
• Automotive and marine electronics
• Solar power systems
• Telecommunications equipment
• LED lighting installations

Key specifications

• Input voltage: 10-20 VDC (nominal 12 VDC)
• Output voltage: 24 VDC
• Continuous output power: 300W
• Maximum output current: 12.5A
• Efficiency: >85%
• Protection: Overload, short circuit, over-voltage, under-voltage, over-temperature
• IP rating: IP21
• Cooling: Passive (convection)
• Operating temperature: -20°C to +50°C
• Input/output connection: Screw terminals
• Mounting: Surface / wall mount
• Enclosure material: Metal

Recommendations

For optimal performance, ensure adequate ventilation around the converter. Use appropriately rated wiring and fusing. This converter is non-isolated; verify system grounding requirements.
