Bachmann 902.302 extensão de corrente 1,5 m 3 tomadas AC branco

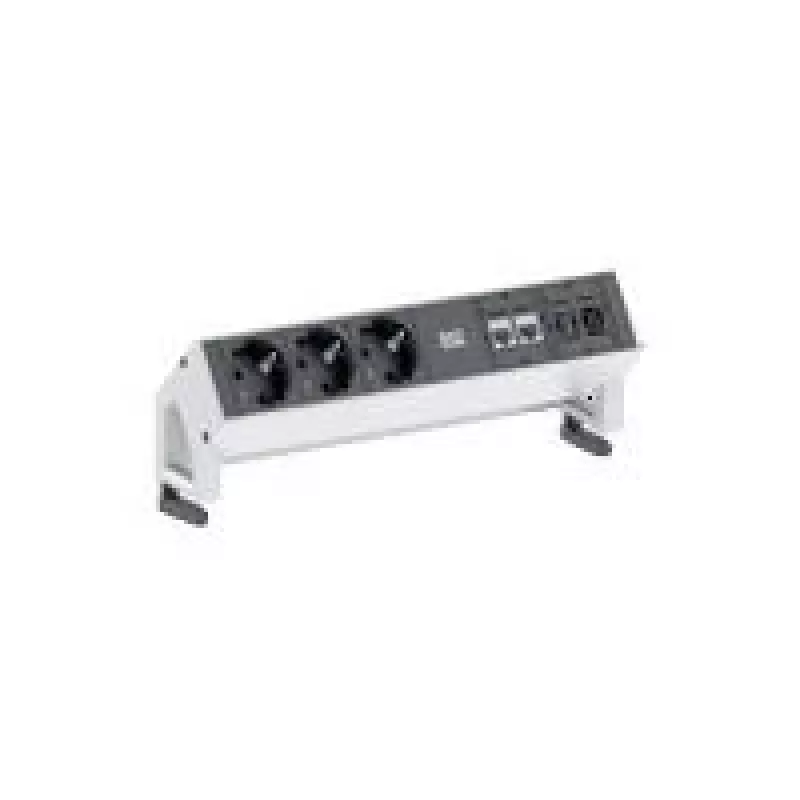

The Bachmann 902.302 power extension is a compact white power module with a 1.5 m supply cable and three AC outlets with earthing contact. The outlets are child-proof and set at a 35° angle. The unit includes two CAT6 coupling sockets, one USB A‑A 3.0 keystone module and one HDMI keystone socket, providing power and connectivity options for home or office equipment. Painted in RAL 9010 white, the module has a depth of 282 mm and is intended for use with a separate GST18 device supply cable with earth contact.

Advantages

The device combines three grounded AC outlets with data and audiovisual keystone modules in a single compact module, reducing cable clutter and centralizing connections. Angle-mounted outlets improve plug accessibility and the child-proof contacts enhance safety. A dedicated USB 3.0 keystone provides fast data-capable USB connectivity while the CAT6 couplers and HDMI keystone support network and video connections without additional adapters.

Suitable for

• Powering multiple desktop or office devices (PCs, monitors, printers)
• Workstations or meeting rooms requiring network and HDMI access
• Home offices where consolidated power and connectivity are needed

Key specifications

• Brand: Bachmann
• Model / MPN: 902.302
• EAN: 4016514043170
• Cable length: 1.5 m (separate device supply cable, GST18 with earth contact)
• AC outlets: 3 grounded sockets, child-proof, set at 35°
• Keystone modules: 2 × CAT6 coupling, 1 × USB A–A 3.0 keystone, 1 × HDMI keystone
• Color / finish: Painted RAL 9010 white
• Depth: 282 mm

How to use

Connect the Bachmann module to mains power using the provided 1.5 m GST18 device supply cable with earth contact. Insert plugs into the three angled AC outlets for powering equipment. Install CAT6 cables into the CAT6 coupling sockets for network connections and use the HDMI keystone for video signal routing. The USB A‑A 3.0 keystone accepts compatible USB connectors for data-capable links between devices. Ensure each connector is fully seated before powering connected equipment.

Recommendations

Place the module on a stable surface or mount it according to the environment’s mounting options, keep the supply cable free from sharp bends, and avoid overloading the combined outlets beyond the device’s rated capacity. For permanent installations consult local electrical codes and a qualified electrician.
