BACHMANN Cabo espiral H05VV-F 3G1,5mm² 1,5m-6m preto 0,2m extremidades retas

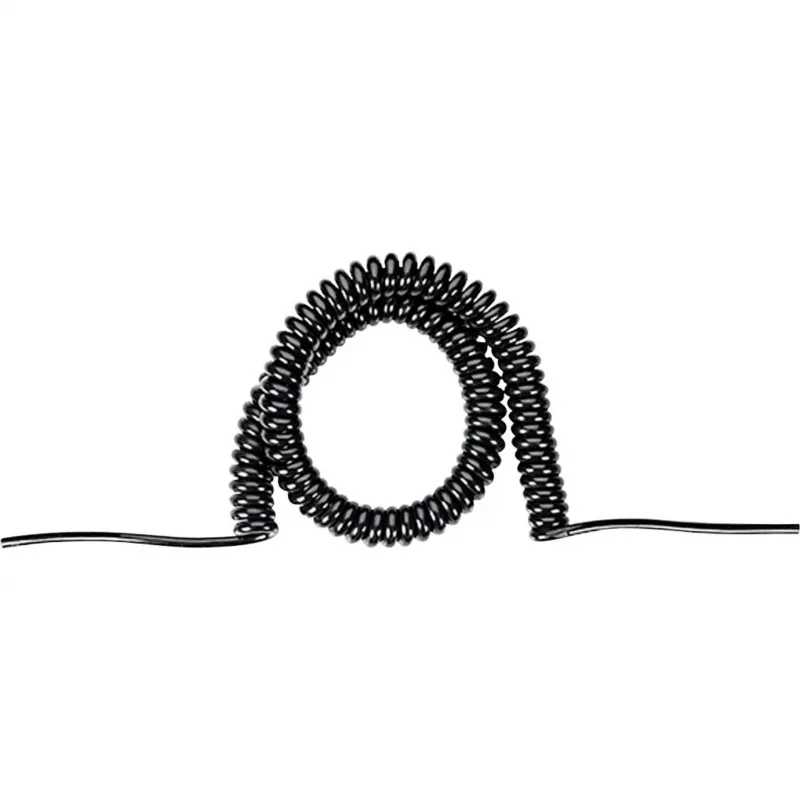

The BACHMANN BM0010700 spiral cable is a high-quality, flexible power supply cable designed for applications requiring movement and extension. With a retracted length of 1.5 meters and an extended length of up to 6 meters, it provides convenient reach while minimizing clutter. The cable features a black PVC sheath and insulation, with 3 cores of 1.5 mm² copper conductors including a green/yellow earth conductor. Both ends are cut bare wire with 0.2m straight sections, making it ideal for direct connection to terminals or custom connectors.

Advantages

This spiral cable offers excellent flexibility and durability, thanks to its PVC construction and flame-retardant properties. The spiral design allows for easy extension and retraction, reducing cable tangling and saving space. It is suitable for both flexible and fixed installations within specified temperature ranges.

Suitable for

• Flexible power supply for moving parts in machinery and tools
• Power connection for appliances and equipment requiring extendable cables
• Industrial and commercial applications where cable management is important

Key specifications

• Cable Type: Spiral Cable
• Cable Standard: H05VV-F
• Conductor Configuration: 3G1.5mm² (3 cores, 1.5 mm², with earth)
• Retracted Length: 1.5 m
• Extended Length: 6 m
• Colour: Black
• Insulation Material: PVC
• Sheath Material: PVC
• Rated Voltage: 300/500 V
• Conductor Material: Copper
• End Type 1: Bare Wire (Cut)
• End Type 2: Bare Wire (Cut)
• Length of Straight Ends: 0.2 m
• Operating Temperature (Flexible): +5°C to +60°C
• Operating Temperature (Fixed): -5°C to +70°C
• Flame Retardant: Yes (IEC 60332-1-2)
• Halogen-Free: No
• Number of Cores: 3
• Earth Conductor: Yes (Green/Yellow)

Recommendations

This cable is ideal for applications requiring a robust, extendable power connection. Ensure proper termination and strain relief for optimal performance.
