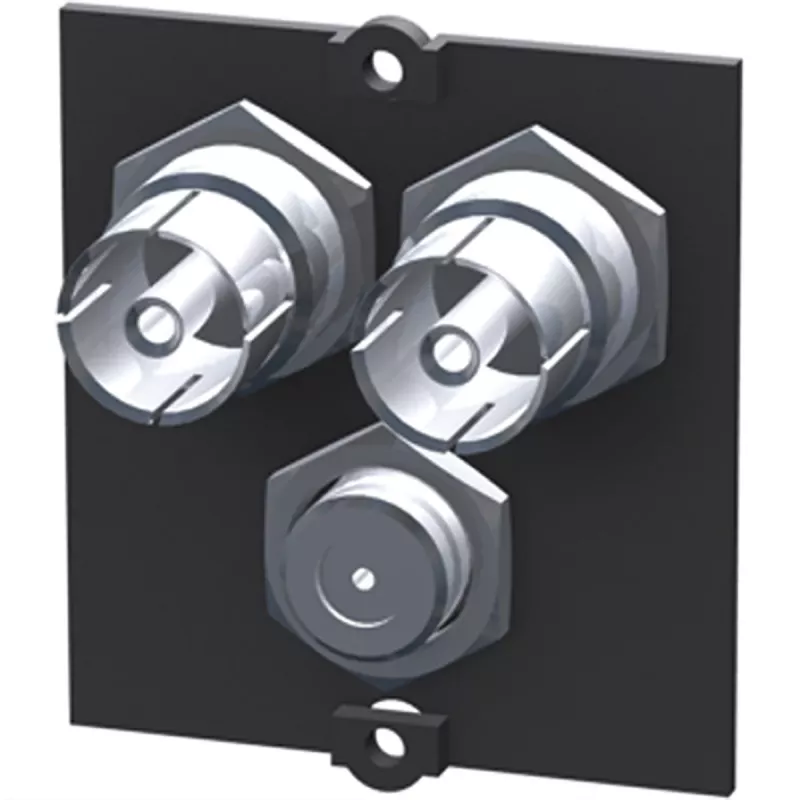

Bachmann Custom Module 1 x SAT / TV / Rádio - Modular Faceplate Snap-In

The Bachmann Custom Module 1 x SAT / TV / Radio is a modular faceplate snap-in designed for professional multimedia installations. It integrates satellite, terrestrial TV, and radio signals into a single, sleek module, compatible with Bachmann Custom Module systems such as DESK 1, DESK 2, KINECT, and CONTOUR. The black plastic housing ensures durability and a clean aesthetic.

Advantages

This module simplifies signal distribution by combining three connectors in one unit, reducing clutter and installation time. The snap-in mounting system allows for quick and tool-free integration into compatible faceplates. With shielding class A, it provides excellent protection against electromagnetic interference, ensuring reliable signal quality.

Suitable for

• Office environments requiring multimedia connectivity
• Conference rooms with satellite, TV, and radio needs
• Residential installations for centralized signal distribution
• Professional AV setups in hospitality or education

Key specifications

• Module Type: Custom Module
• Front Connectors: 1x F-connector (SAT), 1x Coaxial (TV), 1x Coaxial (Radio)
• Rear Connectors: 1x F-connector (SAT), 1x Coaxial (TV), 1x Coaxial (Radio)
• Supported Signals: Satellite (SAT), Terrestrial Television (TV), Radio (FM)
• Frequency Range (SAT): 950 - 2400 MHz
• Frequency Range (TV/Radio): 5 - 862 MHz
• Insertion Loss (SAT): < 2.0 dB
• Insertion Loss (TV/Radio): < 2.0 dB
• Shielding Class: A
• Mounting System: Snap-in
• Number of Ports: 3 (1x SAT, 1x TV, 1x Radio)
• Housing Material: Plastic
• Color: Black
• Compatibility: Bachmann Custom Module systems (e.g., DESK 1, DESK 2, KINECT, CONTOUR)
• Design: Modular Faceplate Insert

Recommendations

For optimal performance, pair this module with Bachmann faceplates and ensure proper cable termination. Ideal for new installations or upgrades where space and signal integrity are priorities.
