Barra de ligação equipotencial OBO Bettermann 1810, 348 mm, 10 pontos de ligação, tampa transparente 5015057

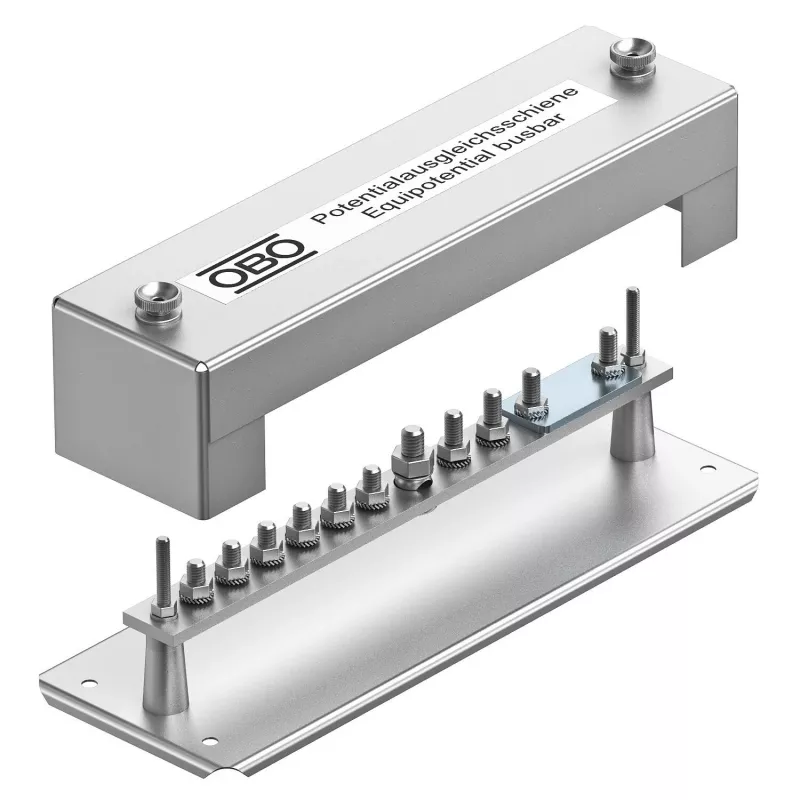

The 1810 equipotential bonding bar from OBO Bettermann provides a centralized, clearly arranged connection point for protective equipotential bonding and lightning protection systems. Its nickel-plated brass contact rail, mounted on a galvanized steel base, ensures reliable conductivity across all terminals.

Highlights

• 10 connection points: 7 small terminals (up to 25 mm² solid/stranded, 16 mm² fine-stranded) and 2 large terminals (up to 95 mm² solid/stranded, 70 mm² fine-stranded) plus one flat conductor connection (30 x 3.5 mm)
• Transparent, hinged, sealable cover protects against accidental contact and allows visual inspection
• Wall or surface mounting with pre-drilled base plate
• Integrated test point for periodic testing according to standards
• Complies with DIN VDE 0100-410, DIN VDE 0100-540, and DIN VDE 0185-305-3

In daily use

Install the bar in a central, accessible location. Connect the protective conductors to the appropriate terminals using the M5 or M8 screws. The transparent cover can be sealed to prevent unauthorized access. Use the test point to verify the integrity of the bonding connection during routine inspections.

Full specifications

• Product type: Equipotential bonding bar
• Series: 1810
• Base plate material: Galvanized steel
• Contact rail material: Nickel-plated brass
• Number of connection points: 10
• Connection capacity (small conductors): 7 x up to 25 mm² (solid/stranded) / 16 mm² (fine-stranded)
• Connection capacity (large conductors): 2 x up to 95 mm² (solid/stranded) / 70 mm² (fine-stranded)
• Connection capacity (flat conductor): 1 x 30 x 3.5 mm
• Cover type: Transparent, hinged, sealable
• Mounting type: Wall / surface mounting
• Standards compliance: DIN VDE 0100-410, DIN VDE 0100-540, DIN VDE 0185-305-3
• Screw type (small terminals): M5
• Screw type (large terminals): M8
• Test point: Yes
• Length: 348 mm
• Width: 50 mm
• Height: 40 mm
• Max. operating temperature: +40 °C
• Min. operating temperature: -5 °C

Final note

With its robust construction and clear terminal layout, this bonding bar simplifies compliance with electrical safety regulations.
