Barra de pinos DeLOCK 66699 acessório para placas de circuito impresso

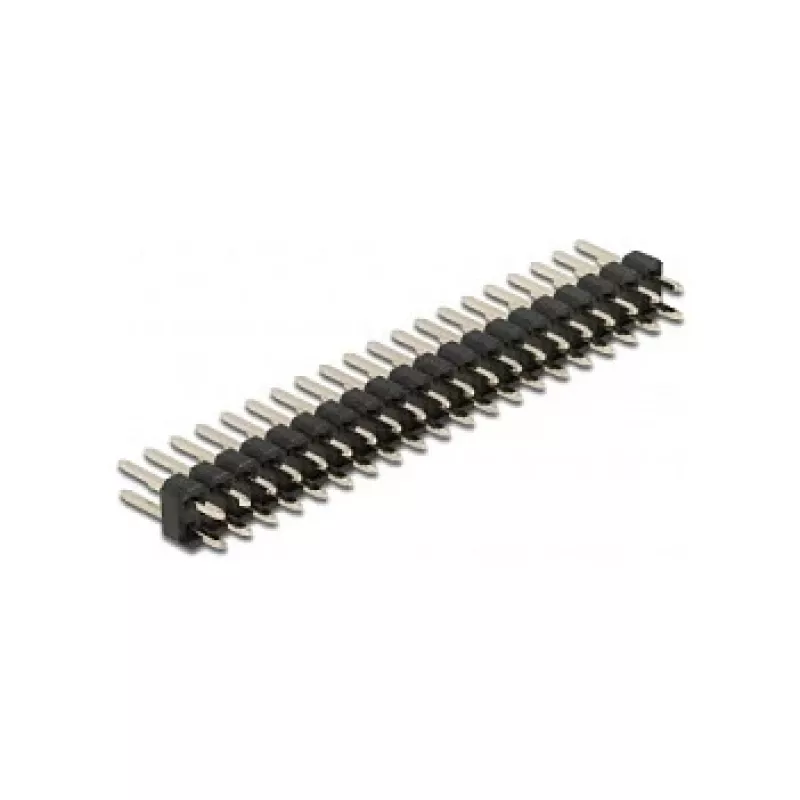

The DeLOCK 66699 pin header is a printed circuit board accessory designed to create reliable electrical connections between individual circuit boards. It combines metal contacts with plastic insulation in a compact form factor and is supplied in a pack of five pieces.

Advantages

The pin header offers a robust metal contact surface and plastic housing for secure mounting on PCBs. Its compact dimensions (50.8 mm length, 11.5 mm depth, 5 mm height) allow use in constrained spaces while maintaining stable connection points. The pack of five ensures multiple installations or spares for prototyping and small series builds.

Suitable for

• Connecting modular printed circuit boards
• Prototyping and development boards
• Repairing or extending electronic assemblies
• Hobby electronics and DIY projects

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66699
• EAN: 4043619666997
• Material: metal contacts with plastic housing
• Color: black and metallic
• Dimensions: 50.8 mm (length) × 11.5 mm (depth) × 5 mm (height)
• Quantity: 5 pieces per pack
• Category: Printed circuit board accessory

How to use

Install the pin header by aligning its pins with the corresponding holes on the PCB and solder each pin to the board pads to ensure mechanical and electrical connection. Verify pin orientation and spacing before soldering to match mating connectors or board layout. After soldering, inspect joints for continuity and secure mechanical fixation.

Recommendations

When soldering, use appropriate soldering temperature and flux for the PCB and component materials, and allow sufficient cooling time. Store unused pieces in a dry environment to prevent corrosion of the metal contacts.
