Barra de pinos DeLOCK 66701 acessório para placas de circuito impresso (PCB)

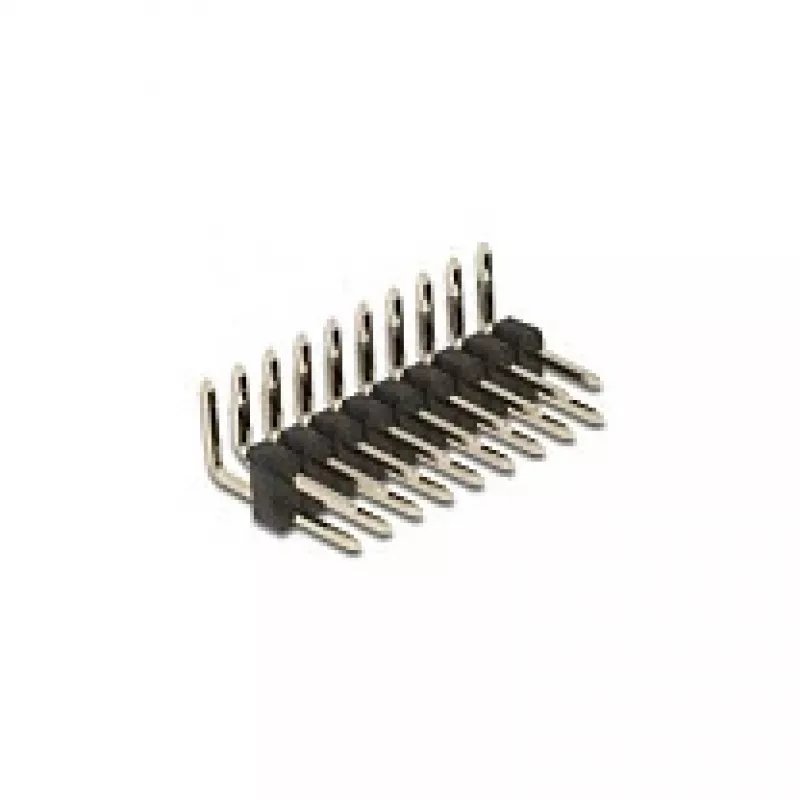

The DeLOCK 66701 pin header is an accessory for printed circuit boards (PCBs) designed to create reliable electrical connections between boards or to interface modules and components. It combines metal contacts with plastic housing in a black and metallic finish and is suitable for a range of electronic and DIY applications.

Advantages

The pin header provides a compact, durable connection point on PCBs thanks to its metal contacts and plastic body. Its standardized pin spacing and robust construction ensure stable electrical contact and easy soldering or insertion into compatible connectors. The small footprint and consistent dimensions make it suitable for both prototyping and professional circuit board assemblies.

Suitable for

• Creating board-to-board connections on printed circuit boards
• Connecting modules, sensors or jumpers in electronic projects
• Prototyping and development on breadboards and custom PCBs
• Repairing or upgrading electronic devices that use header pins

Key specifications

• Brand: DELOCK
• Model / MPN: 66701
• EAN: 4043619667017
• Material: metal contacts with plastic housing
• Color: black and metallic
• Dimensions: length 25.4 mm, depth 12.9 mm, height 5 mm
• Category: Printed circuit board (PCB) accessory

How to use

Place the pin header into the designated holes on the PCB so that the pins align with the pads. Solder each pin carefully to ensure solid mechanical and electrical contact, or insert the header into a compatible socket if applicable. Observe correct orientation and ensure no solder bridges between adjacent pins. Use standard soldering equipment and follow ESD precautions when handling sensitive electronic components.

Recommendations

For reliable results, verify pin spacing and compatibility with mating connectors before soldering. Use a temperature-controlled soldering iron and appropriate flux; after soldering, inspect joints and clean any flux residue. Store the header in a dry, static-free environment until installation.
