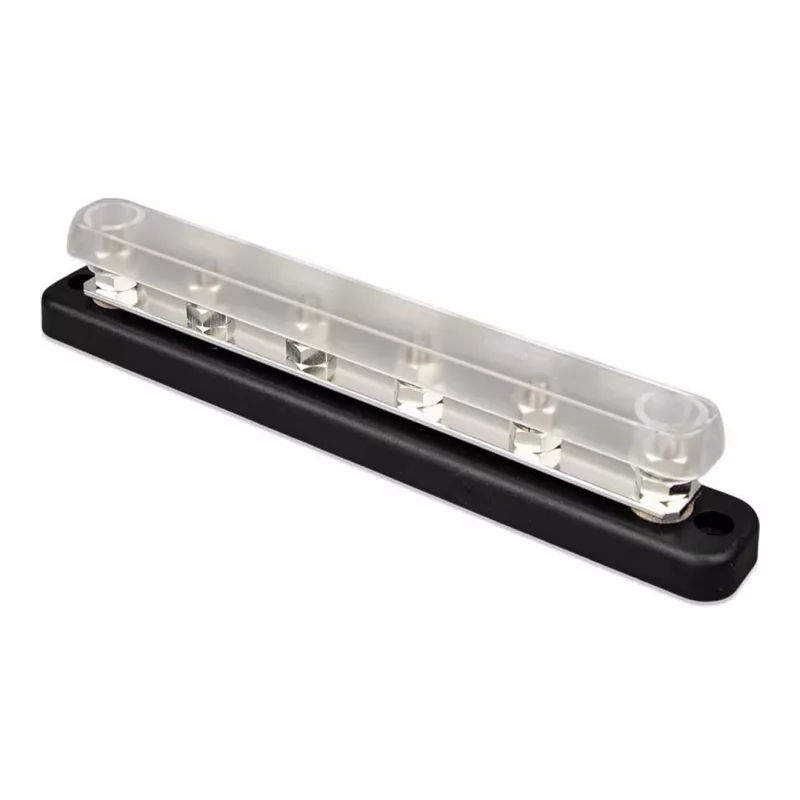

Barramento de energia Victron Energy 150A 6P com cobertura PC

Managing high-current DC distribution in marine, automotive, and off-grid electrical systems often leads to messy wiring, unprotected circuits, and difficult maintenance. The Victron Energy Busbar 150A 6P with PC Cover solves this by providing a clean, modular, and safe way to distribute power from a main busbar to six fused outputs, all within a compact and durable enclosure.

Who is it for

This busbar is ideal for installers and system integrators working with Victron Lynx Distribution Systems, as well as anyone needing a reliable 12V, 24V, or 48V DC power distribution point. It suits marine electricians, RV builders, solar installers, and off-grid enthusiasts who demand high-quality, certified components.

Main features

• 150A continuous current rating per output, with a total main busbar capacity of 1000A.
• Six connection points: two main input terminals and four fused output terminals, all using M8 bolts.
• Compatible with MEGA fuses (not included) for circuit protection up to 300A per output.
• Tinned copper busbar ensures excellent conductivity and corrosion resistance.
• Removable transparent polycarbonate cover provides touch-safe protection and easy visual inspection.
• Flexible mounting: DIN rail (35mm) or surface mount, with a modular design that integrates seamlessly with Victron Lynx products.
• Wide operating temperature range from -40°C to +60°C and IP22 protection rating.

Specifications

• System voltage range: 9 - 60 V DC
• Main busbar continuous current: 1000 A
• Number of fused outputs: 4
• Max current per fused output: 300 A (limited by MEGA fuse)
• Fuse type: MEGA fuses (not included)
• Main connection terminals: 2x M8 bolts
• Fused output terminals: 4x M8 bolts
• Busbar material: Tinned Copper
• Enclosure material: ABS / Polycarbonate (PC)
• Cover type: Removable transparent PC cover
• Mounting options: DIN rail (35mm) or surface mount
• Operating temperature range: -40°C to +60°C
• Protection rating: IP22
• Compatibility: Victron Lynx Distribution System (Lynx Power In, Lynx Smart BMS, Lynx Shunt VE.Can)
• Modular design: Yes
• Certifications: CE, E-mark
• Recommended cable size (main): Up to 4/0 AWG / 95mm²
• Recommended cable size (output): Up to 4/0 AWG / 95mm²

Tips

For optimal performance, use MEGA fuses rated appropriately for each circuit. Ensure all connections are tightened to the recommended torque and periodically inspect the transparent cover for any signs of damage or contamination.
