Base de chão B-Tech BT8380 base metálica preta 86 mm largura 950 mm profundidade

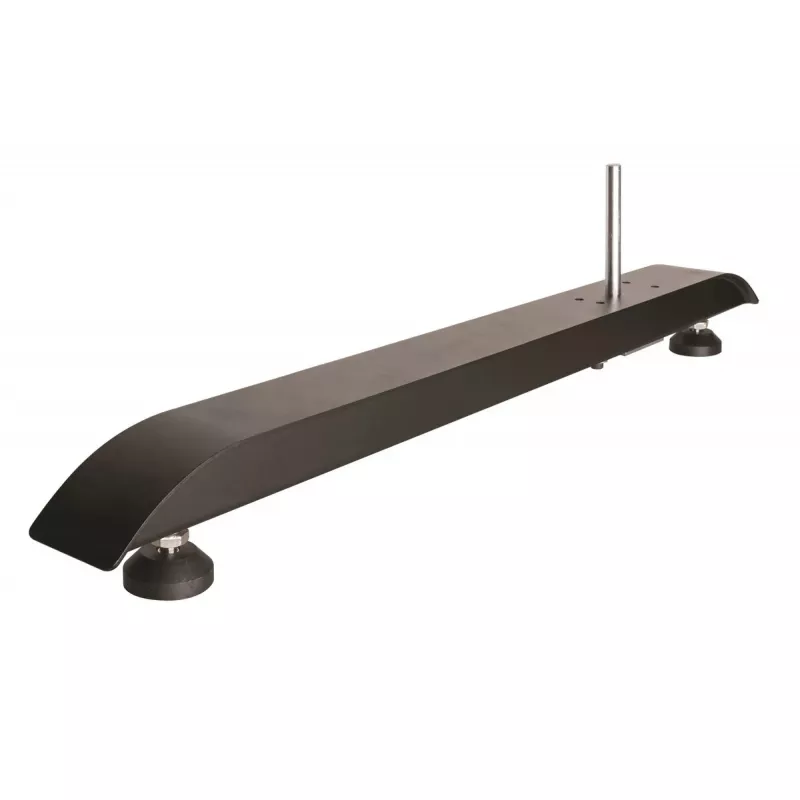

The B-Tech System X Floor Stand BT8380 Black Metal Base (86mm width, 950mm depth) attaches directly to BT8380 vertical support columns to form a stable foundation for freestanding or mobile screen mounting. The base is made of metal with a black finish and includes height adjustment. It is supplied as an individual unit and must be used one base per column. All mounting hardware is included.

Advantages

The sturdy metal construction provides stability and long-term durability while the zinc-plated support stems allow quick and secure attachment to System X vertical columns. Adjustable levelling feet enable precise post-installation alignment, and the feet can be removed and replaced with optional BT8380-CASTORS to convert the stand into a mobile solution. The product is supplied ready for installation and fits aesthetic requirements for public and corporate spaces.

Suitable for

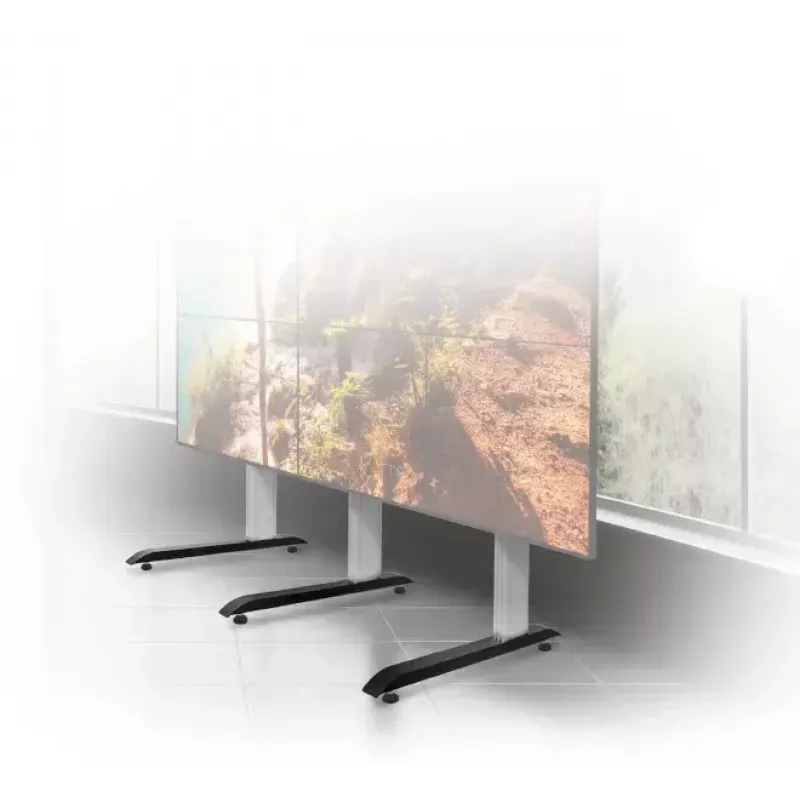

• Freestanding displays and screens

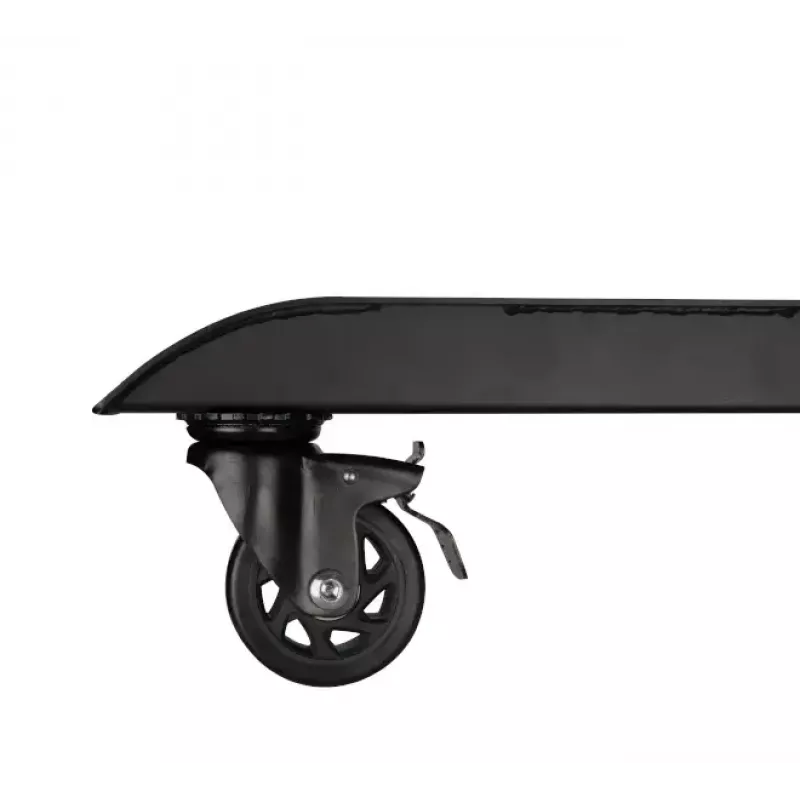

• Mobile screen solutions when fitted with BT8380-CASTORS
• Retail, corporate or exhibition environments
• Installations requiring precise height adjustment and levelling

Key specifications

• Model: BT8380-BASE/B (B-Tech System X)
• Material: Metal with black finish
• Width: 86 mm
• Depth: 950 mm
• Height (base): 107 mm
• Supplied: individual unit; master case weight 13.9 kg (2 units per master case)
• Includes: mounting hardware and adjustable levelling feet
• Optional accessories: BT8380-CASTORS (4" locking/braked castors), BT8380-FBFK floor base fixing kit

How to use

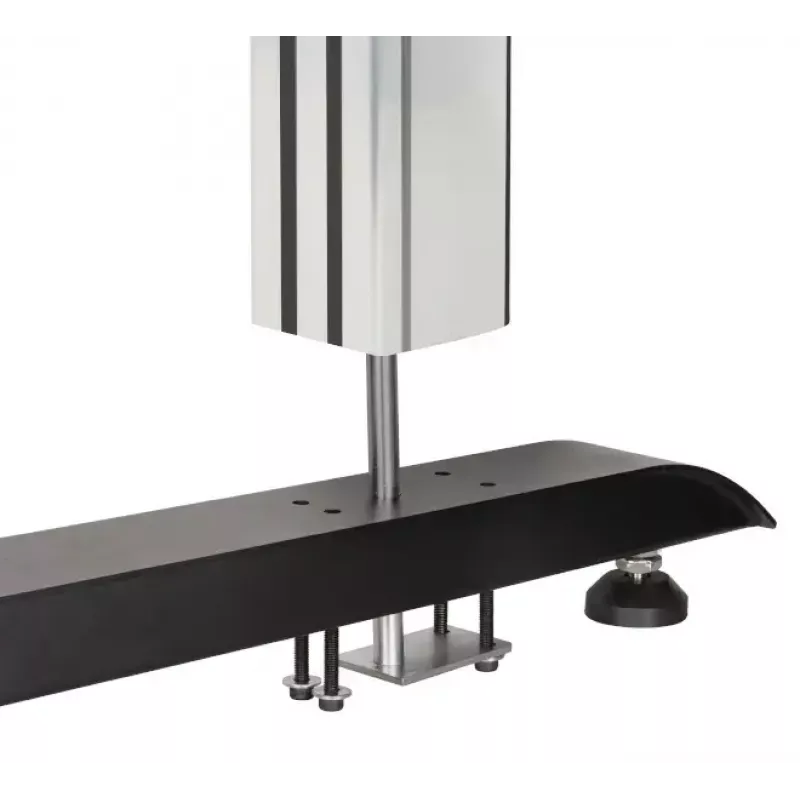

Attach the BT8380 base to the corresponding BT8380 vertical support column using the zinc-plated support stems and the supplied mounting hardware. Use the adjustable levelling feet to achieve a level installation; tighten all fixings after alignment. To create a mobile stand, remove the levelling feet and install BT8380-CASTORS (sold separately). For added security in freestanding installations, fix the base to the floor using the BT8380-FBFK floor base fixing kit (sold separately).

Recommendations

Inspect all components before installation, ensure the correct base is used for each column, and follow local safety and load-bearing guidelines when mounting screens. Use the specified optional accessories (castors or floor fixing kit) to meet mobility or security requirements.
