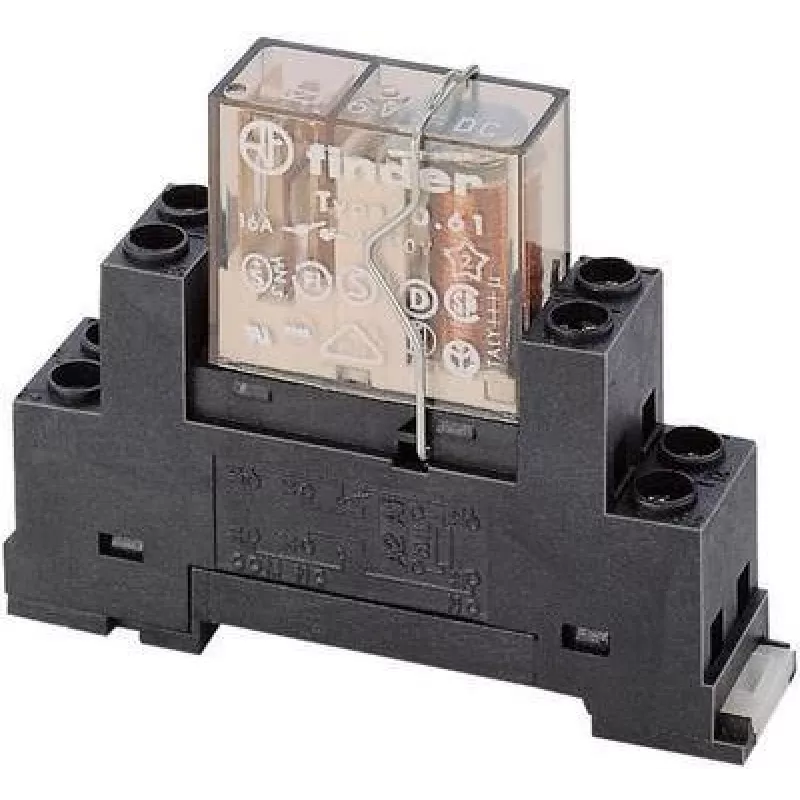

Base de relé Finder 95.65M com clipe de fixação para relés da série 65, 3 polos, 10 A, 250 V AC, terminais de parafuso, montagem em calha DIN/painel

Relay installations can become unreliable when sockets lack secure retention, leading to intermittent connections and downtime. The Finder 95.65M relay socket solves this by providing a robust base with an integrated metal retaining clip, ensuring the relay stays firmly in place even in high-vibration environments. Designed specifically for Finder 65 Series relays (such as 65.31 and 65.61), this 3-pole socket handles up to 10 A at 250 V AC, making it suitable for a wide range of industrial and commercial control applications.

Who is it for

This socket is ideal for panel builders, maintenance technicians, and OEMs who need a dependable mounting solution for Finder 65 Series relays. It is particularly valuable in applications where vibration or movement could dislodge a relay, such as in machinery, HVAC systems, and control cabinets.

Main features

• Integrated metal retaining clip for secure relay retention
• Compatible with Finder 65 Series relays (3-pole, 3 CO / 3PDT)
• Screw terminals for reliable, maintenance-friendly wiring
• Supports both 35 mm DIN rail and panel mounting
• Rated for 10 A / 250 V AC
• Wide operating temperature range: -40 to +70 °C
• Compact, durable polyamide housing (IP20)

Specifications

• Compatible relay series: Finder 65 Series
• Number of poles: 3-pole (3 CO / 3PDT)
• Terminal type: Screw terminals
• Mounting type: 35 mm DIN rail or panel mount
• Rated current: 10 A
• Rated voltage: 250 V AC
• Max. wire size (solid): 1 x 6 mm² / 2 x 2.5 mm²
• Max. wire size (stranded): 1 x 4 mm² / 2 x 2.5 mm²
• Stripping length: 8 mm
• Screw torque: 0.8 Nm
• Dielectric strength (coil-contacts): 6 kV AC (1 min)
• Dielectric strength (open contacts): 1 kV AC (1 min)
• Operating temperature range: -40 to +70 °C
• Protection degree: IP20
• Housing material: PA (Polyamide)
• Retaining clip type: Integrated metal retaining clip
• Approvals: CE, cURus, EAC, RINA, VDE
• Colour: Black

Tips

For optimal performance, ensure the relay is fully seated and the retaining clip is engaged before applying power. Use the recommended stripping length and torque settings to prevent loose connections. When mounting on a DIN rail, verify the rail is properly grounded according to local regulations.
