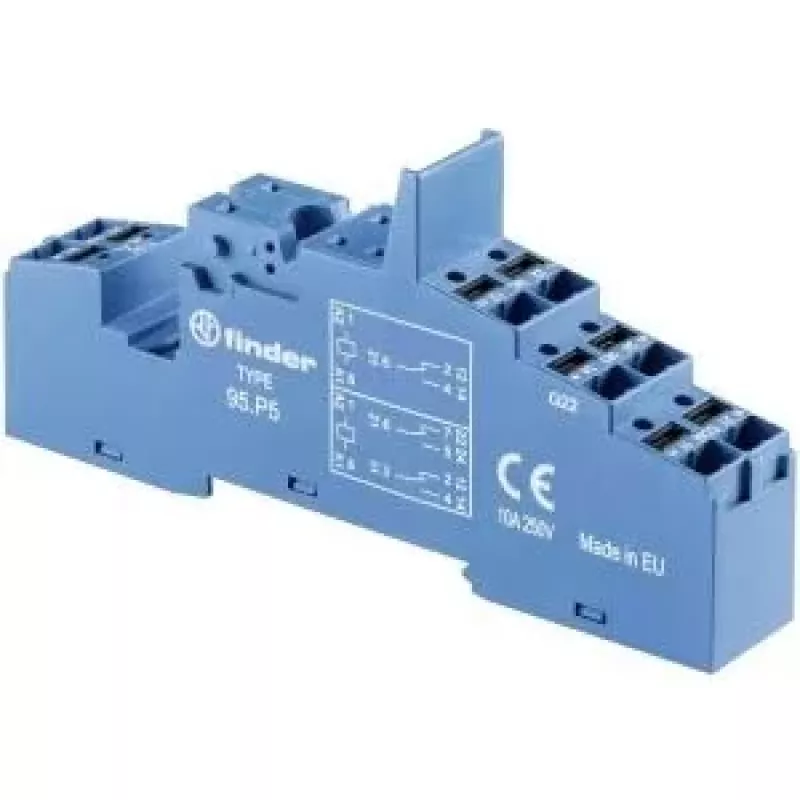

Base de relé Finder 95.P5, ligação por parafuso, 8 polos, montagem em calha DIN

The Finder 95.P5 relay socket is a high-quality screw terminal socket designed for industrial and building automation applications. It accommodates Finder 40 series relays and provides reliable electrical connections with a rated voltage of 250 V and rated current of 10 A. The socket features an 8-pin configuration and supports both DIN rail and panel mounting, making it versatile for various control panels and junction boxes.

Advantages

Robust screw terminals ensure secure wire connections, while the compact design saves space on the DIN rail. The socket offers high dielectric strength (6 kV) for enhanced safety and operates reliably in extreme temperatures from -40 to +70 °C. Its thermoplastic housing provides durability and long service life.

Suitable for

• Industrial control systems
• Building automation (HVAC, lighting)
• Relay switching applications
• Panel and cabinet wiring

Key specifications

• Socket type: Screw terminal
• Number of pins: 8
• Rated voltage: 250 V
• Rated current: 10 A
• Mounting: DIN rail (EN 60715) / panel mount
• Protection category: IP20
• Wire size: 1 x 2.5 mm² solid / 2 x 1.5 mm² stranded
• Stripping length: 8 mm
• Screw torque: 0.5 Nm
• Ambient temperature: -40 to +70 °C
• Approvals: CE, cURus

Recommendations

For optimal performance, use with Finder 40.51, 40.52, 40.61, 40.P1, 40.P2, or 40.P6 relays. Ensure proper wire stripping and torque settings as specified.
