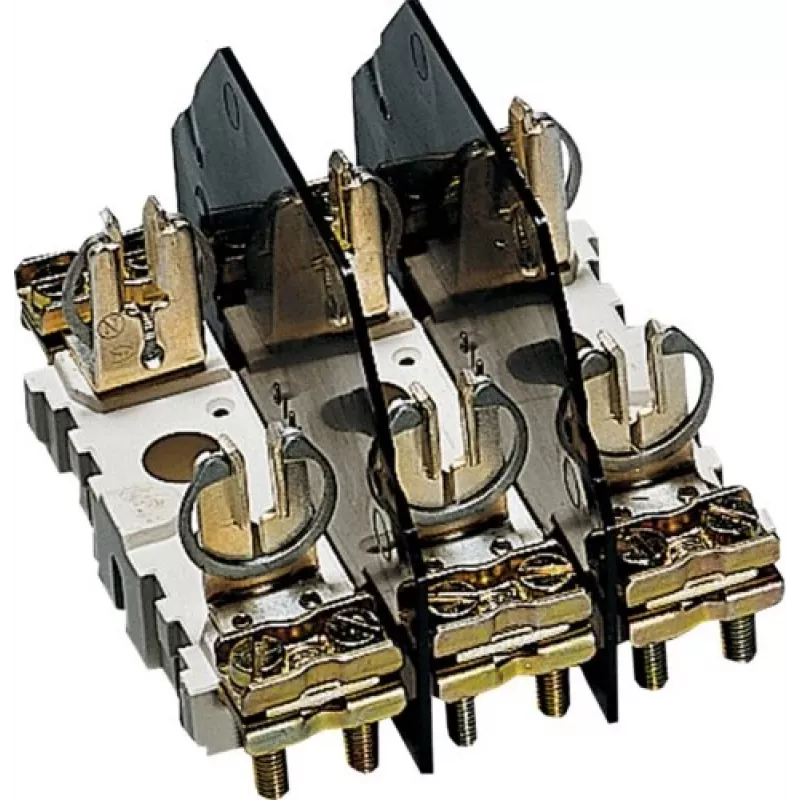

Base seccionadora de fusíveis Hager NH00, 3 polos, 160 A, 690 V AC, terminais de parafuso, cinzento

NH00 fuse switch disconnector base for 3-pole NH00 fuse links up to 160 A. Rated operational voltage 690 V AC, rated insulation voltage 1000 V, impulse withstand 8 kV. Screw terminals accept rigid conductors 10–95 mm² and flexible conductors 10–70 mm². Base plate mounting, insulating material housing, IP20 on front side. Complies with IEC 60269-2.

Advantages

High current rating and robust screw connections ensure reliable power distribution in industrial and commercial installations. The insulating enclosure provides safe handling, while the compact NH00 size allows dense panel layouts.

Suitable for

• Low-voltage distribution boards
• Motor control centers
• Industrial switchgear
• Building electrical installations

Key specifications

• Fuse size: NH00
• Number of poles: 3
• Rated current: 160 A
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 1000 V
• Rated impulse withstand voltage: 8 kV
• Connection: screw terminals
• Terminal capacity rigid: 10–95 mm²
• Terminal capacity flexible: 10–70 mm²
• Mounting: base plate
• Material: insulating material
• Degree of protection: IP20 (front side)
• Standard: IEC 60269-2

Recommendations

Use with NH00 fuse links rated up to 160 A. Ensure proper torque on screw terminals for secure connections.
