Base Triton 800x1000 NOVO 1x filtro

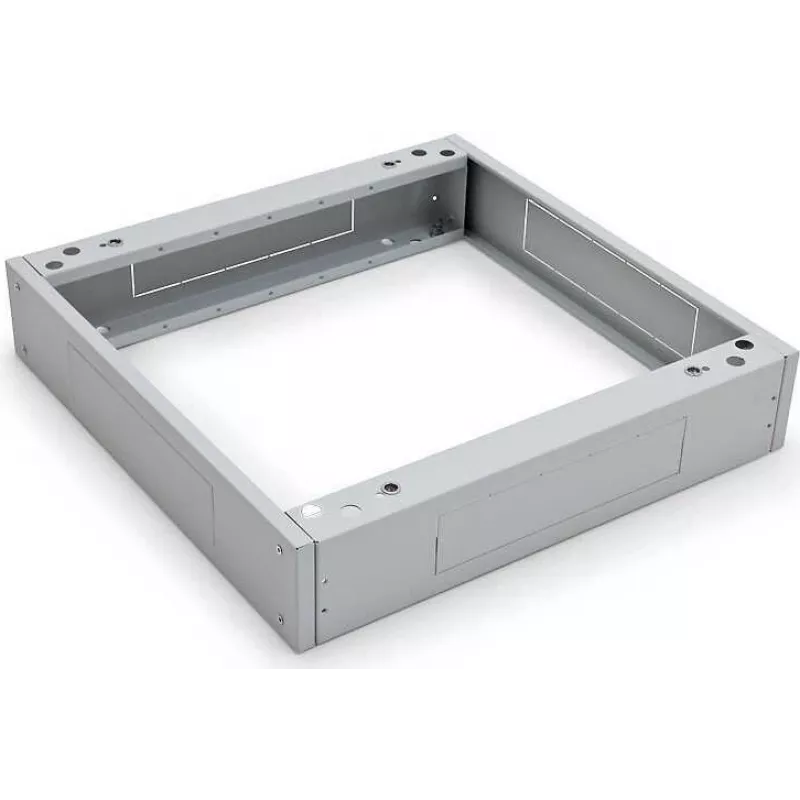

The Triton Plinth 800x1000 NEW 1x filter is a universal base for free-standing racks, compatible with both older and newer rack designs. It is supplied flat-packed for direct assembly onto the rack and includes one filter panel; an additional filter panel can be ordered separately. The plinth is designed to support up to 400 kg and measures 800 x 1000 x 120 mm in a grey finish.

Advantages

The construction uses two side profiles sized to match rack depth and two cover panels at the front and back with matching width, providing a neat fit and cable entry management. The kit includes parts that allow simple cable access and basic dust protection via the supplied filter panel. Supplied flat-packed for easier transport and on-site assembly.

Suitable for

• Free-standing server and network racks (old and new models)
• Data centre and server room installations
• Telecom and IT equipment enclosures requiring plinth support and cable entry

Key specifications

• Brand: Triton
• Model / MPN: RAC-PO-X81-XD
• Dimensions (W x D x H): 800 x 1000 x 120 mm
• Maximum weight capacity: 400 kg
• Colour: Grey
• Filter: 1 x front/back cover panel with filter (one additional filter panel available separately)
• Package contents: 2 x side base profiles with cable entry (breakout-style blanking), 2 x front/back cable entry cover panels (breakout-style blanking), 1 x front/back cover panel with filter, 1 x brush/jointing material
• Delivery form: Flat pack for assembly onto rack

How to use

Unpack the flat pack and identify the two side profiles and the cover panels. Fit the side profiles to the rack base so that the cable entry areas align with rack cabling routes, then attach the front and rear cover panels. Insert the supplied filter panel in the designated cover position. Use the brush and jointing material to seal gaps around the plinth base where required. Follow standard rack-assembly safety procedures and secure the plinth to the rack per rack manufacturer guidance.

Recommendations

Fit the plinth prior to installing heavy equipment to ensure stable support; if additional dust protection is needed, order the second filter cover panel as a replacement for the plain cover panel.
