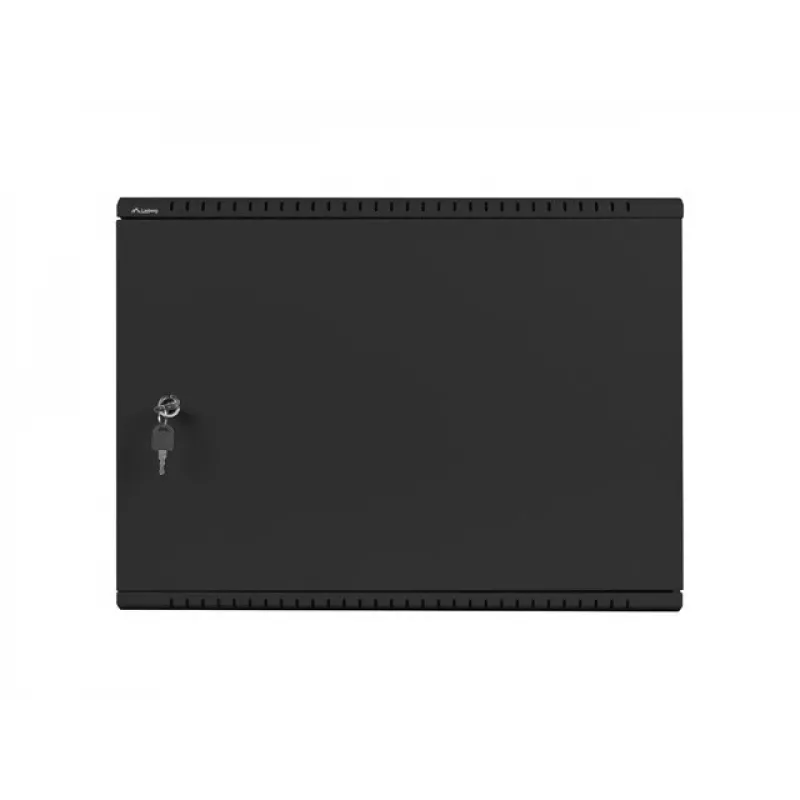

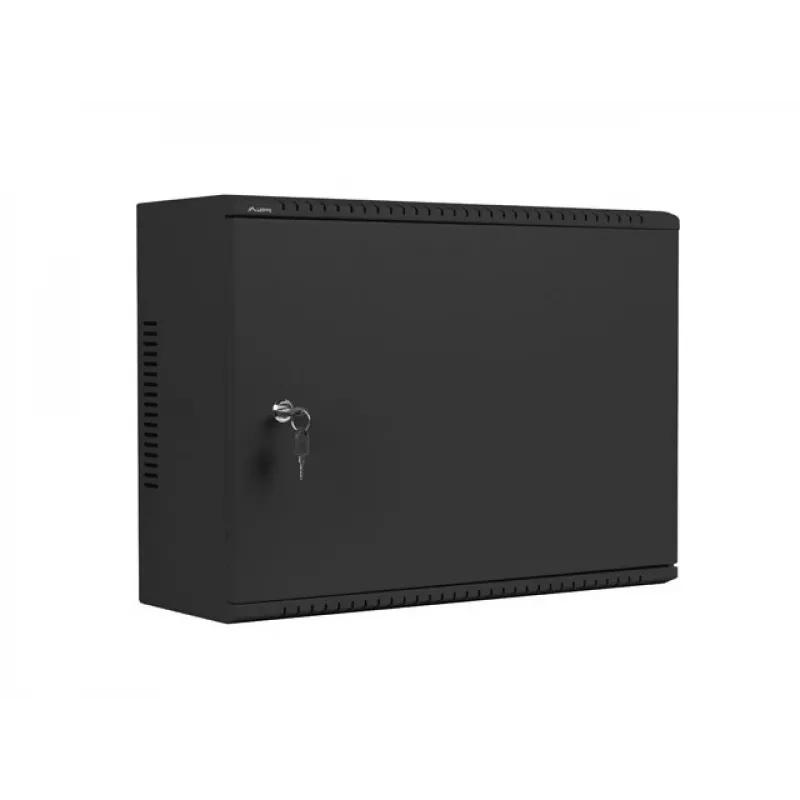

Bastidor de parede Lanberg WAF1-5203-04-00B 4U preto

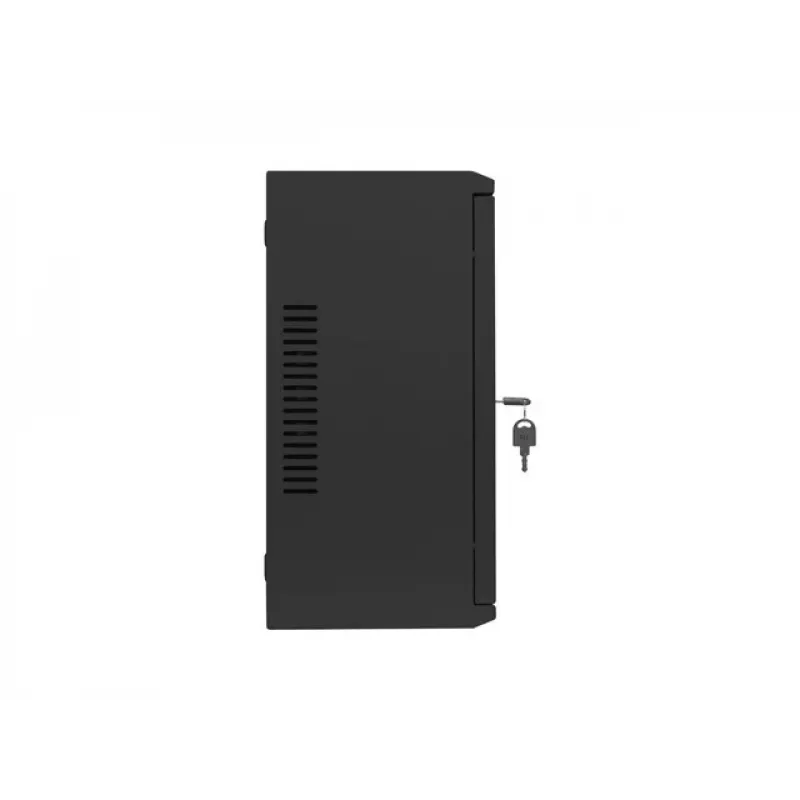

Lanberg WAF1-5203-04-00B is a 4U wall-mounted 19" rack cabinet designed for secure and compact housing of low-current and IT equipment. The black cabinet supports up to 60 kg, has IP20 protection, and includes rack rails, a key lock and preinstalled accessories such as a DIN rail, grounding cable and mounting anchors. Its compact dimensions and ventilation openings make it suitable for CCTV installations, PoE switches, DVRs and other network devices.

Advantages

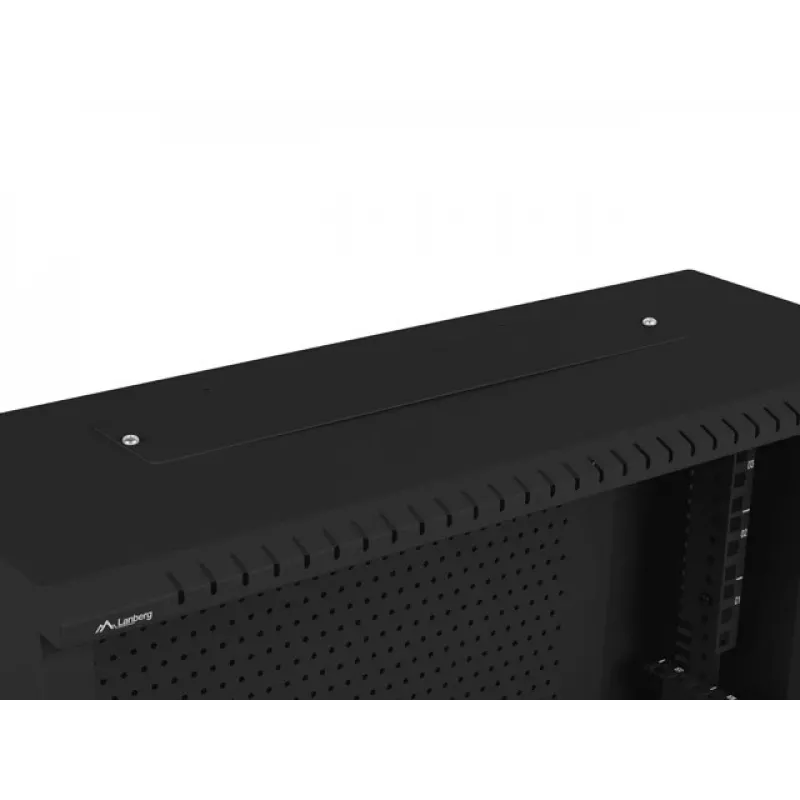

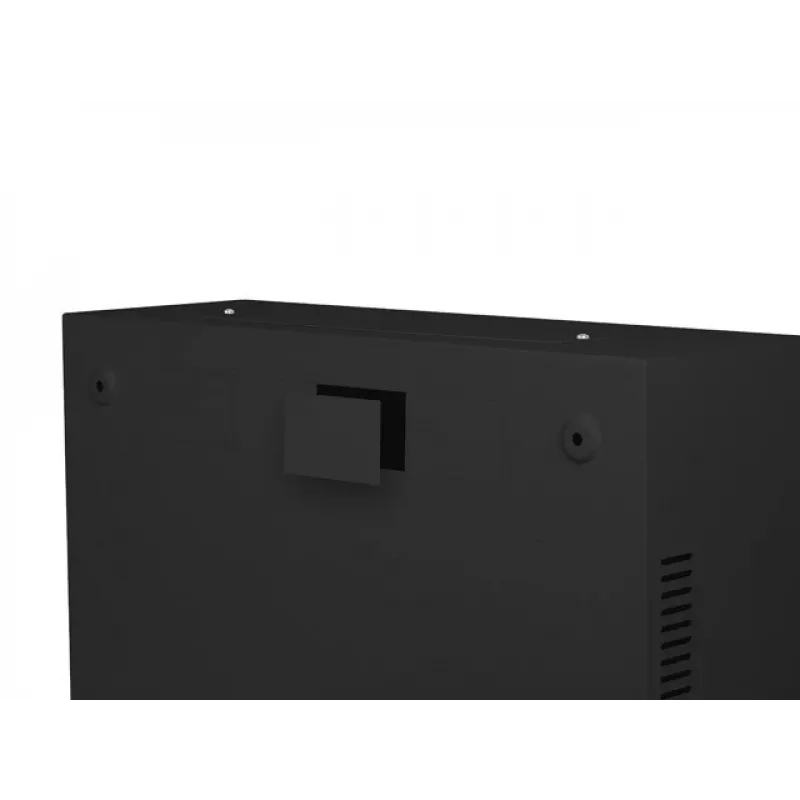

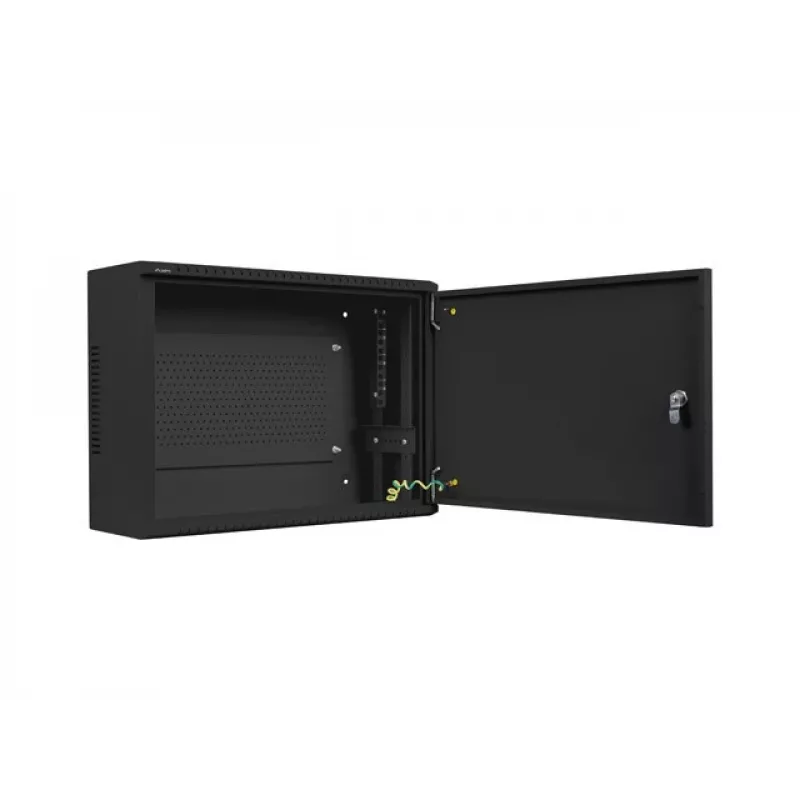

The wall-mounted WAF1 cabinet is delivered pre-assembled and ready for immediate installation, saving time on setup. Its compact and discreet design allows installation in limited spaces while maintaining organized cable routing and equipment placement. Double-sided opening doors and a mesh rear panel simplify maintenance and secure attachment of components. Ventilation holes and cable openings in the top and bottom panels provide airflow and tidy cable management.

Suitable for

• CCTV systems (DVR/NVR and PoE switches)
• Small network deployments and patching points
• DIN-rail devices and low-current installations
• Office or retail equipment closets with limited space

Key specifications

• Rack capacity: 4U
• Mounting depth (max): 143 mm
• External dimensions (H × W × D): 400 × 540 × 200 mm
• Weight: 9.3 kg
• Maximum load capacity: 60 kg
• Protection rating: IP20
• Colour: Black

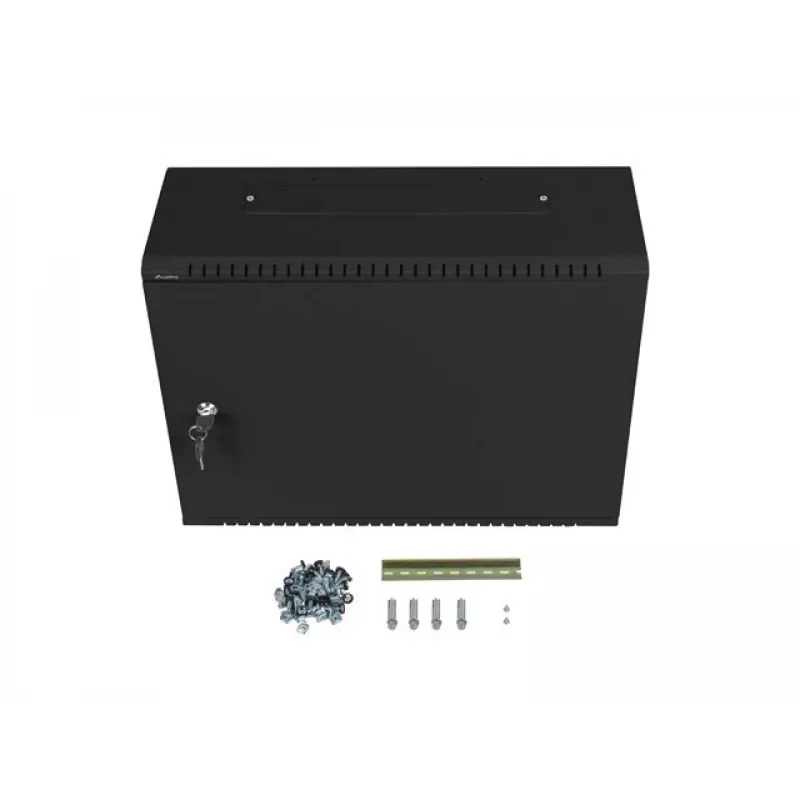

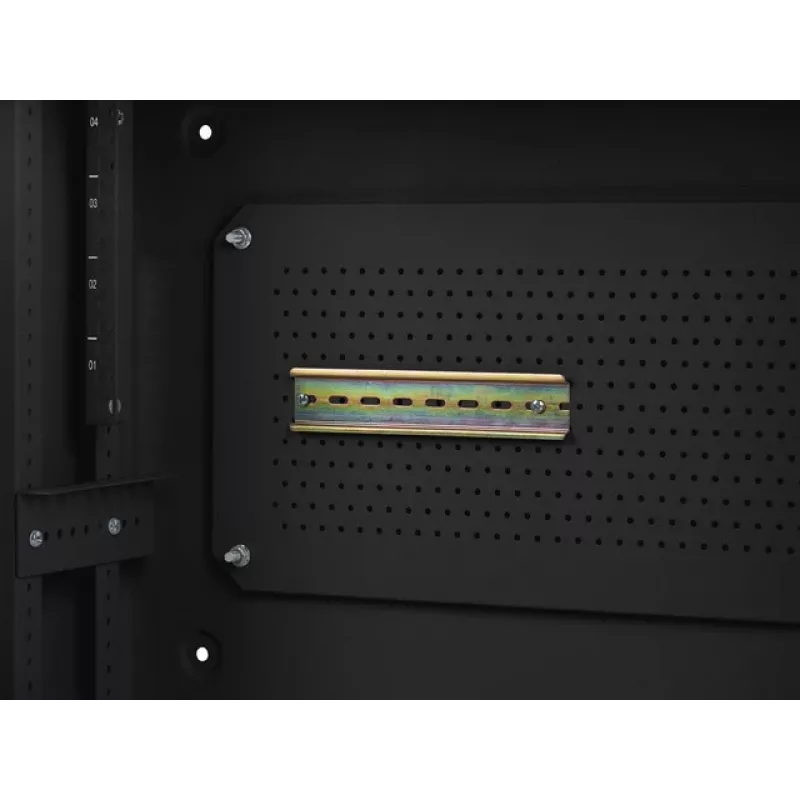

• Included accessories: rack rails, DIN rail, grounding cable, mounting anchors, M4/M6 screws

How to use

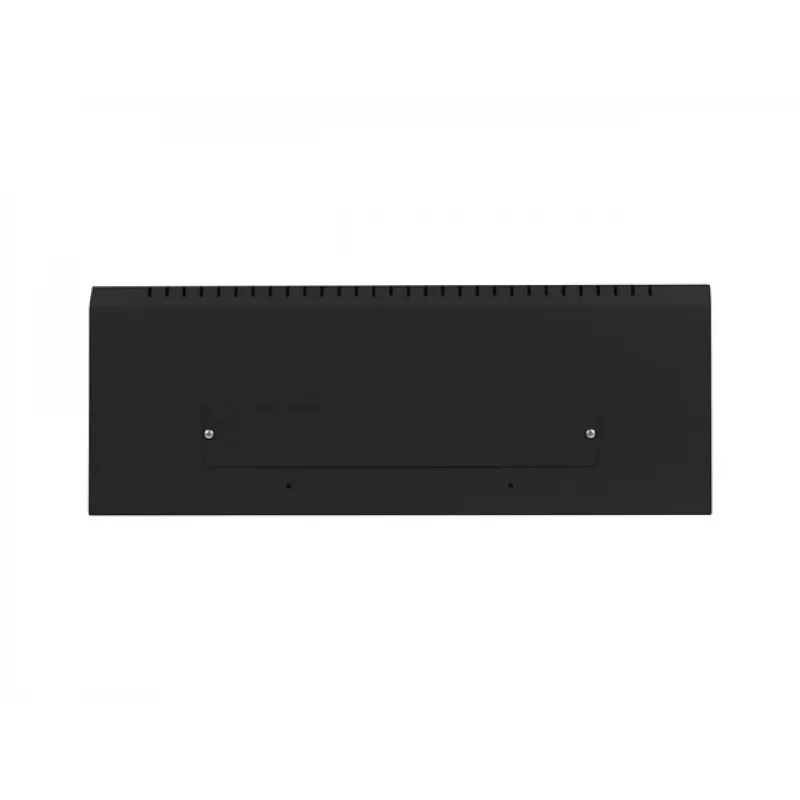

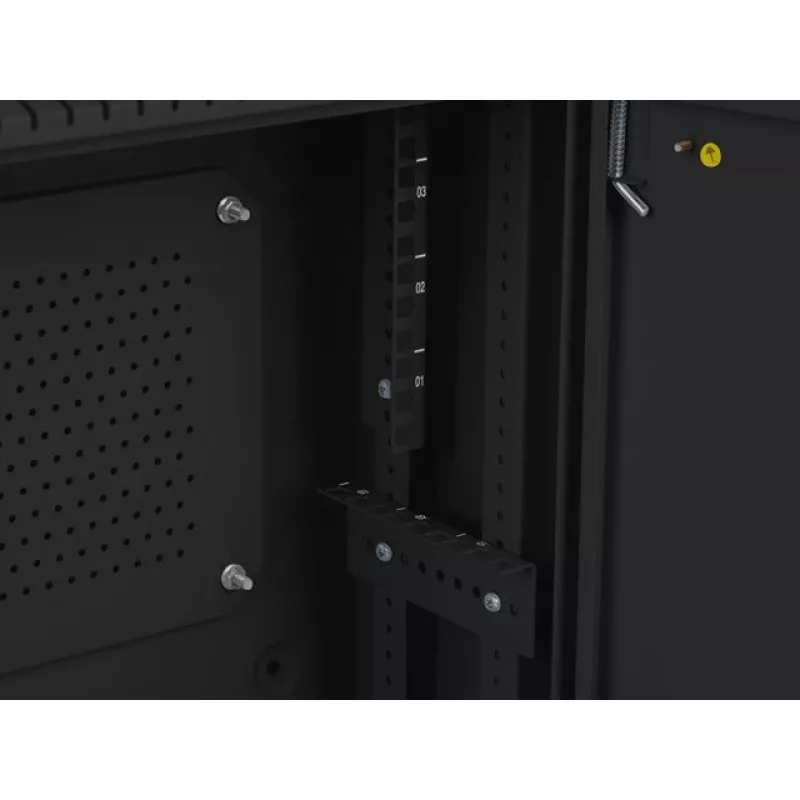

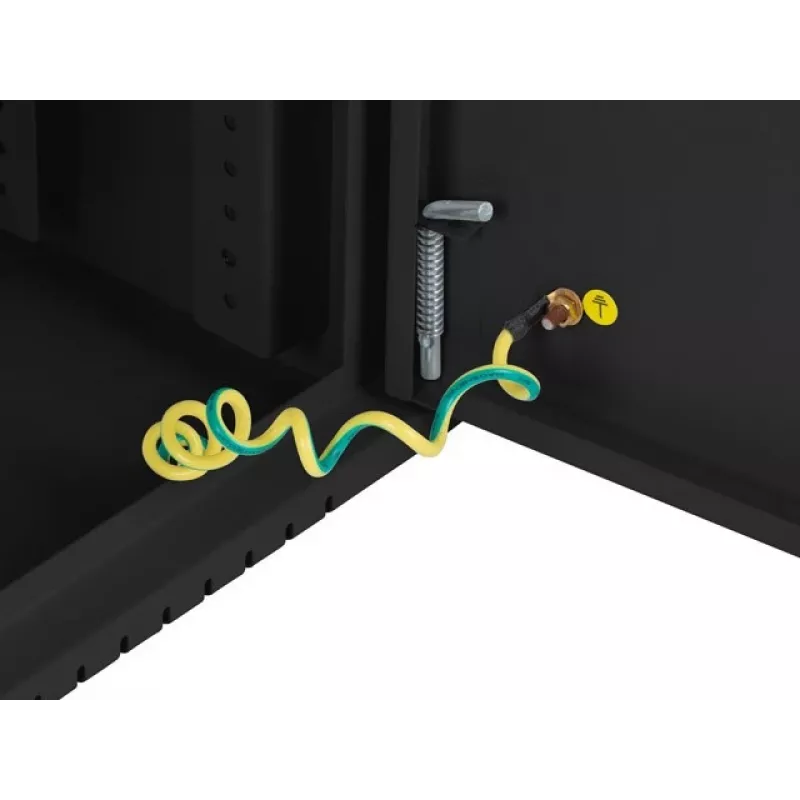

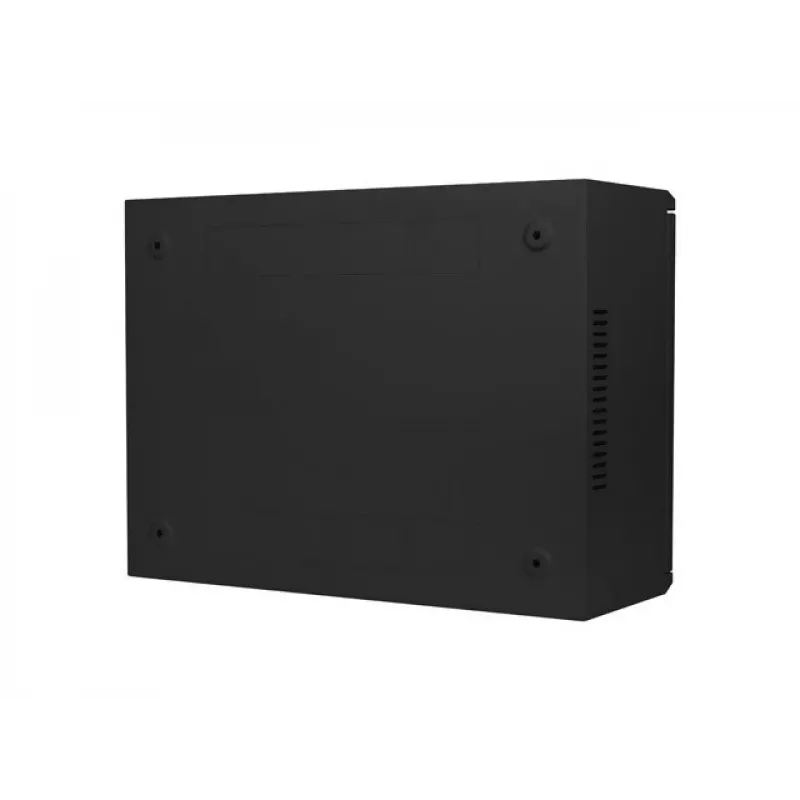

Secure the cabinet to a suitable wall using the four provided wall fixing points and appropriate wall plugs for your surface. Install rack equipment on the 4U rails either vertically or horizontally and fasten devices using the included M4/M6 screws. Route cables through the removable openings in the top or bottom panels and use the back-panel grommets for additional cable entry. Connect grounding using the supplied grounding cable and ensure ventilation clearances are maintained.

Recommendations

Place the cabinet in a dry, well-ventilated location and avoid blocking ventilation holes. For wall mounting use appropriate fixings for the wall material and verify the wall can support the cabinet and its maximum load of 60 kg. Use cable management panels (such as a brush panel) in the top/bottom openings to reduce dust ingress and improve cable organization.
