BCS BASIC BCS-B-STIP/BTIP(2.0) caixa de junção

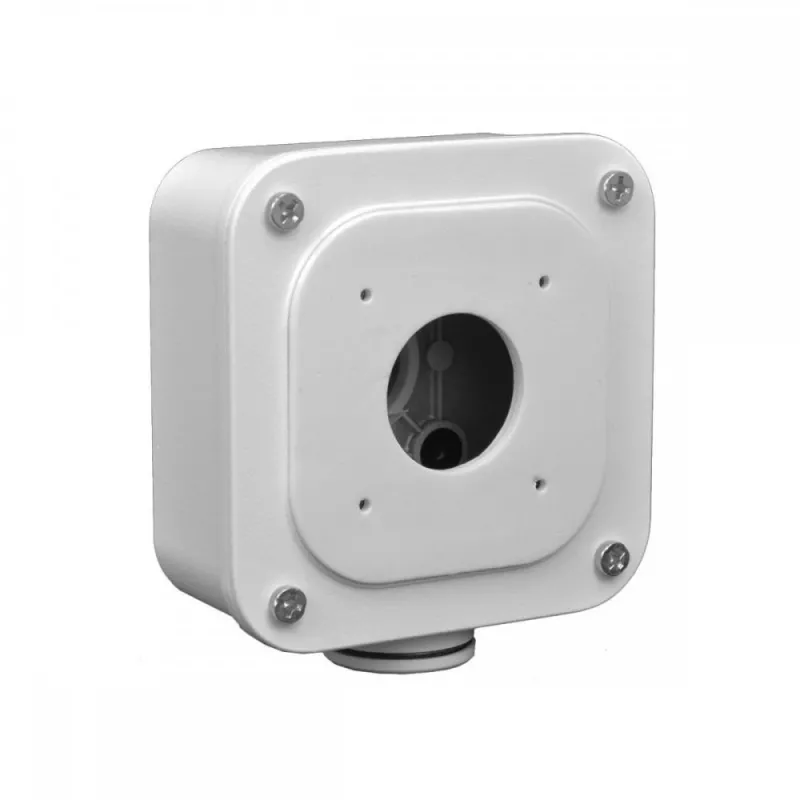

The BCS BASIC BCS-B-STIP/BTIP(2.0) is a mounting junction box designed for BCS-B-TIP series bullet cameras. It features a white aluminium construction and supports wall or ceiling installation.

Key features

• Mounting box for BCS-B-TIP series bullet cameras
• White aluminium housing
• Wall or ceiling mount
• Maximum load: 1 kg
• Thread: G3/4''
• Gland thread: 3/4''
• IP66 ingress protection
• Operating conditions: -40°C to +60°C, max 90% RH

Specifications

• Brand: BCS
• MPN: B-STIP/BTIP(2.0)
• Product line: BCS BASIC
• Device type: Mounting box
• Housing colour: White
• Material: Aluminium
• Mounting: Wall, ceiling
• Max load: 1 kg
• Thread: G3/4''
• Gland thread: 3/4''
• IP rating: IP66
• Operating conditions: -40°C~+60°C max 90% RH
• Dimensions: 93×93×39 mm
• Weight: 0.2 kg
