BCS BCS-UTP-KVM-4K(2) Extensor KVM 4K 60m

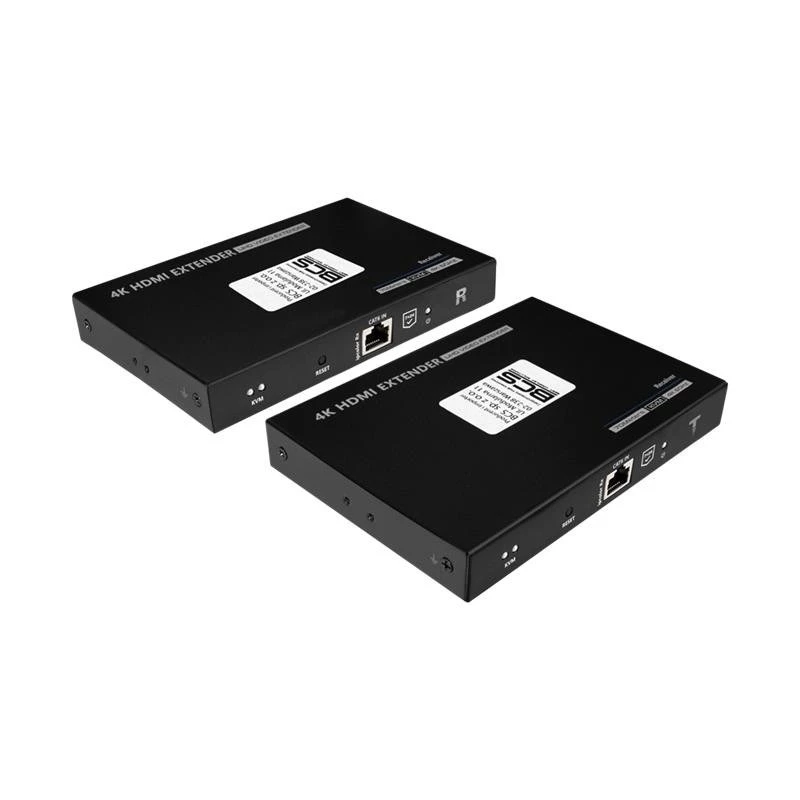

The BCS BCS-UTP-KVM-4K(2) is a high-performance KVM extender that transmits video, audio, and USB signals up to 60 meters over a single Cat5e/Cat6/Cat6a UTP cable. Supporting resolutions up to 4K (3840x2160) at 30Hz, it is ideal for extending a workstation or controlling a remote computer from a distance.

Advantages

This extender offers reliable, low-latency extension of HDMI video and USB 2.0 peripherals, making it perfect for digital signage, security monitoring, or any application where the computer must be located away from the user. The metal casing ensures durability, and the plug-and-play design requires no software installation.

Suitable for

• Extending a computer workstation to a remote desk or control room
• Digital signage and information displays
• Security and surveillance systems
• Education and training environments

Key specifications

• Transmission Technology: UTP (Cat5e/Cat6/Cat6a)
• Max Resolution: 3840x2160 @ 30Hz
• Max Distance: 60 meters
• Video Input (Sender): 1x HDMI Type A Female
• Video Output (Receiver): 1x HDMI Type A Female
• USB Ports (Receiver): 2x USB 2.0 Type A Female
• USB Input (Sender): 1x USB 2.0 Type B Female
• HDMI Standard: HDMI 1.4
• HDCP Support: HDCP 1.4
• Power Supply: DC 5V/1A (2 adapters included)
• Casing Material: Metal
• Unit Dimensions (each): 70 x 60 x 20 mm
• Unit Weight (each): 120g

Recommendations

For best performance, use high-quality Cat6 or Cat6a cables. Ensure the total cable length does not exceed 60 meters. This extender is compatible with HDMI 1.4 sources and displays.
