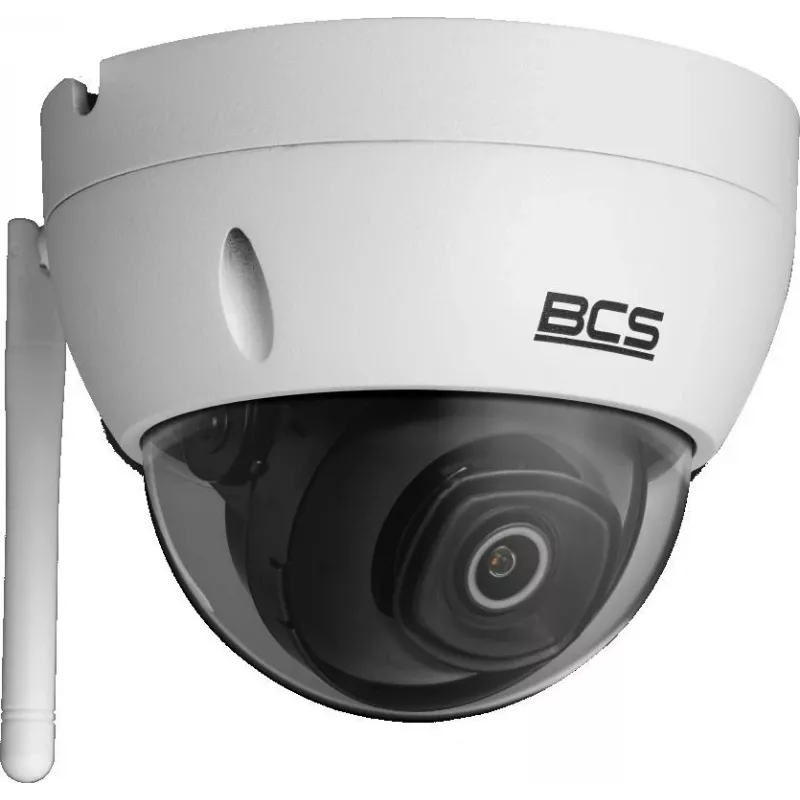

BCS Câmara IP dome 4MP BCS-L-DIP14FSR3-W

The BCS-L-DIP14FSR3-W is a high-performance 4MP IP dome camera designed for professional surveillance. Featuring a 1/3" Progressive Scan CMOS sensor, it delivers crisp 2560x1440 resolution at 25/30 fps. With 120dB True WDR, built-in microphone, and smart analytics (intrusion, tripwire, motion detection), it ensures reliable monitoring in challenging conditions. The camera supports H.265+ compression for efficient bandwidth usage and offers dual power options (DC 12V / PoE). Its IP67 and IK10 ratings guarantee durability against weather and vandalism.

Advantages

Exceptional image quality with 4MP resolution and 120dB WDR for clear footage in high-contrast scenes. Smart analytics reduce false alarms, while H.265+ saves storage space. The built-in microphone adds audio surveillance capability. Rugged IP67/IK10 design ensures long-term reliability outdoors.

Suitable for

• Perimeter monitoring of buildings and facilities
• Retail stores, warehouses, and parking lots
• Outdoor areas requiring vandal-resistant cameras
• Integration with ONVIF-compatible NVRs and VMS

Key specifications

• Sensor: 1/3" 4MP Progressive Scan CMOS
• Resolution: 2560x1440 (4MP)
• Lens: 2.8mm fixed, F1.6, 98° H-FOV
• IR Range: Up to 30m
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• WDR: 120dB True WDR
• Audio: Built-in microphone
• Network: 1x RJ-45 10/100Mbps
• Power: DC 12V / PoE (802.3af), max 5.5W
• Storage: Micro SD slot up to 256GB
• Protection: IP67, IK10
• Operating Temp: -30°C to +60°C
• Smart Features: Intrusion, Tripwire, Motion Detection
• ONVIF: Profile S/G/T

Recommendations

For optimal performance, use a PoE switch or injector (802.3af) and a micro SD card for local recording. Ensure proper mounting height for best coverage.
