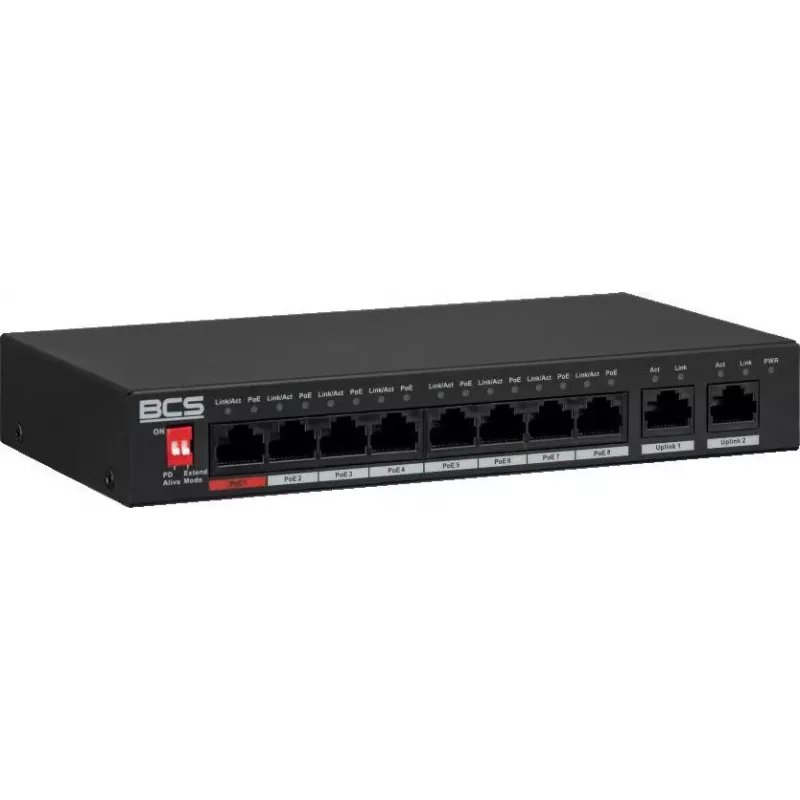

BCS LINE BCS-L-SP0802G(2) Switch PoE+ 8 Portas com 2 Portas Uplink Gigabit, 120W

The BCS LINE BCS-L-SP0802G(2) is a high-performance 8-port PoE+ switch designed for small to medium-sized networks. It provides reliable power and data transmission for PoE devices such as IP cameras, VoIP phones, and wireless access points. With a total PoE budget of 120W and support for IEEE 802.3af/at, it delivers up to 30W per port. The two Gigabit uplink ports ensure fast connectivity to the core network. This desktop switch features VLAN, QoS, and Extend Mode for long-distance transmission up to 250m.

Advantages

Cost-effective solution for powering and connecting multiple PoE devices. Easy plug-and-play installation with no configuration required. Energy-efficient design reduces power consumption. Extend Mode allows PoE transmission up to 250m, ideal for surveillance cameras in large areas.

Suitable for

• IP surveillance systems
• VoIP phone networks
• Wireless access point deployments
• Small office/home office (SOHO) networks

Key specifications

• 8 PoE ports (10/100 Mbps) with IEEE 802.3af/at support
• 2 Gigabit uplink ports (10/100/1000 Mbps)
• Total PoE power budget: 120W (up to 30W per port)
• Switching capacity: 5.6 Gbps
• Packet forwarding rate: 4.17 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 1536 bytes
• Internal power supply: AC 100-240V, 50/60Hz
• Operating temperature: -10°C to 55°C
• Desktop mounting

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The switch supports VLAN and QoS for traffic management. Extend Mode is recommended for distances up to 250m at reduced speed.
