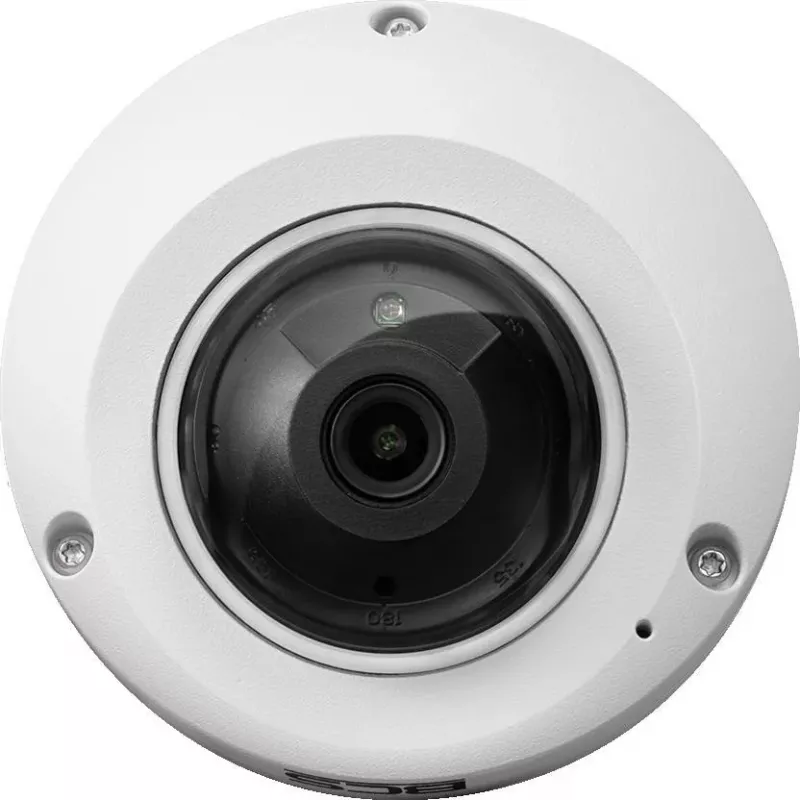

BCS-P-DMIP28FSR3 Câmara IP Dome 8MP, 2.8mm, IR 30m, PoE, IP67, IK10

The BCS-P-DMIP28FSR3 is a high-performance 8 Megapixel IP dome camera designed for professional surveillance. Featuring a 1/2.8" Progressive Scan CMOS sensor, it delivers crisp 3840x2160 resolution at 20 fps. With a 2.8mm fixed lens providing a 108° horizontal field of view, this camera is ideal for wide-area monitoring. Built-in IR LEDs offer up to 30m night vision, while True 120dB WDR and 3D DNR ensure clear images in challenging light conditions. The camera supports H.265+ compression for efficient bandwidth and storage, and includes a built-in microphone for audio capture. Its metal housing with IP67 and IK10 ratings guarantees durability in outdoor and vandal-prone environments. Power via 12V DC or PoE (802.3af) simplifies installation.

Advantages

Exceptional 8MP resolution with high-efficiency H.265+ compression reduces storage costs. True WDR and 3D DNR deliver clear footage in high-contrast and low-light scenes. Rugged IP67 weatherproof and IK10 vandal-resistant design ensures reliable operation in harsh conditions. Flexible power options (12V DC or PoE) and built-in microphone add versatility.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics facilities
• Parking lots and perimeter surveillance
• Schools and public institutions

Key specifications

• Sensor: 1/2.8" Progressive Scan CMOS, 8 MP (3840x2160)
• Lens: 2.8mm fixed, FOV 108°
• IR Range: Up to 30m
• Video Compression: H.265+, H.265, H.264+, H.264
• Max Frame Rate: 20 fps at 8MP
• Audio: Built-in microphone
• Storage: MicroSD slot up to 256GB
• Network: 1x RJ-45 10/100 Mbps
• Power: 12V DC / PoE (802.3af), max 5.5W
• Protection: IP67, IK10
• WDR: 120 dB True WDR
• DNR: 3D DNR
• Smart Features: Motion detection, intrusion, tripwire
• Operating Temperature: -30°C to +60°C
• Housing Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is high endurance for continuous recording. Mount the camera in a location that maximizes the 108° field of view while avoiding direct sunlight on the lens.
