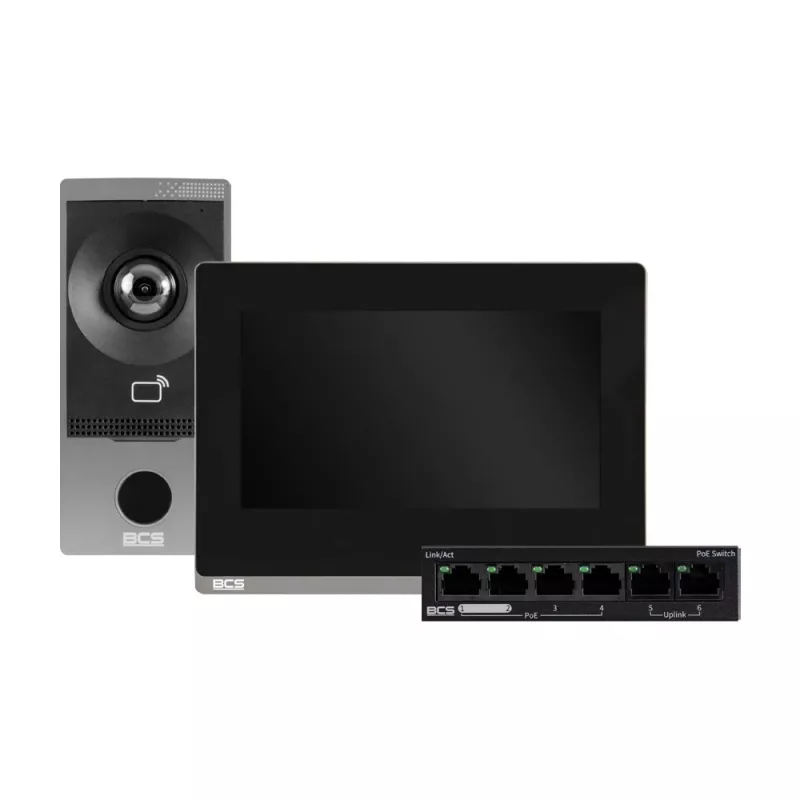

BCS-P-VIS01 Posto de videoporteiro RFID exterior IP65 com PIN, câmara grande angular 2MP, PoE, áudio bidirecional e proteção antivandalismo IK07

With a 120° wide-angle 2MP camera and IP65 weatherproofing, the BCS-P-VIS01 delivers clear identification even in harsh outdoor conditions. This surface-mount video intercom combines RFID and PIN access control with two-way audio, making it a robust solution for securing building entrances.

Overview

The BCS-P-VIS01 is a network-enabled video intercom station designed for outdoor access control. It features a 2-megapixel camera with a wide 120° horizontal viewing angle, ensuring visitors are captured clearly at the door. Night vision via IR LED extends visibility up to 3 meters in complete darkness. The integrated numeric keypad and Mifare RFID reader support both PIN and card-based entry, with a capacity for up to 10,000 cards. Two-way audio with echo cancellation allows natural conversation between visitor and resident. The unit is housed in a rugged aluminum alloy casing with IK07 vandal resistance and IP65 dust/water protection, suitable for temperatures from -30°C to +60°C. Power is supplied via PoE (802.3af) or 12V DC, and network connectivity is through a single RJ45 10/100Mbps port. Video compression uses H.264, and the device supports SIP and ONVIF protocols for integration with third-party systems.

What stands out

• 120° wide-angle 2MP camera captures a broad field of view
• Dual access methods: RFID (Mifare 13.56MHz) and PIN code
• Two-way audio with echo cancellation for clear communication
• IP65 and IK07 ratings ensure durability in outdoor and high-traffic environments
• PoE support simplifies installation with a single cable for power and data

Technical details

• Camera: 2MP (1080p), wide-angle lens, 120° horizontal field of view
• Night vision: IR LED up to 3m
• Audio: Two-way with built-in microphone and speaker, echo cancellation
• Access control: Mifare RFID (13.56MHz) and PIN keypad, up to 10,000 cards
• Network: 1x RJ45 10/100Mbps Ethernet
• Power: PoE (802.3af) or 12V DC
• Video compression: H.264
• Protocols: SIP, ONVIF
• Relay output: 1x door lock
• Alarm inputs: 2
• Ingress protection: IP65
• Vandal resistance: IK07
• Housing: Aluminum alloy
• Operating temperature: -30°C to +60°C
• Installation: Surface mount
• Event log capacity: Up to 100,000 events

Our verdict

The BCS-P-VIS01 is a rugged and feature-rich video intercom that excels in outdoor access control. Its wide-angle camera, dual authentication, and durable construction make it a reliable choice for securing building entrances in demanding environments.
