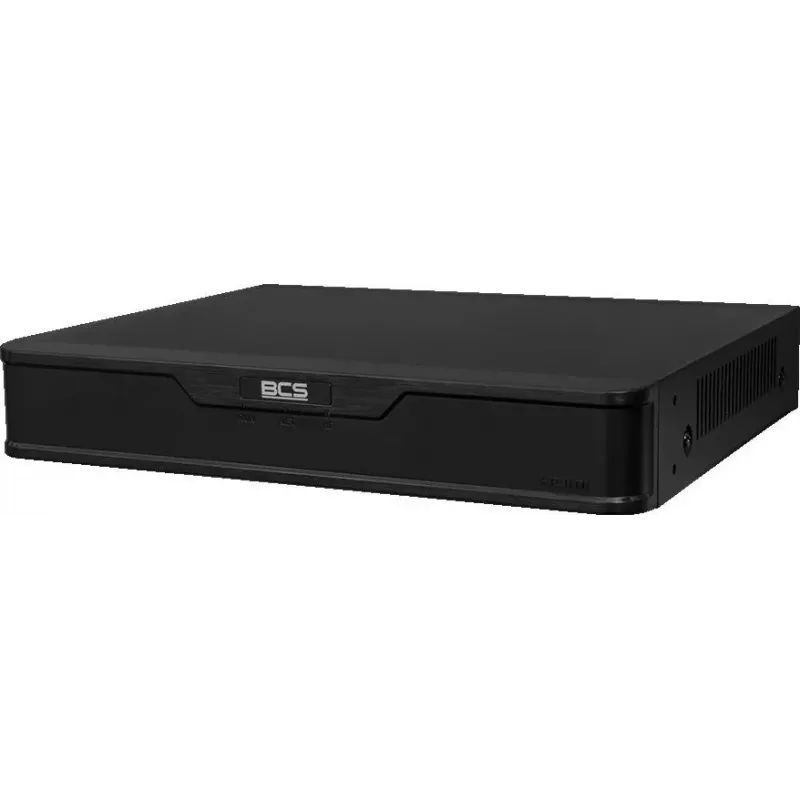

BCS POINT BCS-P-NVR1601 Gravador NVR 4K 16 Canais

The BCS POINT BCS-P-NVR1601 is a high-performance 16-channel network video recorder designed for professional IP surveillance systems. Supporting up to 8MP (4K) resolution and H.265+ compression, it delivers exceptional video quality while reducing bandwidth and storage requirements. Ideal for small to medium-sized businesses, this NVR offers reliable 24/7 recording, remote access via the BCS Manager app, and seamless integration with ONVIF-compliant cameras.

Advantages

With its embedded Linux operating system, the BCS-P-NVR1601 ensures stable and secure operation. The H.265+ codec saves up to 50% storage compared to H.264, while the 80 Mbps incoming bandwidth supports multiple high-resolution cameras. The unit features a single SATA interface supporting up to 8TB HDD, providing ample storage for extended recording. Two-way audio over IP enables real-time communication, and the HDMI/VGA outputs allow direct connection to a monitor.

Suitable for

• Retail stores and shops
• Office buildings
• Warehouses and logistics centers
• Educational institutions
• Residential complexes

Key specifications

• 16-channel video input
• Max recording resolution: 8MP (4K)
• Video compression: H.265+/H.265/H.264+/H.264
• Video outputs: 1x HDMI, 1x VGA
• Audio: 1x RCA in, 1x RCA out (2-way audio over IP)
• Network: 1x RJ-45 10/100/1000 Mbps
• HDD support: 1x SATA up to 8TB
• USB: 2x USB 2.0
• Max bandwidth: 80 Mbps incoming, 60 Mbps outgoing
• Decoding: 1ch@8MP(30fps) / 4ch@1080P(30fps)
• Synchronous playback: up to 16 channels
• Power supply: DC 12V / 2A
• ONVIF support: Profile S/T/G
• Recording modes: Manual, Schedule, Motion Detection, Alarm

Recommendations

For optimal performance, pair this NVR with BCS POINT IP cameras and use a high-quality CAT6 Ethernet cable. Ensure the HDD is rated for 24/7 surveillance use. The BCS Manager app is available for iOS and Android for remote monitoring.
