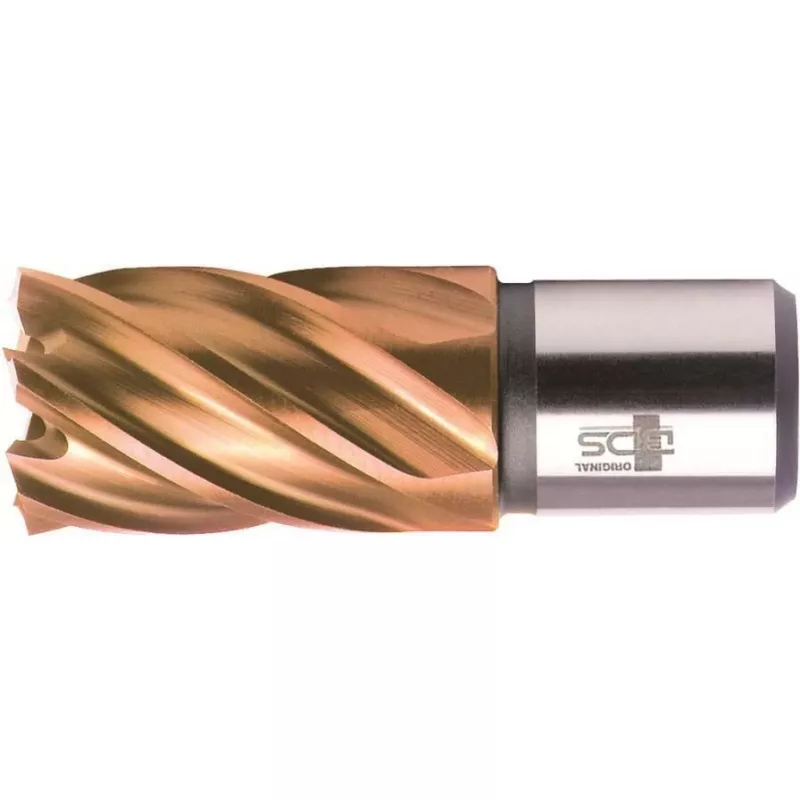

BDS Broca de coroa HSSVarioPLUS 17 mm, haste Weldon, 30 mm profundidade de corte KBK-VP017

For precise large-diameter holes in steel and structural metals, this BDS HSSVarioPLUS annular cutter with 17 mm cutting diameter and 30 mm cutting depth delivers clean, burr-free bores in a single pass. Its high-speed steel body and Weldon shank ensure reliable performance on magnetic drilling machines and drill presses.

Advantages

The HSSVarioPLUS series combines high-speed steel construction with a 19 mm Weldon shank for secure tool holding and efficient power transmission. Internal coolant capability keeps the cutting edge cool, extending tool life and improving hole quality. The core drilling method removes only a ring of material, reducing cutting forces and energy consumption compared to twist drills.

Suitable for

• Steel fabrication and structural steelwork
• Non-ferrous metal drilling
• Magnetic drilling machines with Weldon adapter
• Drill presses with 19 mm Weldon tool holder

Key specifications

• Cutting diameter: 17.0 mm
• Cutting depth: 30 mm
• Material: High-speed steel (HSS)
• Shank type: Weldon, 19 mm (3/4 inch)
• Overall length: 63 mm
• Tool type: Annular cutter
• Internal coolant: Yes

Recommendations

Use with a compatible magnetic drilling machine and appropriate cutting fluid for optimal results. For best performance, ensure the workpiece is securely clamped and the cutter is aligned perpendicular to the surface.
