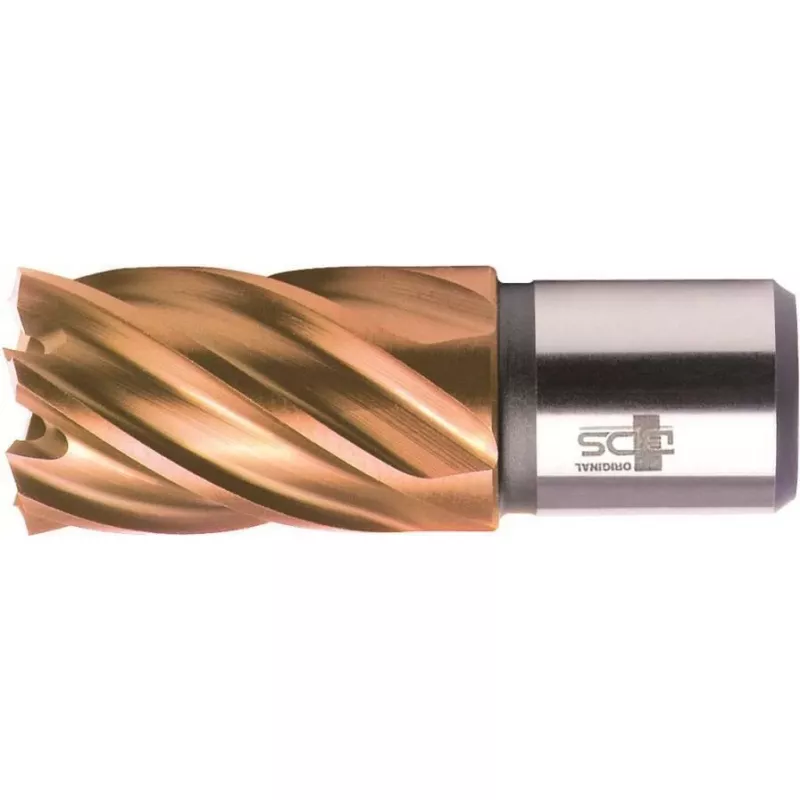

BDS broca de núcleo HSS VarioPLUS 20 mm diâmetro de corte, 30 mm profundidade de corte, haste Weldon KBK-VP020

Drilling large holes in steel and other metals can be slow and imprecise with standard twist drills. The BDS HSS VarioPLUS annular cutter solves this by removing only a ring of material, leaving a solid core, which reduces cutting time and extends tool life. This 20 mm cutter with a 30 mm cutting depth is engineered for magnetic core drilling machines and delivers clean, accurate holes in a variety of metals.

Who is it for

This annular cutter is ideal for metalworking professionals, fabricators, and maintenance technicians who need to drill precise, large-diameter holes in steel, stainless steel, cast iron, and non-ferrous metals. It is suited for use with magnetic core drilling machines in workshops, construction sites, and industrial settings.

Main features

• High-speed steel (HSS) construction for durability and heat resistance.
• Multi-cut geometry with 4 cutting edges for efficient chip removal and smooth cutting.
• Weldon shank (19.05 mm / 3/4 inch) for secure mounting in magnetic drills.
• Internal coolant supply for optimal cooling and lubrication during cutting.
• Uncoated surface for versatility across different materials.

Specifications

• Cutter type: Annular cutter
• Material: High-speed steel (HSS)
• Series: HSS-VarioPLUS
• Cutting diameter: 20.0 mm
• Cutting depth: 30 mm
• Shank type: Weldon shank
• Shank diameter: 19.05 mm (3/4 inch)
• Number of cutting edges: 4
• Recommended material: Steel, stainless steel, cast iron, non-ferrous metals
• Tool compatibility: Magnetic core drilling machines
• Coolant supply: Internal
• Surface treatment: Uncoated
• Overall length: 64 mm
• Core drill geometry: Multi-cut geometry
• Maximum tensile strength (material): Up to 900 N/mm²
• Standard: DIN 845

Tips

For best results, use a suitable cutting fluid and ensure the magnetic drill is securely attached to the workpiece. Apply steady, even pressure and avoid excessive force to prolong cutter life. Always follow the manufacturer's safety guidelines for metal drilling.
