World Class Quiet and EfficiencyStraight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.80 PLUS® PLATINUM CERTIFIEDHighly efficient operationStraight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rat... Ler mais

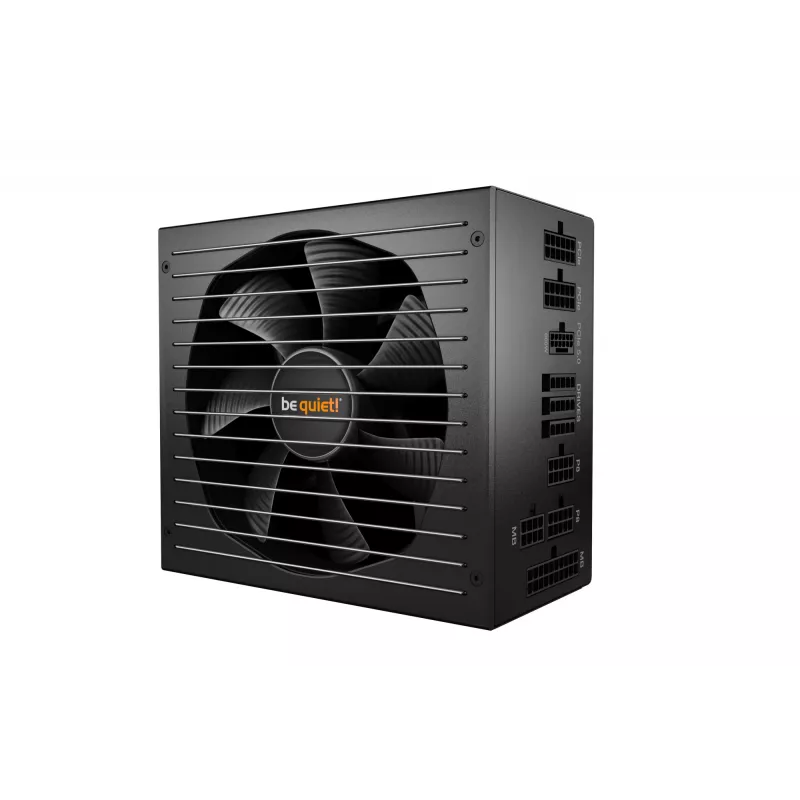

Straight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
80 PLUS® PLATINUM CERTIFIED Highly efficient operation Straight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM Fulfills all ATX 3.1 specifications Straight Power 12 1500W is an ATX 3.1 PSU and comes with both native integration of 12V-2x6 connectors for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER For massive transient loads Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

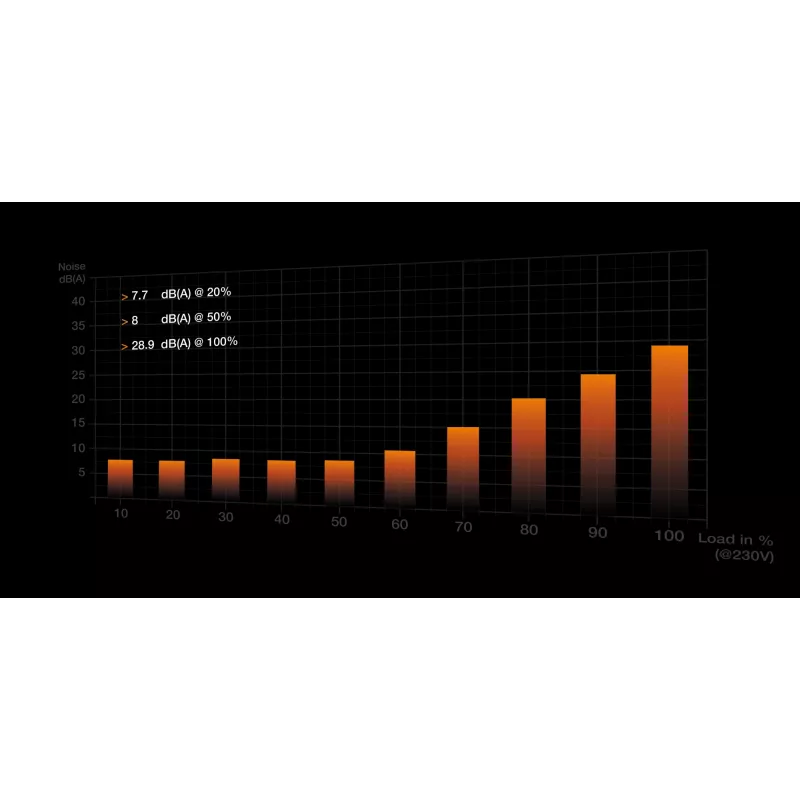

SILENT WINGS FAN Provides virtually inaudible operation The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.

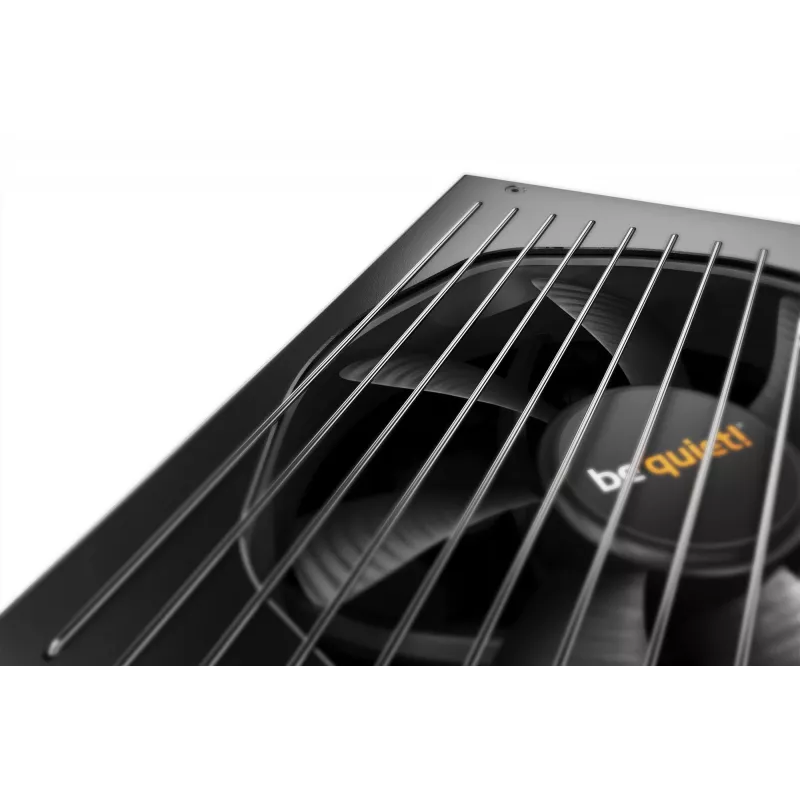

FLAWLESS COOLING CONCEPT For a longer lifespan The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.

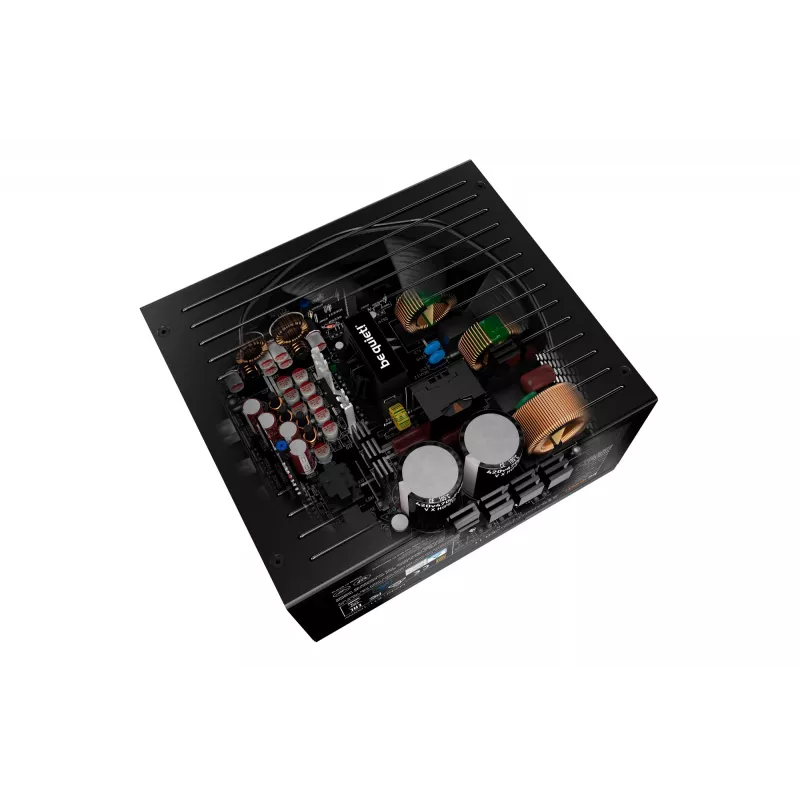

STATE-OF-THE-ART TECHNOLOGIES Rock-steady signal stability and efficiency With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105°C CAPACITORS A testament to high quality Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

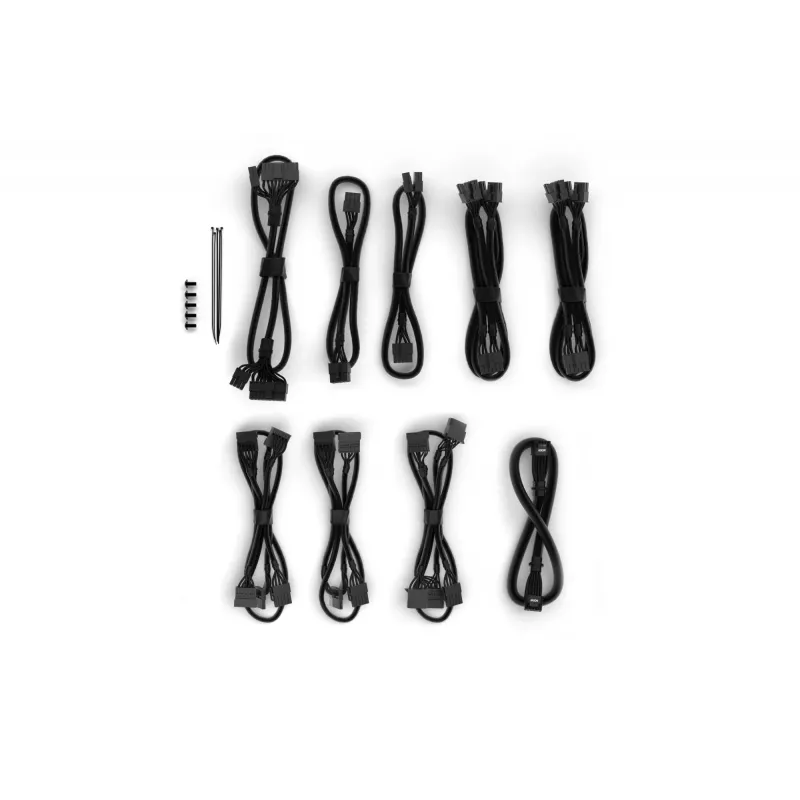

CONVENIENCE AND CONNECTIVITY Maximum utility Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
How to use
Mount the PSU in your PC case following the case manufacturer’s instructions, connect the 20+4 pin ATX connector to the motherboard and attach the required modular power cables to GPUs, drives and other components. Ensure the input voltage selector (if present) matches your mains supply and secure all connections before powering the system. Allow for adequate ventilation around the PSU fan intake to maintain low operating temperatures.
Recommendations
For stable long-term operation, pair the BN338 1000 W with components whose combined continuous power draw stays below the PSU’s 1000 W rating; reserve the peak capability for short transient loads. Keep the PSU and surrounding area free of dust and ensure good case airflow to maintain efficiency and reduce noise.
Destaques principais
80 PLUS Platinum efficiency (up to 93,9%)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Virtually inaudible Silent Wings 135mm fan
Funnel-shaped fan opening on PSU case for high airflow intake
Full bridge LLC technology for unmatched signal stability
One massive high-performance 12V-rail
Japanese 105°C capacitors ensure highest stability and reliability
Wire-free DC side inside the PSU for enhanced cooling and longevity
Modular cable management for maximum convenience
One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
1000 W 100 - 240 V 50/60 Hz
Motherboard power connector: 20+4 pin ATX
PC ATX 80 PLUS Platinum
Active 13.5 cm 0 - 2100 RPM
Black
Especificações
Abraçadeiras incluídas
Yes
Altura
86 mm
Altura da caixa interior
34.6 cm
Altura da embalagem
102 mm
Cabos incluídos
CPU, SATA
Certificação 80 PLUS
80 PLUS Platinum
Certificados de conformidade
RoHS, Federal Communications Commission (FCC), UKCA, WEEE, CE
Certificados de sustentabilidade
Triman, ENERGY STAR, ErP
Comprimento da caixa interior
65.1 cm

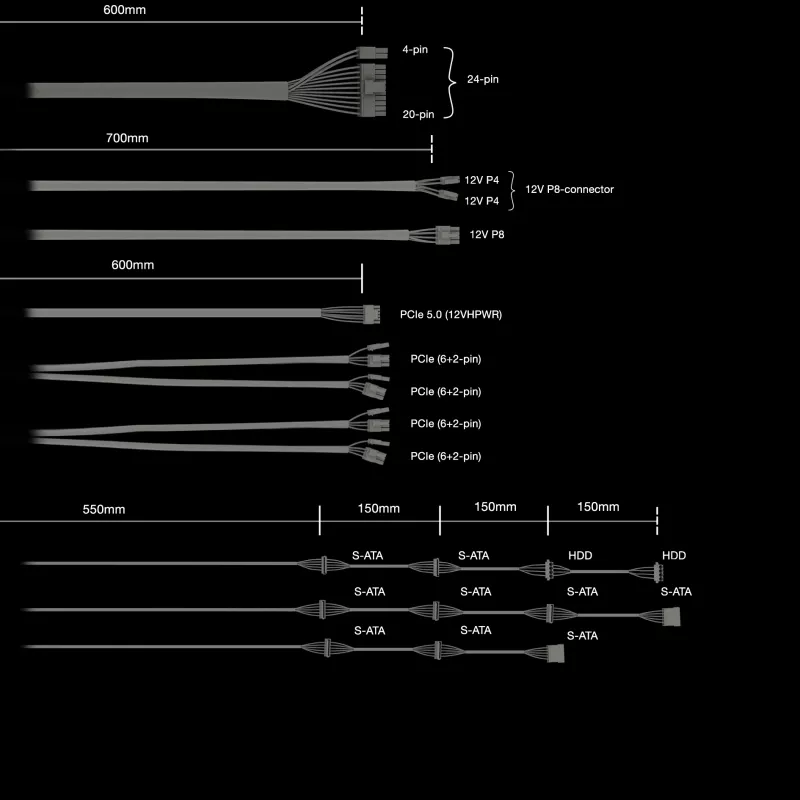

Comprimento do cabo de alimentação da CPU
70 cm
Comprimento do cabo de alimentação da placa-mãe
60 cm
Comprimento do cabo de alimentação PCI Express
60 cm
Comprimento do cabo de alimentação periférico (Molex)
1000,850 mm
Comprimento do cabo de alimentação SATA
550,700,850,1000 mm
Conector de alimentação da placa-mãe
20+4 pin ATX
Conector de alimentação EPS (4+4 pinos)
Yes
Conector de alimentação EPS (8 pinos)
Yes
Conectores de alimentação PCI Express (16 pinos)
1
Conectores de alimentação PCI Express (6+2 pinos)
4
Conectores de alimentação periféricos (Molex) (4 pinos)
0
Conformidade em sustentabilidade
Yes
Cor do produto
Black
Corrente de entrada
13/6.5 A
Corrente máxima de saída (+12 V)
83.3 A
Corrente máxima de saída (+3,3 V)
25 A
Corrente máxima de saída (+5 V)
25 A
Corrente máxima de saída (+5 Vsb)
3 A
Corrente máxima de saída (-12 V)
0.5 A
Diâmetro da ventoinha
13.5 cm
Eficiência
91.8%
Fator de potência
0.99
Finalidade
PC
Formato da fonte de alimentação (PSU)
ATX
Formatos de placa-mãe suportados
ATX, micro ATX, Mini-ATX
Frequência de entrada CA
50/60 Hz
Funções de proteção elétrica
Over current, Over power, Over voltage, Overheating, Under voltage

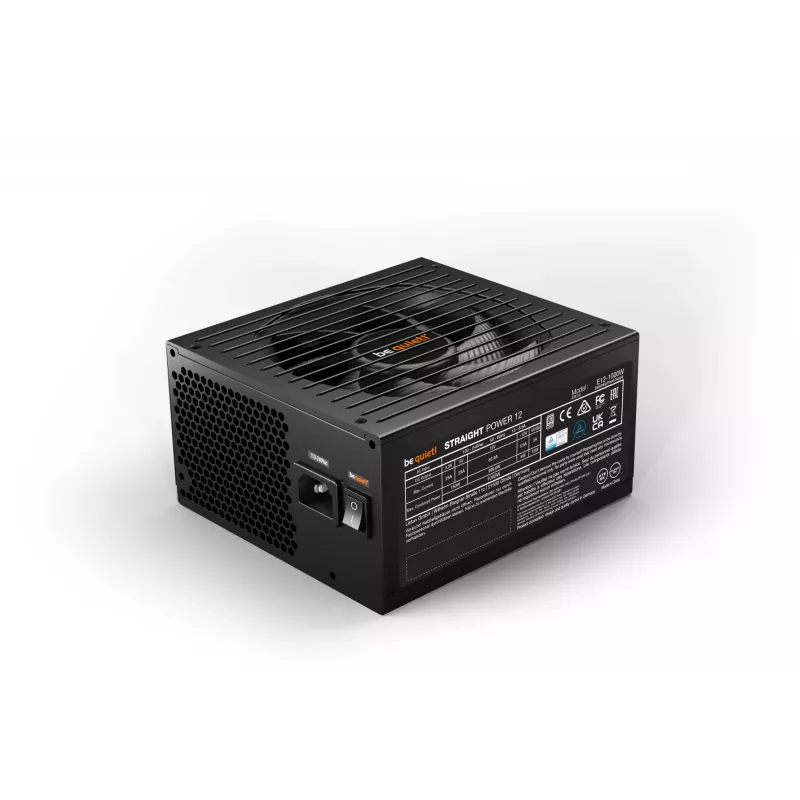

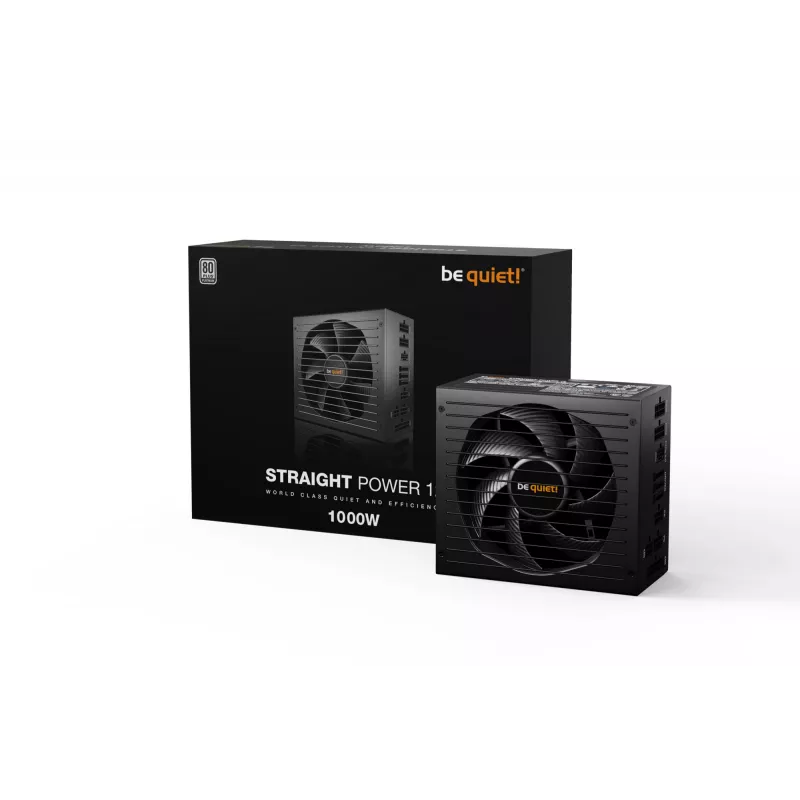

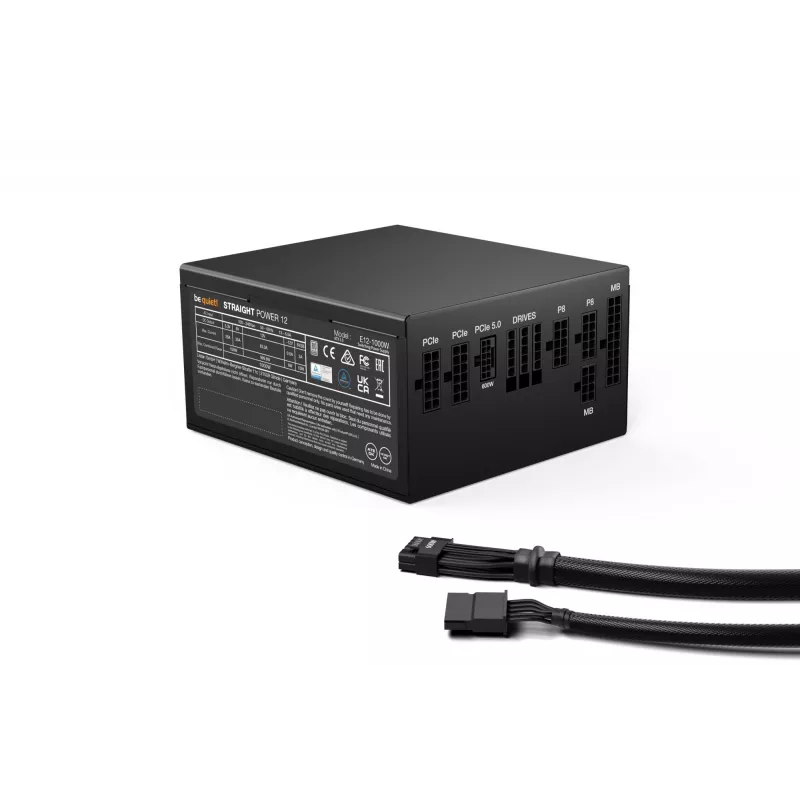

be quiet! BN338 Fonte de alimentação 1000 W 20+4 pin ATX ATX Preto
