be quiet! Dark Power Pro 14 IO 1600W ATX 3.1 PCIe 5.1 80+ Titanium fonte de alimentação totalmente modular

The be quiet! Dark Power Pro 14 IO sets a new standard for high-end power supplies. Delivering a colossal 1600W of continuous power, this ATX 3.1 certified unit is built to handle the most extreme gaming rigs, professional workstations, and overclocking enthusiasts. With an 80 PLUS Titanium efficiency rating, it converts up to 94% of the AC input into usable DC power, reducing energy waste and heat generation.

Overview

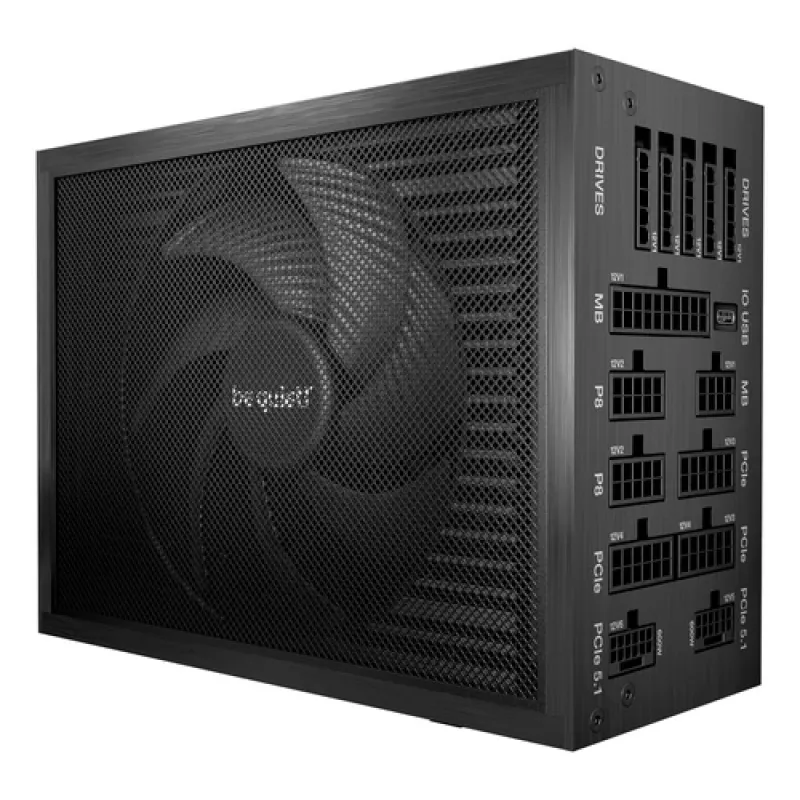

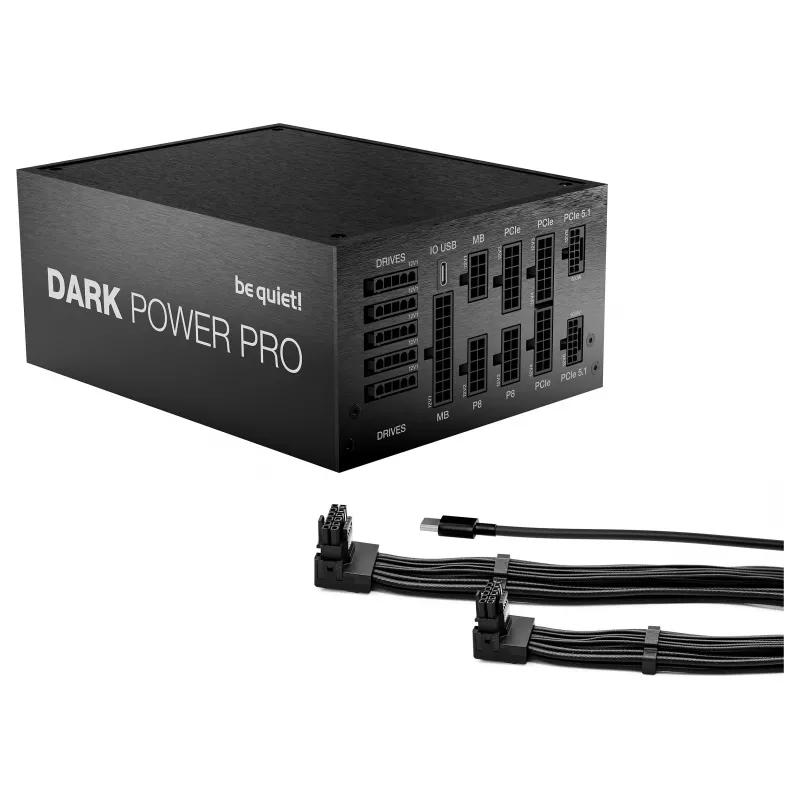

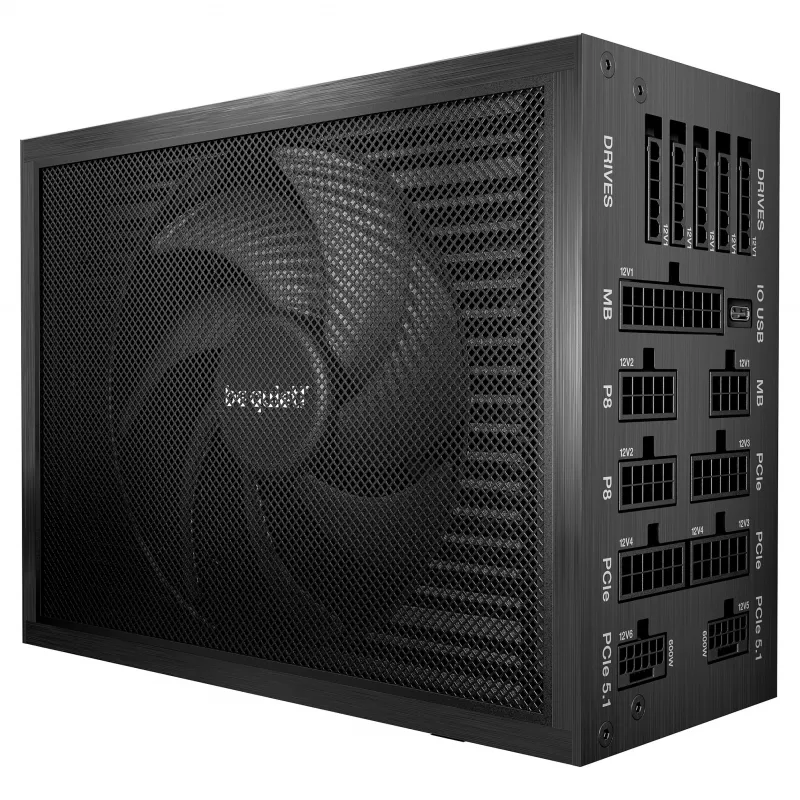

The Dark Power Pro 14 IO is meticulously engineered for reliability and performance. It features a fully modular cable design, allowing you to strip away unnecessary cables for pristine cable management. The integrated 135mm Silent Wings fan uses fluid dynamic bearing technology to provide exceptional cooling while maintaining whisper-quiet operation, even when under intense load. This power supply is the ideal foundation for any premium build.

What stands out

• 80 PLUS Titanium certification: up to 94% efficiency for lower energy costs and reduced heat.
• ATX 3.1 and PCIe 5.1 compliant: with native 12VHPWR connectors for next-gen GPUs.
• Fully modular cabling: connect only what you need, keeping your build tidy.
• Two 600W 12VHPWR connectors: support for the most powerful graphics cards.

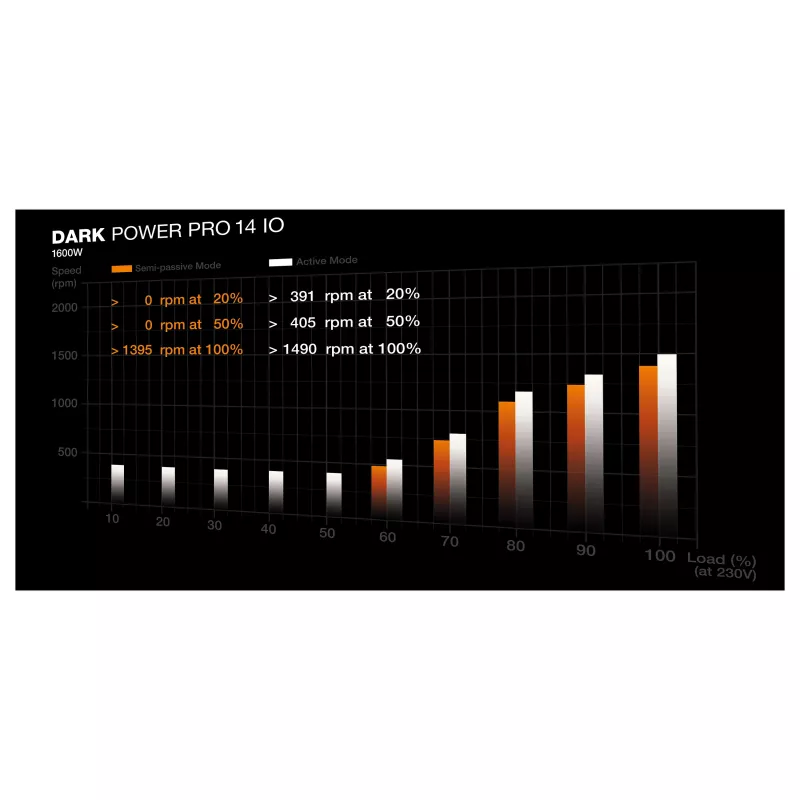

• Silent Wings 135mm fan: fluid dynamic bearing for quiet and long-lasting cooling.
• Comprehensive protections: OCP, OVP, UVP, SCP, OPP, and OTP ensure component safety.
• 10-year warranty and 100,000-hour MTBF: built to last.

Technical details

• Total Power: 1600W
• Efficiency Certification: 80 PLUS Titanium
• Form Factor: ATX PS/2
• Modularity: Full
• Fan Size: 135mm
• AC Input: 100-240 Vac
• AC Input Frequency: 50-60 Hz
• Protection Features: OCP, OVP, UVP, SCP, OPP, OTP
• Mean Time Between Failures: 100,000 hours

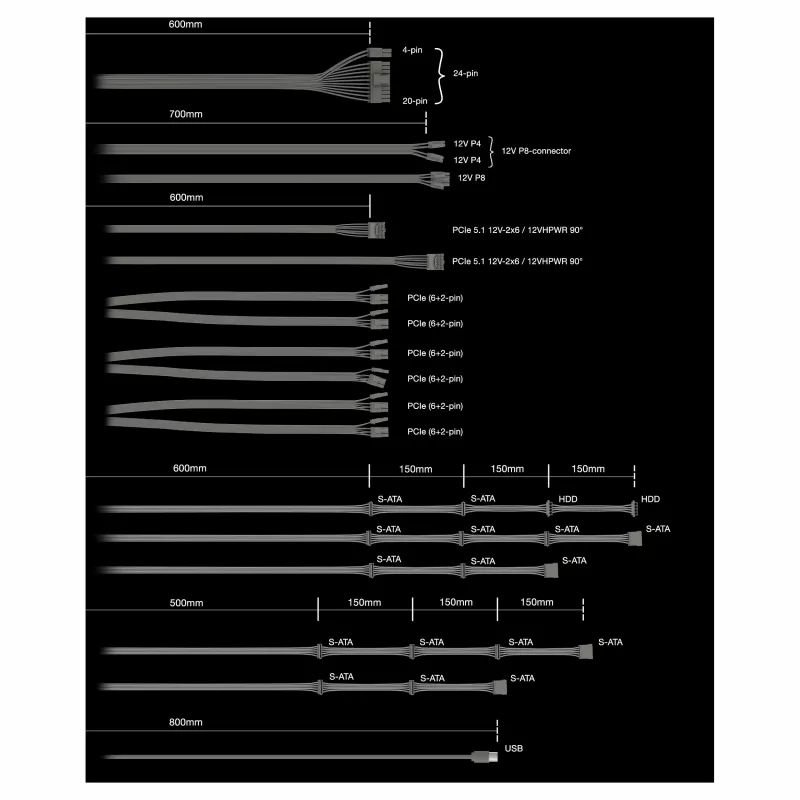

• 12VHPWR Connectors: 2x (600W each)
• PCIe 6+2 Pin Connectors: 8x
• SATA Connectors: 16x
• PATA (Molex) Connectors: 6x
• EPS 8-Pin Connectors: 2x
• 24-Pin ATX Connector: 1x
• Warranty: 10 Years

Our verdict

The Dark Power Pro 14 IO is a masterpiece of power supply engineering. It offers uncompromising performance, cutting-edge connectivity, and rock-solid stability. For those who demand the absolute best from their system, this PSU is without equal.
