BEMKO Base de fundação para poste de iluminação 160×160 mm

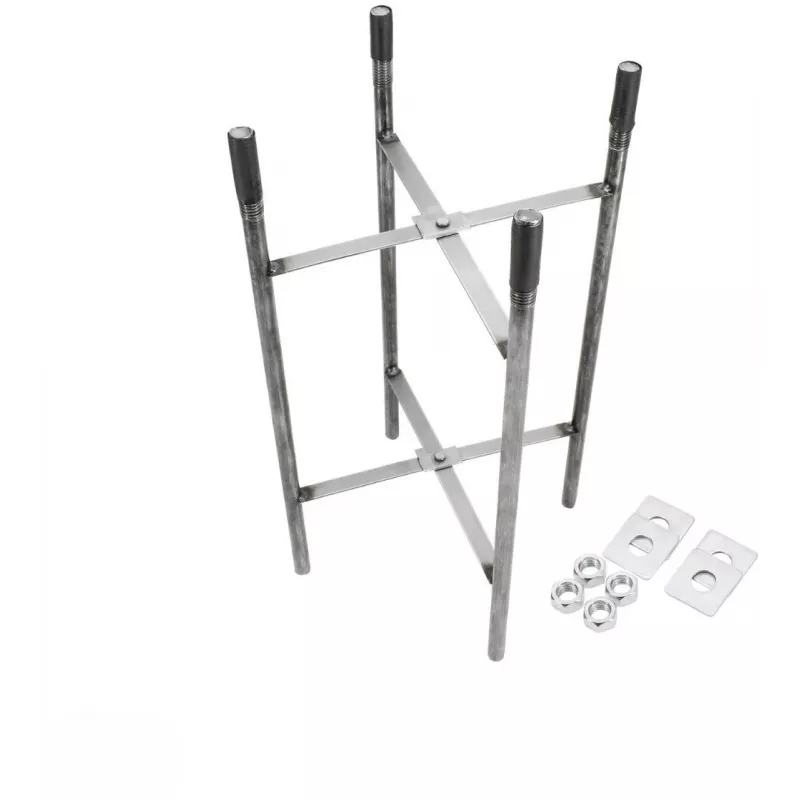

The BEMKO Foundation Base is a robust and durable solution designed for securing lighting poles in outdoor environments. Manufactured from high-quality steel with hot-dip galvanization, this base ensures long-lasting corrosion resistance and structural integrity. With top plate dimensions of 160×160 mm and a bolt spacing of 100×100 mm, it is compatible with poles featuring a 160×160 mm base plate and M16 anchor bolts. The base includes four anchor bolts, each 500 mm long, and an 8 mm thick plate for reliable mounting in concrete foundations.

Advantages

Hot-dip galvanized finish provides superior protection against rust and weathering, making it ideal for outdoor use. The precise bolt pattern ensures easy alignment and secure installation. Designed for concrete foundations, it offers exceptional stability for lighting poles in various applications.

Suitable for

• Outdoor lighting poles with 160×160 mm base plate
• Poles requiring 100×100 mm bolt pattern
• Concrete foundation mounting

Key specifications

• Top Plate Dimensions: 160×160 mm
• Bolt Spacing: 100×100 mm
• Bolt Diameter: M16
• Bolt Length: 500 mm
• Material: Steel
• Corrosion Protection: Hot-dip Galvanization
• Plate Thickness: 8 mm
• Number of Anchor Bolts: 4
• Usage Environment: Outdoor

Recommendations

Ensure the concrete foundation is properly cured before installation. Verify pole base plate dimensions and bolt pattern compatibility. Use appropriate tools for tightening M16 bolts to recommended torque.
