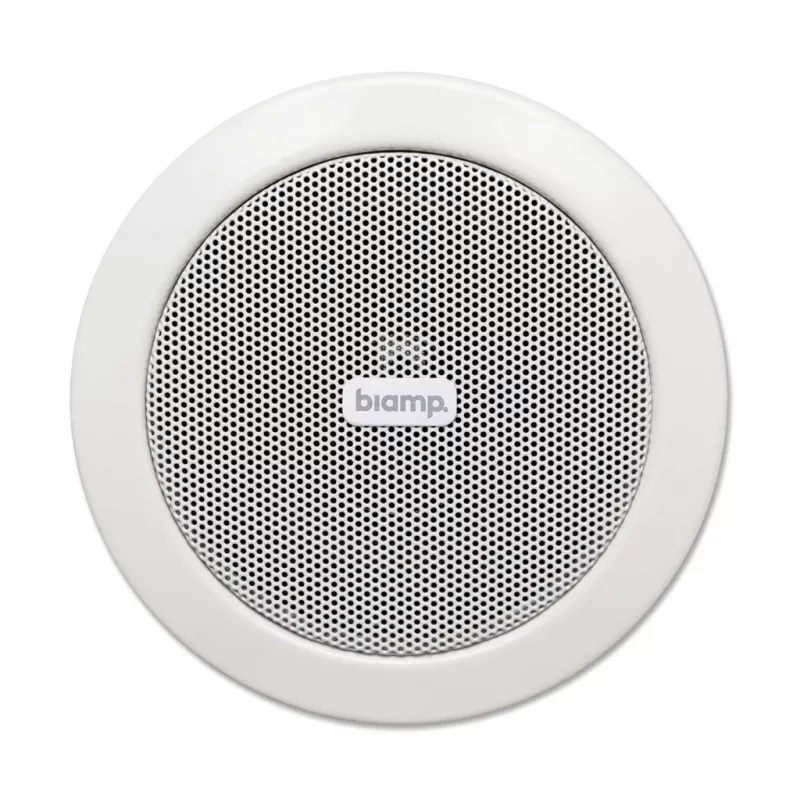

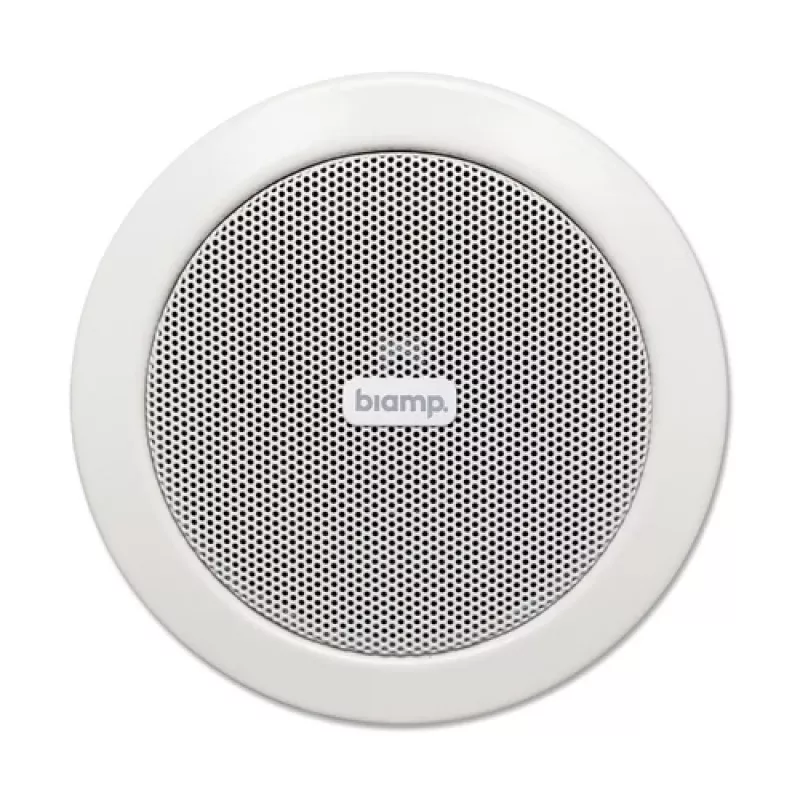

Biamp CM3T altifalante de teto de 2 vias - branco (RAL 9010)

The Biamp CM3T is a high-performance 2-way ceiling loudspeaker designed for commercial audio installations. Featuring a 3-inch polypropylene woofer and a 0.5-inch Mylar dome tweeter, it delivers clear and balanced sound for background music and paging applications. The speaker is equipped with a multi-tap transformer for 70V and 100V systems, making it ideal for distributed audio networks.

Advantages

Compact design with quick-fit ceiling mount system for easy installation. Wide 140° conical dispersion ensures even coverage. IP54 front rating provides protection against dust and moisture. White RAL 9010 finish blends seamlessly with most ceiling tiles.

Suitable for

• Commercial background music systems
• Public address and paging systems
• Retail stores, restaurants, and offices
• Hotels and conference rooms

Key specifications

• Speaker Type: 2-Way Ceiling Loudspeaker
• Low Frequency Driver: 3" (76mm) Polypropylene Woofer
• High Frequency Driver: 0.5" (13mm) Mylar Dome Tweeter
• Frequency Response (-10dB): 90 Hz - 20 kHz
• Frequency Response (-3dB): 120 Hz - 20 kHz
• Power Handling (RMS): 10 W
• Power Handling (Peak): 20 W
• Nominal Impedance: 8 Ohms

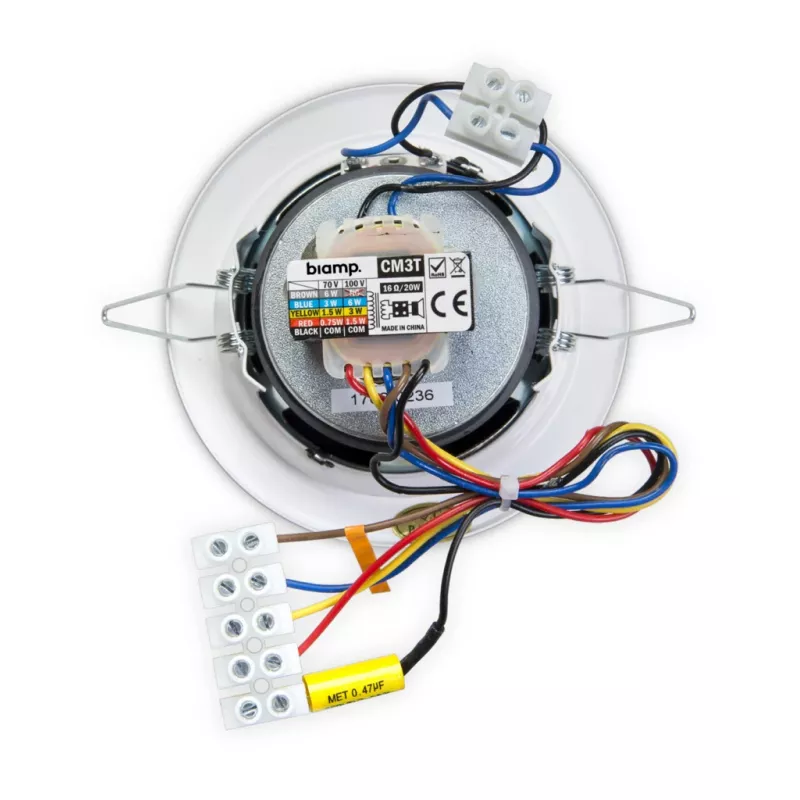

• Transformer Taps (100V): 6W, 3W, 1.5W, 0.75W
• Transformer Taps (70V): 6W, 3W, 1.5W, 0.75W, 0.375W
• Sensitivity (1W/1m): 86 dB
• Max SPL (1m): 96 dB
• Dispersion Angle: 140° Conical
• Mounting Type: Ceiling Mount (Quick-fit system)
• Cutout Diameter: 155 mm (6.1")
• Color: White (RAL 9010)
• Construction: ABS Plastic Housing, Steel Grille
• IP Rating: IP54 (Front)
• Connectors: Euroblock

Recommendations

For optimal performance, pair with a compatible Biamp amplifier and use appropriate gauge speaker wire. Ensure proper ceiling cutout and secure mounting.
