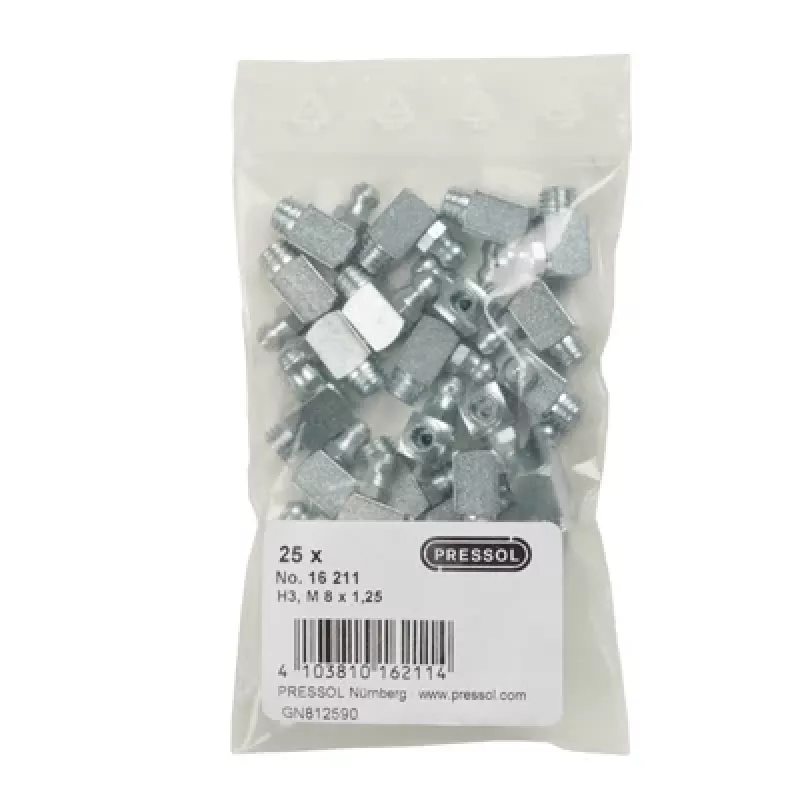

Bico de lubrificação cónico Pressol H3-90°, M8 x 1,25, galvanizado, 25 unidades (16 211)

Lubrication points in tight or angled locations often make standard grease nipples difficult to reach, leading to skipped maintenance and premature wear. The PRESSOL conical grease nipple H3-90° solves this by offering a 90-degree angled head that allows the grease coupler to attach perpendicular to the nipple axis, making it ideal for confined spaces. Its conical head form is designed for hydraulic couplers, ensuring a secure, leak-free connection during greasing. The built-in ball check valve prevents dirt and moisture from entering the lubrication point while retaining grease under pressure. Manufactured from steel with a zinc-plated finish, these nipples provide reliable corrosion protection in industrial and automotive environments. Each pack contains 25 pieces, thread size M8 x 1.25 mm, conforming to DIN 71412 H3.

Who is it for

Maintenance technicians, mechanics, and machinery operators who need dependable grease nipples for hard-to-reach lubrication points on industrial equipment, vehicles, and agricultural machinery. Suitable for general lubrication tasks where an angled connection is required.

Main features

• 90° angled conical head for access in tight spaces
• Conical head form compatible with hydraulic couplers
• Ball check valve prevents contamination and grease backflow
• Zinc-plated steel construction for corrosion resistance
• Metric thread M8 x 1.25 mm, DIN 71412 H3 standard
• Pack of 25 pieces for convenient stocking

Specifications

• Brand: PRESSOL
• Model: 16 211
• MPN: 16 211
• EAN: 4103810162114
• Grease Nipple Type: Conical
• Standard: DIN 71412 H3
• Angle: 90°
• Thread Type: Metric
• Thread Size: M8
• Thread Pitch: 1.25 mm
• Material: Steel
• Surface Finish: Zinc-plated (VZ)
• Pack Quantity: 25 pieces
• Head Form: Conical (for hydraulic couplers)
• Corrosion Protection: Yes
• Installation Type: Screw-in
• Application: General lubrication points
• Internal Mechanism: Ball check valve

Tips

Before installation, clean the lubrication point to prevent contaminants from entering. Use a torque wrench to avoid over-tightening, which can damage the thread or the ball check valve. Regularly inspect nipples for damage or clogging and replace as needed to maintain effective lubrication.
