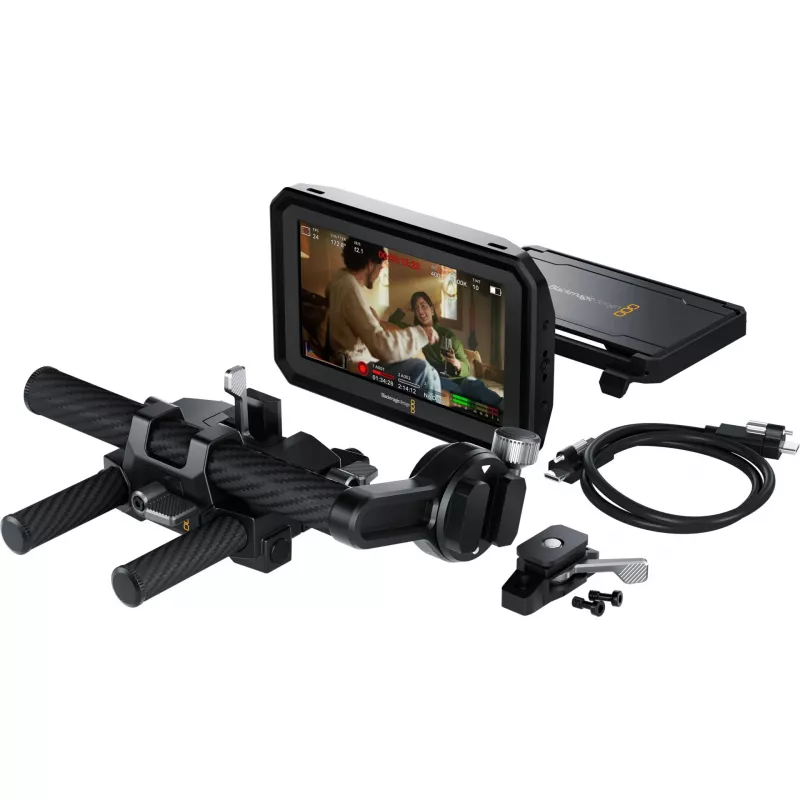

Kit de monitor EVF Blackmagic Design Pyxis

The Blackmagic Design Pyxis Monitor EVF Kit combines a high-brightness 7-inch LCD touchscreen monitor with an integrated electronic viewfinder (EVF), providing professional monitoring and framing capabilities for cinema and broadcast production. The monitor features a 1920x1200 WUXGA resolution, 1500 cd/m² brightness, and supports up to DCI 4K at 60 fps via 12G-SDI and HDMI inputs/outputs. The EVF includes diopter adjustment for precise focusing. Built with a machined aluminum chassis, the kit offers multiple mounting options including 1/4"-20 threads and ARRI-style rosette. It also includes advanced monitoring tools such as 3D LUT support, waveform, vectorscope, histogram, focus assist, false color, frame guides, and zebra. Power is supplied via a 2-pin DC input (12V) or dual L-series battery plates.

Advantages

This kit provides an all-in-one monitoring solution with a bright, high-resolution touchscreen and an integrated EVF for critical focus and framing in bright environments. The robust aluminum construction ensures durability on set, while the dual power options offer flexibility for extended shoots. The comprehensive monitoring tools enable precise exposure and color analysis.

Suitable for

• Professional cinematographers and videographers
• Broadcast and live production crews
• Directors and camera operators needing accurate monitoring
• Studio and field production environments

Key specifications

• Display: 7-inch LCD touchscreen, 1920x1200 (WUXGA), 1500 cd/m²
• Video Inputs/Outputs: 1x 12G-SDI, 1x HDMI Type A
• EVF: Integrated with diopter adjustment
• Power: 12V DC input, dual L-series battery plates
• Construction: Machined aluminum chassis
• Monitoring Tools: 3D LUT, waveform, vectorscope, histogram, focus assist, false color, frame guides, zebra
• Mounting: 1/4"-20 threads, ARRI-style rosette
• USB: 1x USB-C for webcam output, control, updates
• Audio Output: 3.5mm headphone jack

Recommendations

For optimal performance, use high-quality SDI or HDMI cables. Ensure batteries are fully charged before use. The EVF diopter can be adjusted to suit individual eyesight. Compatible with a wide range of camera rigs and accessories.
