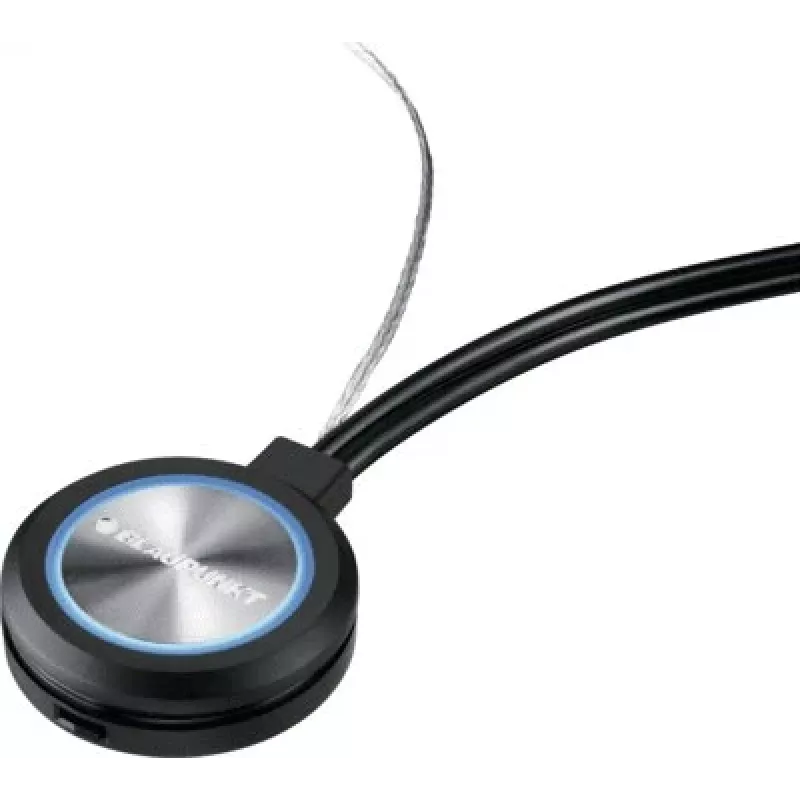

Blaupunkt FunLine Discs Antena de janela ativa para autorrádio receção AM/FM, ficha DIN, cabo de 2,9m, preto

This active window antenna from Blaupunkt's FunLine Discs series delivers reliable AM/FM radio reception for your car audio system. Its integrated amplifier boosts weak signals by approximately 10 dB, ensuring clear sound even in areas with poor coverage. The flat, self-adhesive design mounts discreetly on any car window, preserving your vehicle's aesthetics while providing robust performance.

Advantages

Compact and unobtrusive, this antenna installs in minutes without drilling or exterior modifications. The powered design enhances signal strength, reducing static and dropouts. A 2.9-meter coaxial cable with a standard DIN connector offers flexible routing to your radio, and the universal compatibility works with virtually any car stereo featuring a DIN antenna input.

Suitable for

• Drivers seeking a discreet alternative to traditional mast antennas
• Vehicles where roof or fender mounting is impractical or undesirable
• Car audio enthusiasts wanting improved FM/AM reception without bulky equipment
• Installations requiring a simple, self-adhesive solution on glass surfaces

Key specifications

• Antenna type: Active window antenna with integrated amplifier
• Frequency range: AM/FM (MW/UKW)
• Gain (FM): Approx. 10 dB
• Impedance: 50 Ohm
• Connector type: DIN (male)
• Cable length: 2.9 meters
• Power supply: 12V DC via separate lead (operating voltage 10-14.5V DC)
• Current consumption: Less than 50 mA
• Mounting: Self-adhesive on car window
• Colour: Black
• Material: Plastic housing with copper elements

Recommendations

For optimal performance, mount the antenna on the upper corner of the windshield or rear window, away from metal edges. Ensure the glass is clean and dry before applying the adhesive. Connect the power lead to a switched 12V source to prevent battery drain when the ignition is off.
