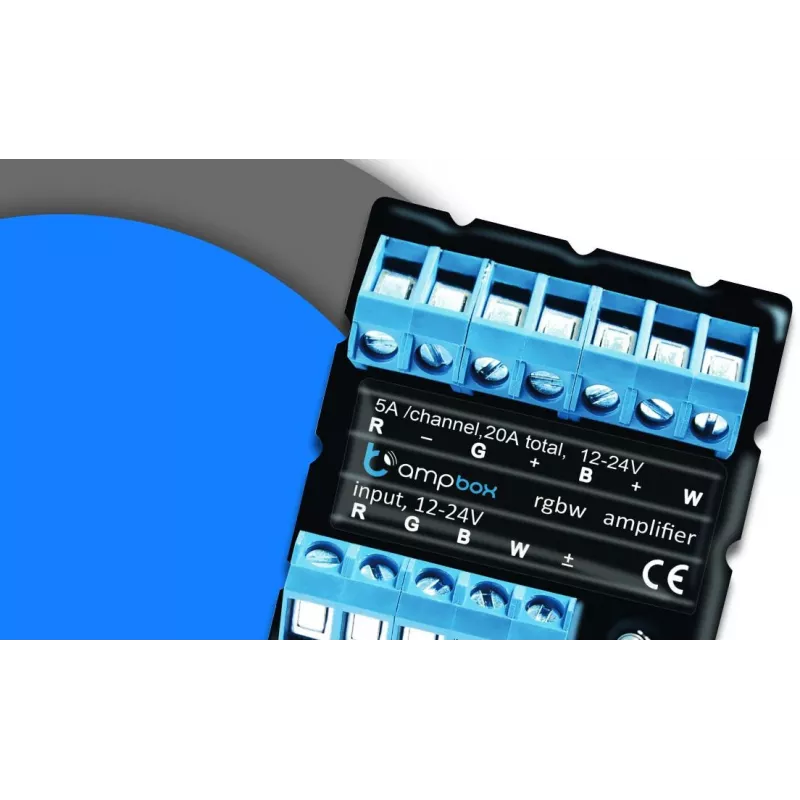

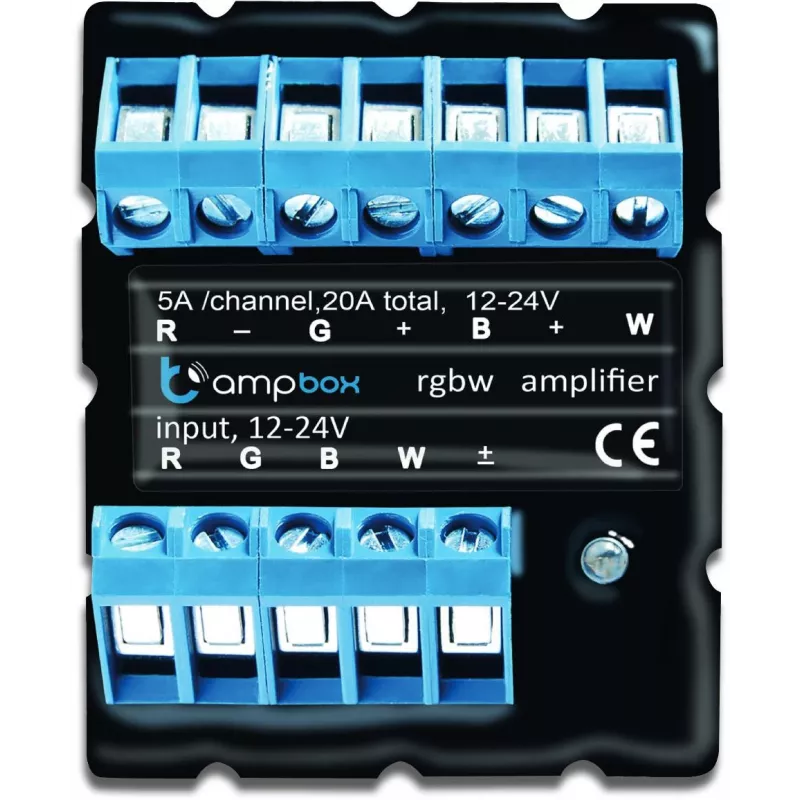

BLEBOX ampbox Controlador LED inteligente 4 canais Wi-Fi RGBW CCT 12-24V DC

For smart lighting projects that demand flexibility without a hub, the BLEBOX ampbox delivers four independent channels in a compact, in-wall mountable module. Unlike single-purpose dimmers, it handles single-colour, RGB, RGBW and tunable white strips, so one unit covers almost any LED installation. Native Wi-Fi and open protocols mean it works with your existing network and automation tools out of the box.

Highlights

• 4-channel output supports single-colour, RGB, RGBW and CCT LED strips
• 3A per channel, up to 12A total – enough for large installations (max 144W at 12V, 288W at 24V)
• Native Wi-Fi 2.4 GHz for control via app, browser, REST API or MQTT
• Compatible with Google Assistant and Amazon Alexa for hands-free operation
• Dimmable, colour control, scene management, schedules and timers
• Compact design for in-wall mounting (Ø60mm) or surface mount

In daily use

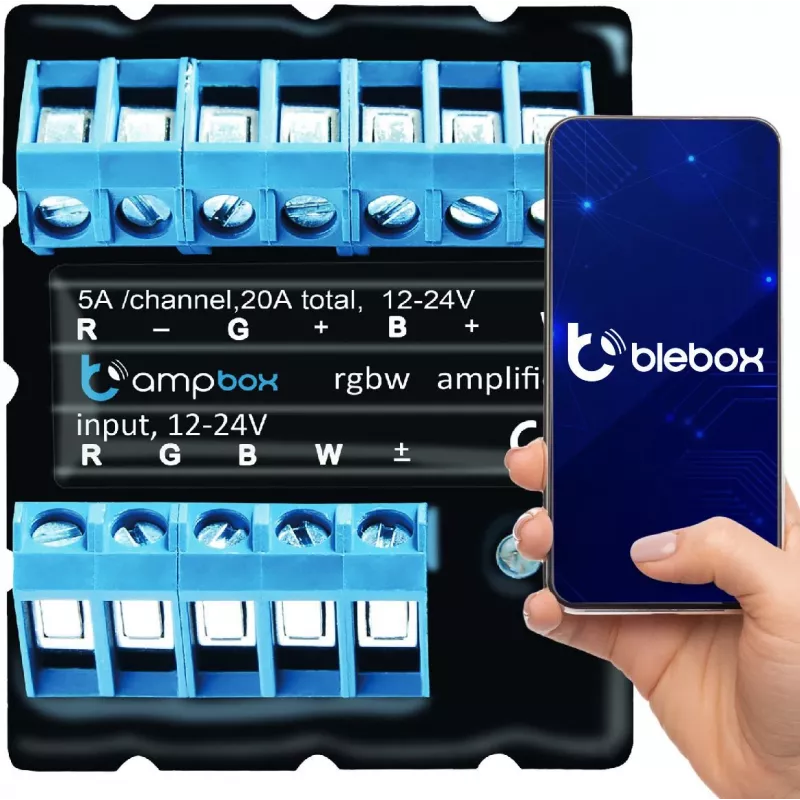

Once installed, the ampbox becomes the brain of your lighting. Use the free wBox app for iOS and Android to set the mood, switch scenes, or program timers to match your daily rhythm. If you are a smart-home enthusiast, the open REST API and MQTT support let you integrate it with your existing automation scripts, while the encrypted TLS connection keeps every command secure.

Full specifications

• Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n)
• Input voltage: 12–24V DC
• Output channels: 4
• Max current per channel: 3A
• Max total current: 12A
• Max output power: 144W at 12V, 288W at 24V
• Control method: wBox app (iOS/Android), web browser, REST API, MQTT
• Voice assistants: Google Assistant, Amazon Alexa
• Operating temperature: -20°C to 50°C
• Standby power consumption: < 1W
• Security: TLS Encryption
• Housing material: High-quality plastic
• Protection rating: IP20

Final note

With its open API, MQTT support and voice assistant compatibility, the ampbox is a future-proof choice for both simple and advanced LED control.
