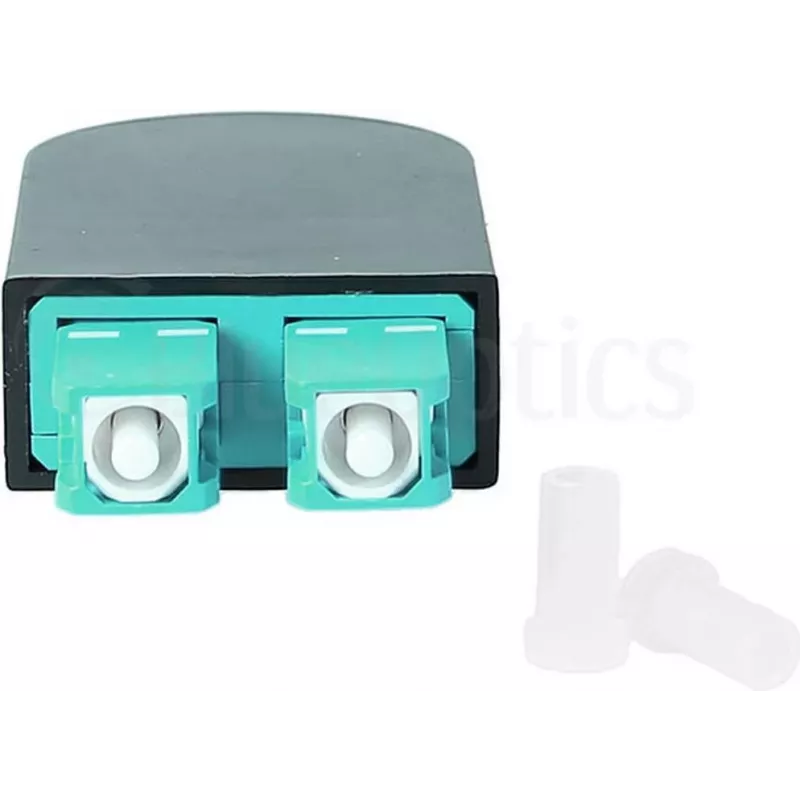

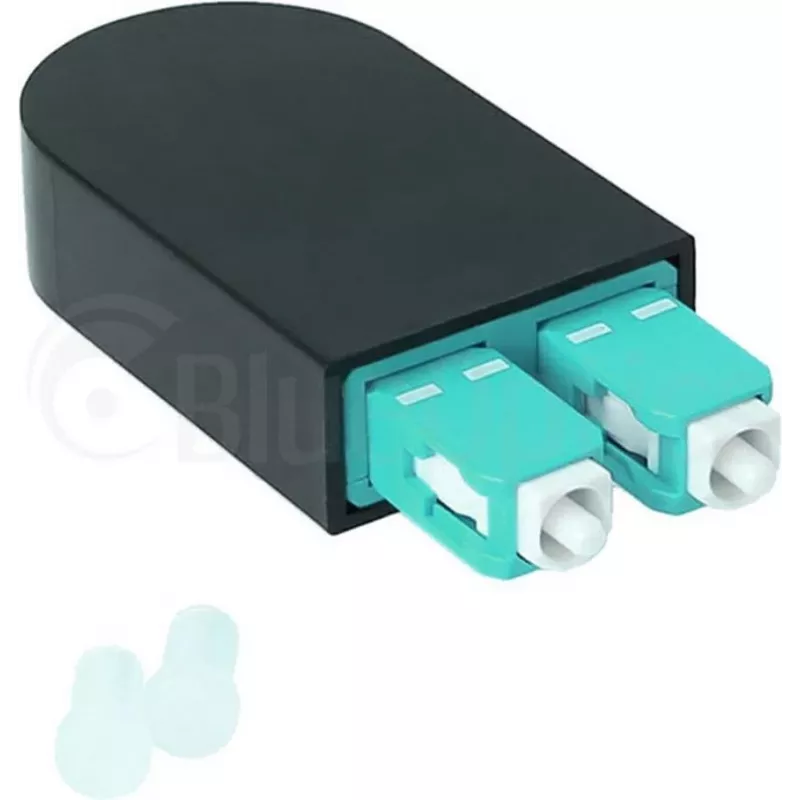

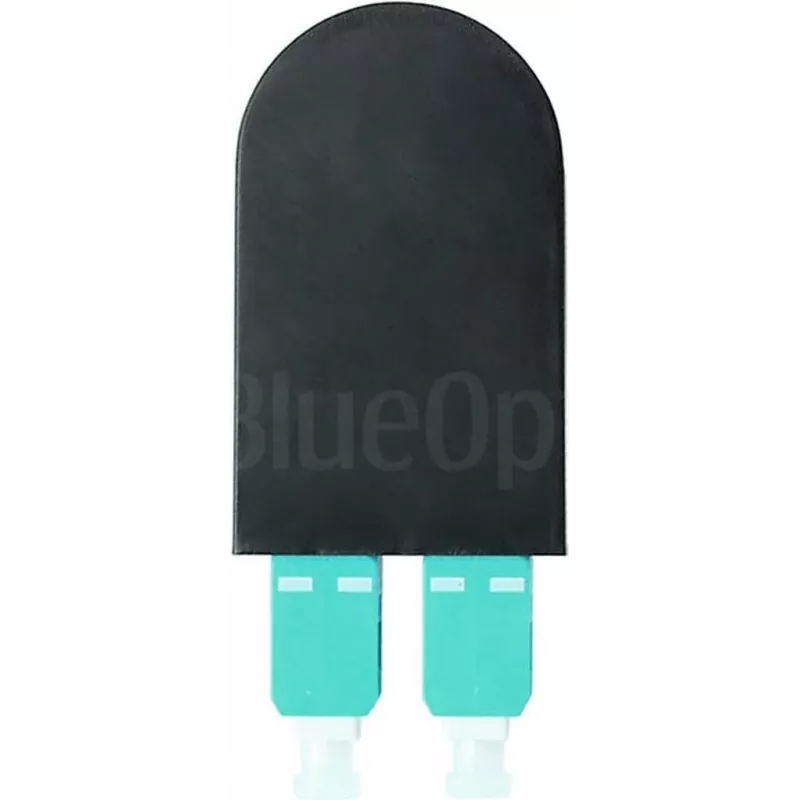

BLUELAN BlueOptics Adaptador loopback de fibra ótica OM3 50/125µm multimodo SC/UPC duplex, aqua/turquesa, ferrule de cerâmica, -40°C a +85°C (BOLBSCOM3)

Network troubleshooting and diagnostics often require a reliable way to test fiber optic links without relying on remote equipment. The BLUELAN BlueOptics Loopback Adapter for OM3 multimode fiber provides a simple, effective solution by routing the transmit signal back to the receiver, enabling verification of link integrity and performance. Designed for SC/UPC duplex connections, it features a 50/125µm core/cladding and a zirconia ceramic ferrule for precise alignment and low insertion loss. Its aqua/turquoise housing complies with industry color coding for OM3 multimode, and it operates reliably across a wide temperature range from -40°C to +85°C.

Who is it for

This loopback adapter is intended for network engineers, technicians, and IT professionals who need to test, diagnose, and troubleshoot fiber optic networks, particularly those using OM3 multimode cabling with SC/UPC connectors. It is suitable for use in data centers, enterprise networks, and telecommunications environments.

Main features

• Fiber type: OM3 multimode, 50/125µm core/cladding diameter
• Connector: SC/UPC duplex
• Ferrule material: Zirconia ceramic for durability and precision
• Color: Aqua/turquoise, matching OM3 standard identification
• Operating temperature range: -40°C to +85°C
• Typical insertion loss: < 0.2 dB
• Typical return loss: > 50 dB
• Supports wavelengths: 850 nm and 1300 nm
• Mating cycles: > 500

Specifications

• Adapter type: Fiber optic loopback adapter
• Fiber mode: Multimode
• Fiber class: OM3
• Core/cladding diameter: 50/125 µm
• Connector type: SC/UPC
• Connector configuration: Duplex
• Ferrule material: Zirconia ceramic
• Color: Aqua / Turquoise
• Operating temperature range: -40°C to +85°C
• Storage temperature range: -40°C to +85°C
• Insertion loss (typical): < 0.2 dB
• Return loss (typical): > 50 dB
• Wavelength support: 850 nm, 1300 nm
• Mating cycles: > 500

Tips

To use the loopback adapter, simply connect it to the SC/UPC duplex port of the device under test. The adapter will loop the transmit signal back to the receive path, allowing you to verify the link using standard test equipment. Ensure the adapter is clean before use to maintain optimal performance.
