BlueLAN Cabo breakout DAC de cobre passivo QSFP28 para 4x SFP28 compatível com 980-9I48H-00C003, 3m, 100G para 4x25G 980-9I48H-00C003-BL

Aggregate 100 Gbps over a passive copper breakout cable: this BlueLAN 980-9I48H-00C003 compatible DAC splits a QSFP28 port into four SFP28 links, each running at 25 Gbps, over a 3-meter span.

Overview

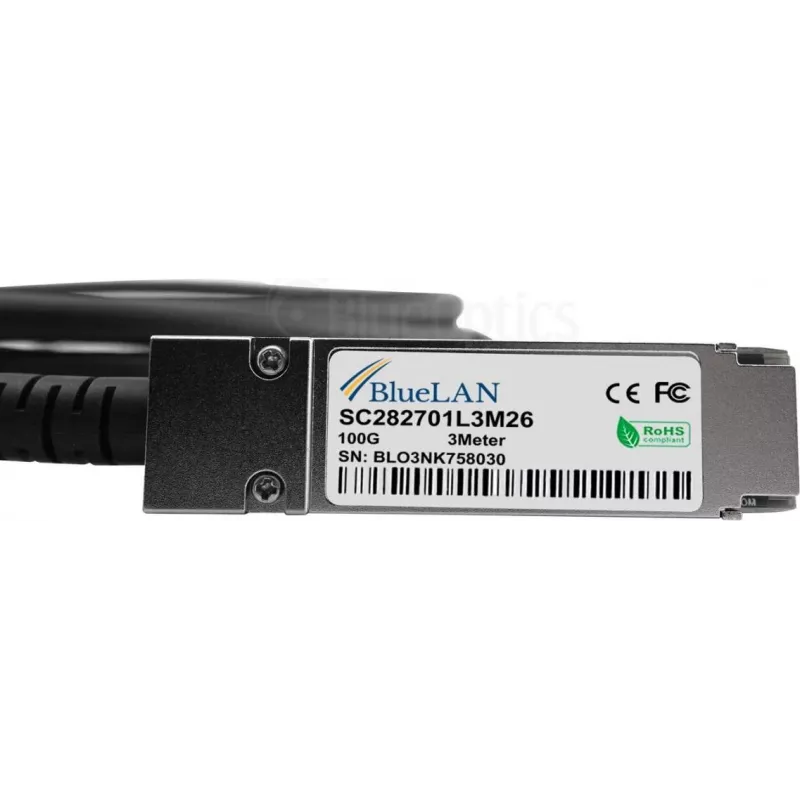

The BlueLAN SC282701L3M26 is a direct attach copper (DAC) breakout cable engineered for NVIDIA networking equipment, including Mellanox switches and adapters. It connects a single QSFP28 port on one end to four independent SFP28 ports on the other, enabling high-density 25G server connectivity from a 100G uplink. The cable is passive, drawing no additional power, and is hot-pluggable for simple installation and replacement.

What stands out

• Aggregate data rate of 100 Gbps, with four lanes of 25 Gbps each
• QSFP28 to 4x SFP28 breakout configuration for flexible top-of-rack deployments
• Passive copper design for low latency and zero power consumption
• 3-meter length suits adjacent rack connections
• Compatible with NVIDIA Ethernet standards: 100GBASE-CR4 to 4x 25GBASE-CR

Technical details

• Product type: Direct Attach Copper (DAC) cable
• Cable configuration: Breakout cable
• Aggregate data rate: 100 Gbps
• Per lane data rate: 25 Gbps
• Connector 1: QSFP28
• Connector 2: 4x SFP28
• Ethernet standard (end 1): 100GBASE-CR4
• Ethernet standard (end 2): 4x 25GBASE-CR
• Cable length: 3 meters
• Cable design: Passive
• Cable material: Copper
• Compatibility: NVIDIA Networking Equipment (e.g., Mellanox)
• Hot-pluggable: Yes
• Supported protocol: Ethernet
• Application: Data Center Interconnect, High-Performance Computing (HPC)
• Form factor (end 1): QSFP28
• Form factor (end 2): SFP28

Our verdict

A reliable, cost-effective way to break out 100G QSFP28 ports into four 25G SFP28 connections for NVIDIA-based data centers, with a passive design that keeps latency and power draw at zero.
