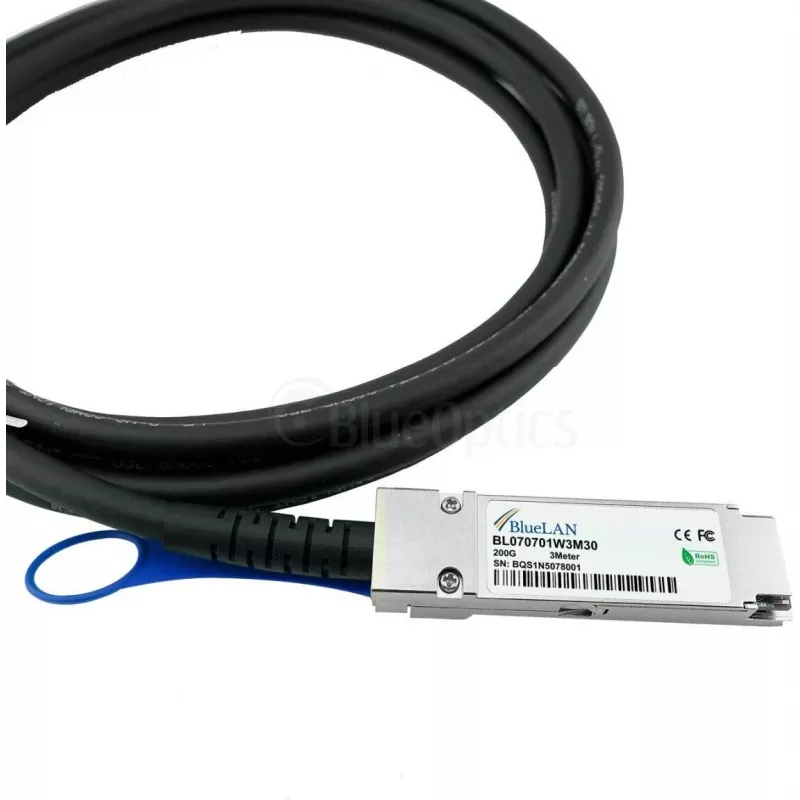

BlueLAN Cabo de Cobre Direct Attach QSFP56 Compatível com Infortrend 9624CM200CAB0-003 200Gb/s InfiniBand HDR 1m 30AWG

The BlueLAN QSFP56 Direct Attach Copper (DAC) Cable is a high-performance, passive copper cable designed for InfiniBand HDR (High Data Rate) applications. It is fully compatible with Infortrend systems using the OEM part number 9624CM200CAB0-003. This cable delivers 200 Gb/s data rates over a 1-meter length, utilizing 30 AWG wire gauge for optimal signal integrity and low power consumption. Ideal for high-performance computing (HPC), data centers, and enterprise networking, it ensures ultra-low latency and reliable connectivity.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range high-speed interconnects. With passive design, it consumes less than 0.5 W per end, reducing overall power usage. The 30 AWG construction provides flexibility while maintaining excellent signal quality. Hot-swappable QSFP56 connectors allow for easy installation and maintenance without system downtime.

Suitable for

• High-Performance Computing (HPC) clusters
• Data center top-of-rack and end-of-row switching
• Enterprise networking and storage area networks
• InfiniBand HDR infrastructure

Key specifications

• Connector Type: QSFP56 to QSFP56
• Cable Type: Direct Attach Copper (DAC)
• Data Rate: 200 Gb/s
• Protocol: InfiniBand HDR
• Cable Length: 1 meter (3.3 feet)
• Wire Gauge: 30 AWG
• Compatibility: Infortrend 9624CM200CAB0-003
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance in high-speed InfiniBand HDR environments, pair this cable with compatible QSFP56 transceivers and switches. Ensure proper cable management to maintain airflow and signal integrity.
