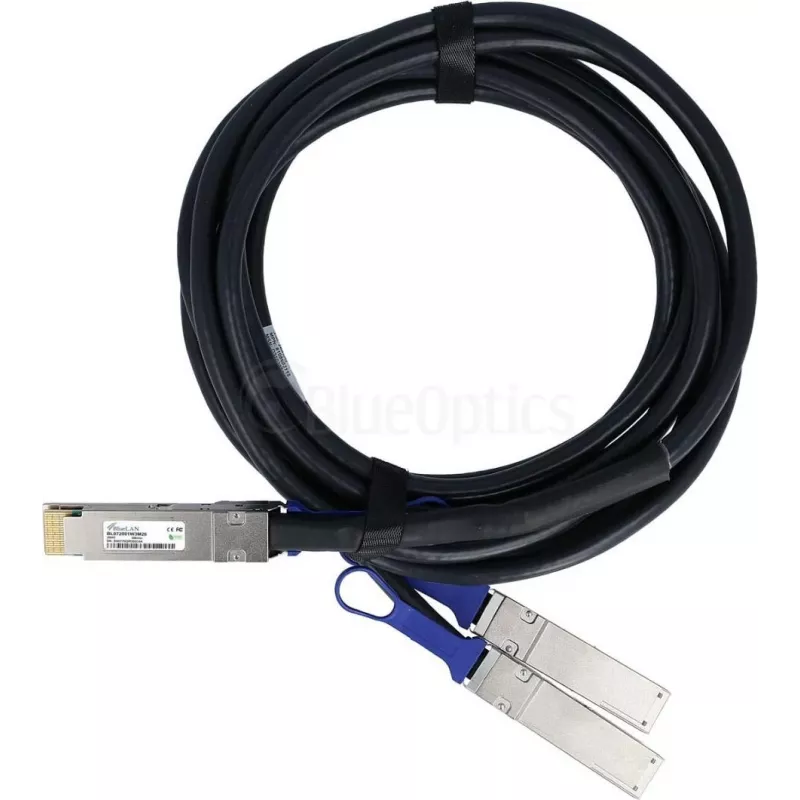

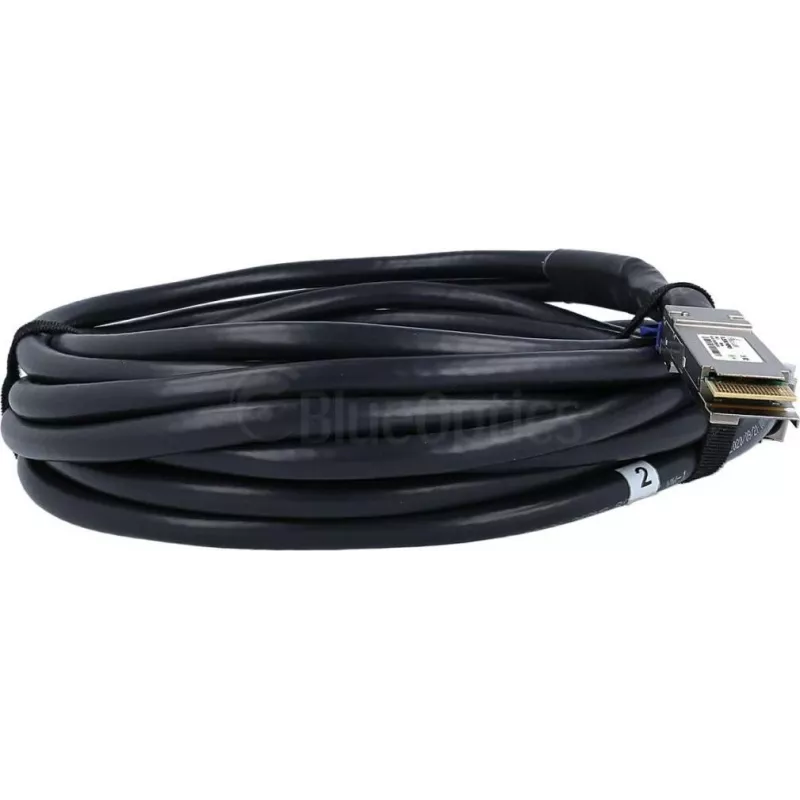

BlueLAN Cabo Direct Attach Breakout passivo 200Gb/s QSFP56 para 2x 100Gb/s QSFP56, 3m, AWG26, compatível com NVIDIA MCP7H50-H02AR26-BL

This passive direct attach breakout cable delivers a 200Gb/s QSFP56 connection that splits into two 100Gb/s QSFP56 links for high-density data center and HPC environments. It supports Ethernet and InfiniBand HDR protocols with PAM4 modulation for efficient signal integrity over copper.

Advantages

Passive copper construction eliminates power consumption and reduces latency. The breakout design enables flexible port utilization, connecting a single 200G port to two 100G devices. AWG26 wire gauge balances flexibility and performance for short 3-meter runs.

Suitable for

• Data center interconnect and top-of-rack switching
• High-performance computing clusters using InfiniBand HDR
• NVIDIA MCP7H50-H02AR26-NV compatible systems

Key specifications

• Connector A: QSFP56
• Connector B: 2x QSFP56
• Aggregate data rate: 200 Gb/s (2x 100 Gb/s breakout)
• Cable length: 3 meters
• Wire gauge: AWG26
• Electrical interface: SFF-8665
• Signal modulation: PAM4
• Power consumption: 0W (passive)
• Hot-pluggable: Yes

Recommendations

Ideal for short-reach, high-density 200G to 100G connections where low latency and zero power draw are critical.
