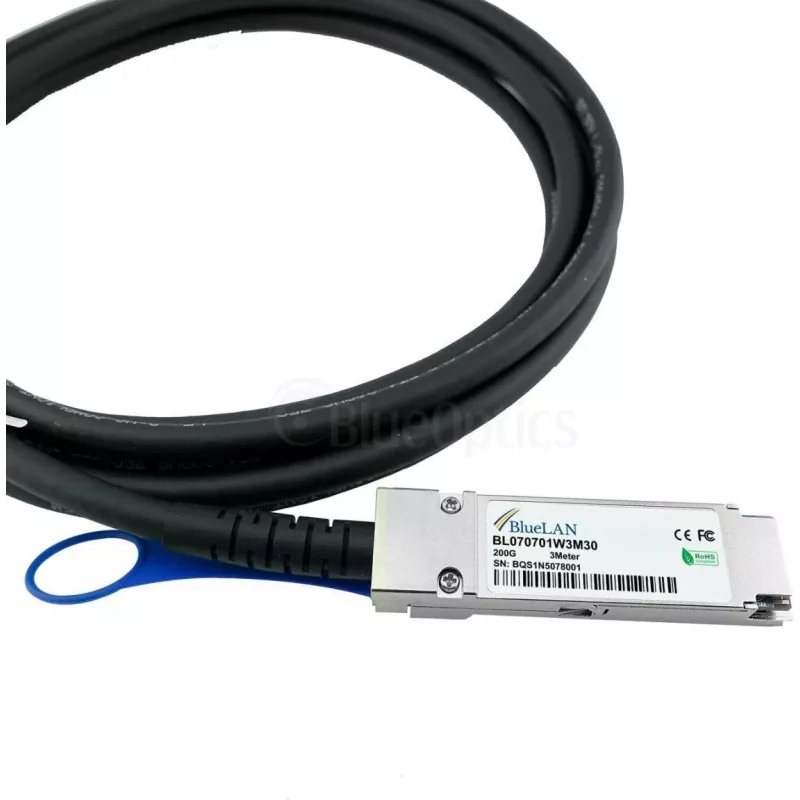

BLUELAN Cabo Direct Attach QSFP56 compatível com Mellanox MCP1650-V02AE26, 200GBASE-CR4, InfiniBand, 30AWG, 3 metros MCP1650-V02AE26-BL

Deliver 200 Gbps throughput over a 3-meter passive copper link with this BLUELAN QSFP56 Direct Attach Cable, engineered for Mellanox MCP1650-V02AE26 environments. The 200GBASE-CR4 standard and InfiniBand technology support high-performance computing and data center interconnects.

Overview

This passive copper DAC uses 30 AWG conductors and QSFP56 connectors on both ends. It is hot-pluggable, has a PVC jacket, and operates between 0°C and 70°C. The 100-ohm impedance ensures signal integrity for 200G links.

What stands out

• 200 Gbps data rate with 200GBASE-CR4 and InfiniBand support
• QSFP56 connectors for Mellanox MCP1650-V02AE26 compatibility
• Passive design with low power consumption
• 30 AWG copper cable, 3 meters long

Technical details

• Connector type: QSFP56 to QSFP56
• Cable type: Passive copper
• Wire gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket material: PVC
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C

Our verdict

A reliable 200G DAC for Mellanox systems, offering straightforward connectivity for demanding data center and HPC applications.
