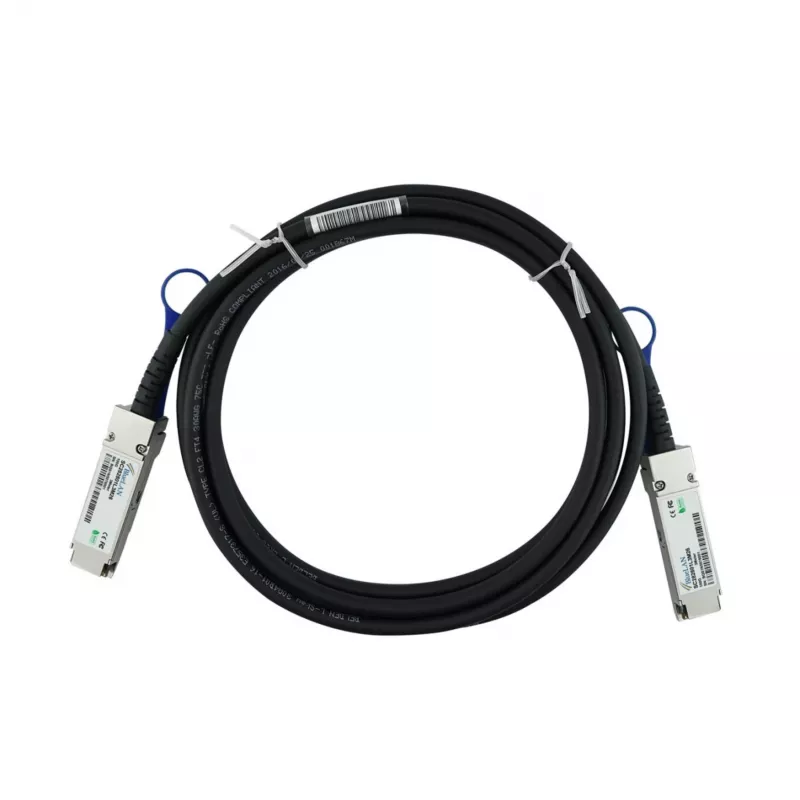

BlueLAN Compatível Extreme Networks 10410 Cabo Direct Attach QSFP28, 100GBASE-CR4, Infiniband EDR, 30AWG, 0,5 metros (10410-BL)

The BlueLAN Compatible Extreme Networks 10410 QSFP28 Direct Attach Cable (DAC) provides a high-performance, cost-effective interconnect solution for data centers and high-performance computing (HPC) environments. Designed for 100 Gigabit Ethernet (100GBASE-CR4) and InfiniBand EDR applications, this passive copper cable ensures reliable, low-latency connections with minimal power consumption.

Advantages

This DAC cable offers a plug-and-play solution without the need for transceivers, reducing cost and complexity. Its passive copper design consumes less than 0.5W, making it energy-efficient. The 30 AWG construction ensures flexibility and durability for short-range interconnects up to 0.5 meters.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Network switch to switch or switch to storage interconnects
• 100GBASE-CR4 Ethernet and InfiniBand EDR networks

Key specifications

• Compatible with Extreme Networks 10410 series
• QSFP28 to QSFP28 form factor
• Data rate: 100 Gbps
• Cable length: 0.5 meters
• Wire gauge: 30 AWG
• Passive copper media
• Hot swappable
• Operating temperature: 0°C to 70°C
• RoHS compliant

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 ports and 100GBASE-CR4 or InfiniBand EDR standards. This cable is ideal for short-distance, high-speed connections within racks.
