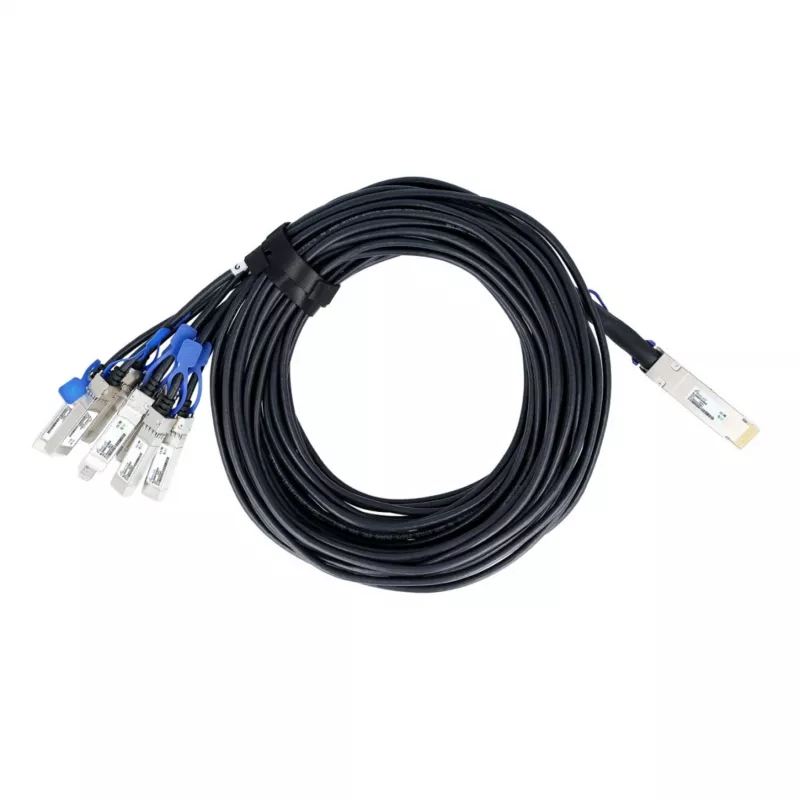

BlueLAN Compatível NVIDIA MCP7F80-W01AR30-NV Cabo DAC Breakout Passivo, QSFP-DD para 8x SFP56, 400GBASE-CR8 para 8x 50GBASE-CR, 1m, 26 AWG, Preto

The BlueLAN MCP7F80-W01AR30-BL is a high-performance passive breakout Direct Attach Copper (DAC) cable designed for data center and high-performance computing environments. It provides a reliable and cost-effective solution for connecting 400G QSFP-DD ports to eight 50G SFP56 ports, enabling seamless network upgrades and high-density interconnects.

Advantages

This breakout cable offers significant advantages over traditional optical transceivers and fiber cabling. It consumes less than 0.5W per end, reducing overall power consumption in the network. The passive design ensures zero latency and high signal integrity, while the 26 AWG construction provides flexibility and durability. Hot-pluggable QSFP-DD and SFP56 connectors simplify installation and maintenance.

Suitable for

• Data center spine-leaf architectures
• High-performance computing (HPC) clusters
• Enterprise networking environments requiring high bandwidth
• Upgrading existing 100G/200G infrastructure to 400G

Key specifications

• Compatibility: NVIDIA MCP7F80-W01AR30-NV (Mellanox)
• Cable Type: Direct Attach Copper (DAC), Passive
• Connector A: QSFP-DD
• Connector B: 8x SFP56
• Data Rate: 400 Gbps (End A) / 8x 50 Gbps (End B)
• Ethernet Standard: 400GBASE-CR8 / 50GBASE-CR
• Cable Length: 1 Meter
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Power Consumption: < 0.5W per end
• Compliance: RoHS, CE, FCC
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure that both the switch and the connected devices support the required data rates and breakout configurations. This cable is ideal for short-reach interconnects within racks or between adjacent racks. Always verify compatibility with your specific hardware before purchase.
