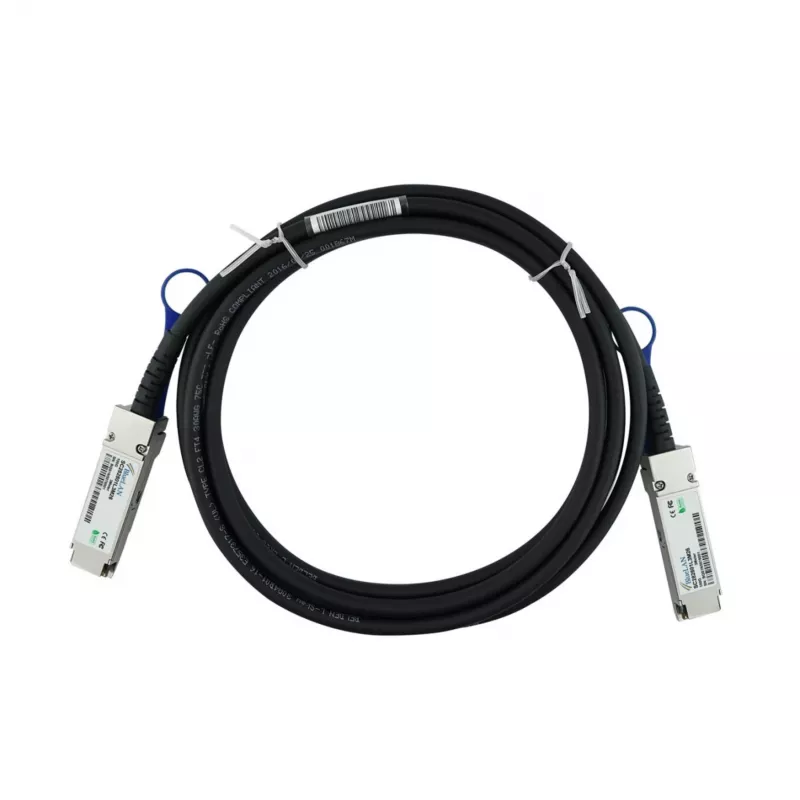

BlueLAN NVIDIA 980-9I62C-00C01A Cabo Direct Attach QSFP28 compatível, 100GBASE-CR4, 3m, Cobre Passivo

This BlueLAN compatible direct attach cable (DAC) is designed to replace the NVIDIA 980-9I62C-00C01A, offering reliable 100 Gbps connectivity for data center and high-performance computing environments. The passive copper cable ensures low latency and cost-effective short-range links.

Advantages

Fully compatible with NVIDIA switches and adapters, this DAC provides a plug-and-play solution without the need for power. The 3-meter length is ideal for top-of-rack to server connections, reducing cable clutter and improving airflow.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Storage area networks (SAN)

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Passive Copper
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• Cable Length: 3 Meter
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Protocol Support: Ethernet, InfiniBand
• Hot-Swappable: Yes
• MSA Compliance: SFF-8665 (QSFP28 MSA)
• IEEE Standard: IEEE 802.3bj
• Power Consumption: < 0.5W per end
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure your equipment supports QSFP28 modules and 100GBASE-CR4. This cable is a cost-effective alternative to active optical cables for short distances.
