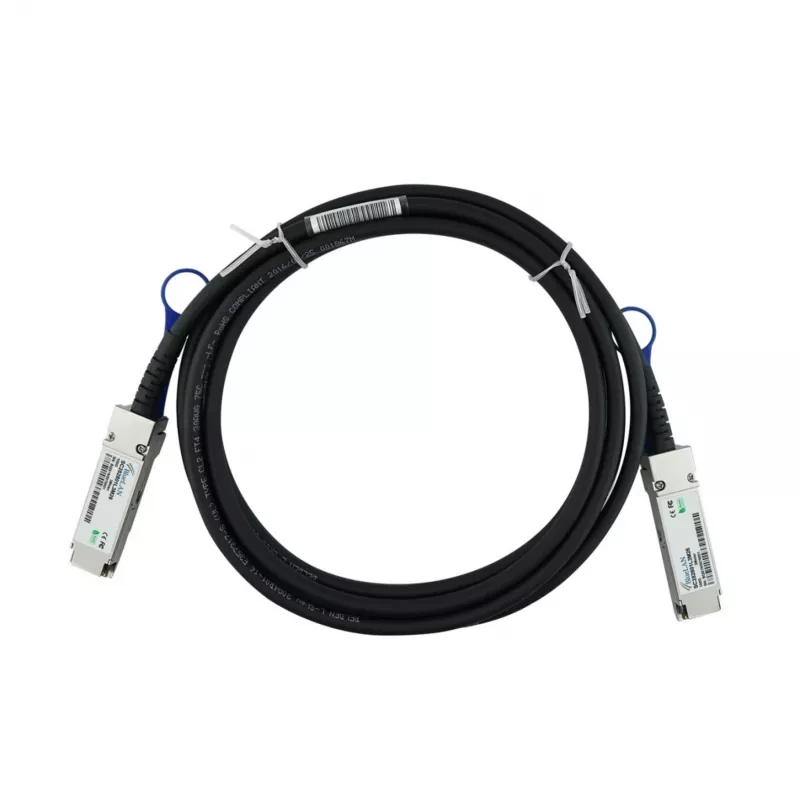

BlueLAN NVIDIA 980-9I62Q-00E001 Cabo Direct Attach compatível, 100GBASE-CR4, QSFP28, 1m, cobre passivo

The BlueLAN SC282801L1M30 is a high-performance direct attach copper (DAC) cable designed for compatibility with NVIDIA (Mellanox) 980-9I62Q-00E001 interfaces. This 1-meter passive cable supports 100GBASE-CR4 standards, delivering reliable 100 Gbps connectivity for data centers and high-performance computing environments.

Advantages

Cost-effective alternative to active optical cables with low power consumption and hot-swappable capability. The 28 AWG copper construction ensures signal integrity over short distances, while the PVC jacket provides durability and flexibility for dense cable management.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking with QSFP28 ports
• InfiniBand and Ethernet applications

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Data Rate: 100 Gbps
• Standard: 100GBASE-CR4
• Connector Type: QSFP28 to QSFP28
• Cable Length: 1 meter
• Wire Gauge: 28 AWG
• Passive/Active: Passive
• Hot Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Jacket Material: PVC
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with compatible NVIDIA/Mellanox switches and adapters. Ensure proper handling to avoid damage to connectors.
