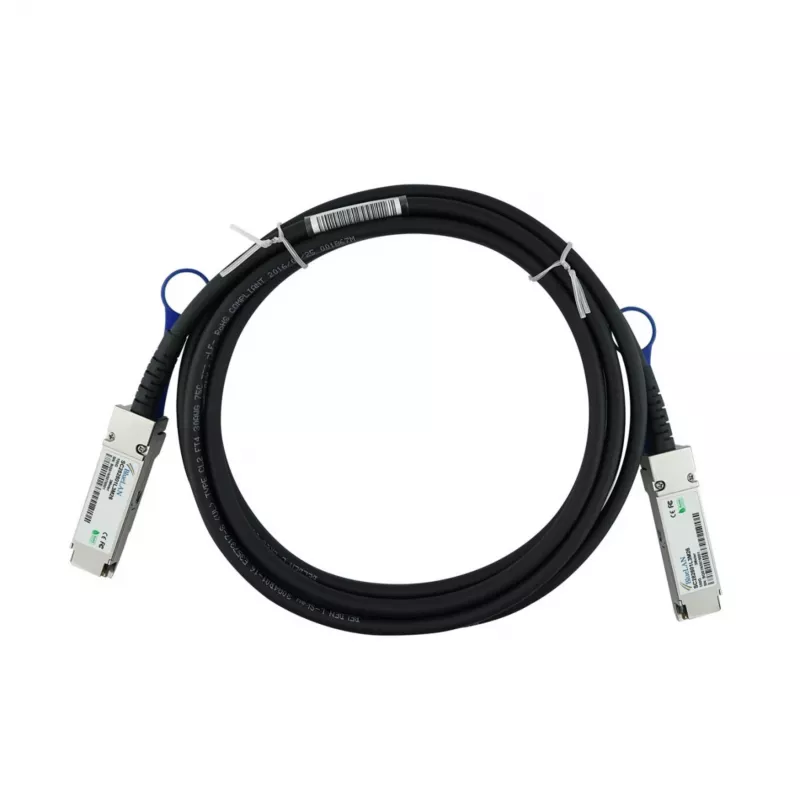

BlueLAN QSFP28-DAC-1M-SG-BL Cabo de cobre Direct Attach compatível Synology, 1m

The BlueLAN QSFP28-DAC-1M-SG-BL is a high-performance, passive direct attach copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. It is fully compatible with Synology networking equipment and MSA compliant, ensuring seamless integration into data center and enterprise environments. This 1-meter cable provides a cost-effective, low-power solution for short-range high-speed interconnects.

Advantages

This DAC cable offers reliable 100GbE performance with minimal power consumption (<0.5W) and low latency. Its passive twinax design eliminates the need for external power, reducing complexity and cost. The 30 AWG copper construction ensures signal integrity over the 1-meter length, while the PVC jacket provides durability and flexibility for easy routing in racks.

Suitable for

• Data center top-of-rack to server/storage connections
• High-performance computing clusters
• Enterprise networking with Synology switches and NICs
• Short-range 100GbE interconnects requiring low power

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Length: 1 Meter (3.3 ft)
• Cable Gauge: 30 AWG
• Impedance: 100 Ohm
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Hot-Pluggable: Yes
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, ensure your Synology device supports QSFP28 DAC cables. This cable is ideal for short-distance, high-bandwidth links within a rack or between adjacent racks. Always handle with care to avoid damaging the connectors.
