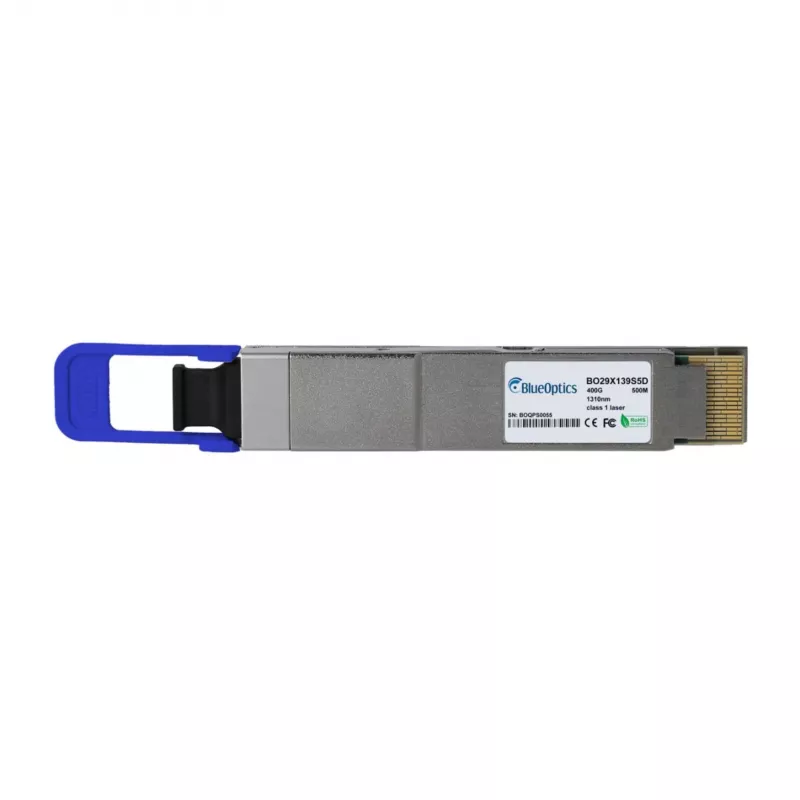

BlueOptics 980-9I16Y-00W000 Transceptor QSFP-DD 400GBASE-DR4 compatível BO29X139S5D

The BlueOptics 980-9I16Y-00W000 compatible QSFP-DD transceiver (BO29X139S5D) is a high-performance optical module designed for 400 Gigabit Ethernet data center and high-speed networking applications. It supports 400GBASE-DR4 over single-mode fiber with a reach of up to 500 meters, utilizing 4 lanes of 100G PAM4 modulation. This MSA-compliant module features an MPO-12/APC connector, hot-pluggable design, and digital diagnostic monitoring for real-time performance tracking.

Advantages

Cost-effective alternative to OEM modules with full compatibility and reliability. Low power consumption (max 12W) and commercial temperature range (0°C to 70°C) ensure efficient operation in dense environments. Hot-swappable design simplifies maintenance and upgrades without network downtime.

Suitable for

• Data center interconnects (DCI)
• 400G Ethernet switch and router uplinks
• High-performance computing clusters
• Cloud and enterprise networking

Key specifications

• Form Factor: QSFP-DD
• Data Rate: 400 Gbps (4x 100G PAM4)
• Max Reach: 500 m over single-mode fiber
• Connector: MPO-12/APC
• Wavelength: 1310 nm
• Power Consumption: Max 12W
• Operating Temperature: 0°C to 70°C
• DDM: Yes
• Hot-Plug: Yes
• Standards: IEEE 802.3bs, QSFP-DD MSA

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure host-side FEC is enabled. Compatible with 980-9I16Y-00W000 equipment. Verify switch compatibility before deployment.
