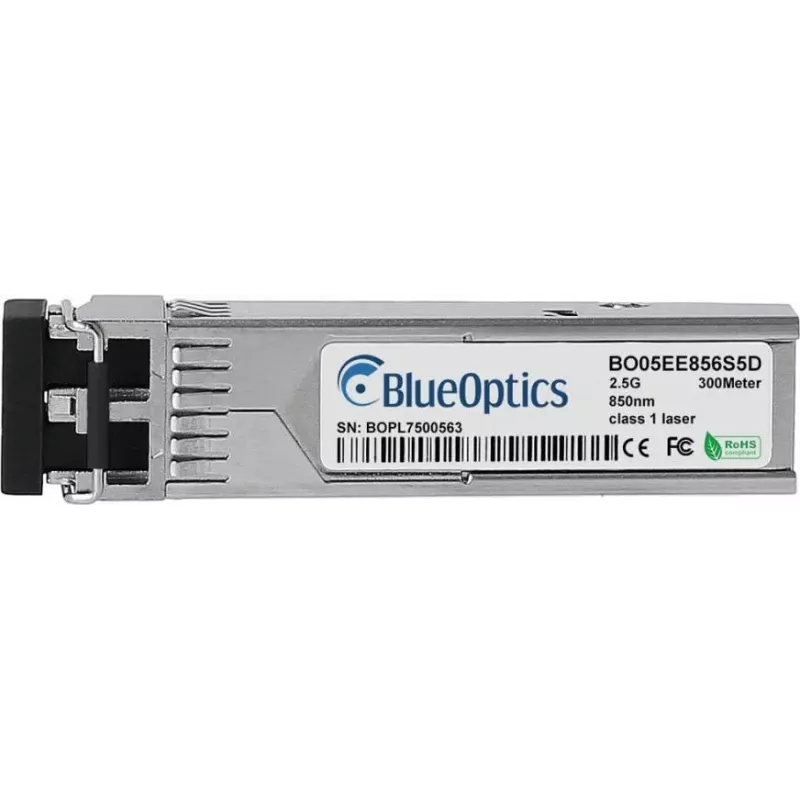

BlueOptics BO05EE856S5D Transceptor SFP, 2.5GBASE-SX, Fibra Multimodo, 850nm, 300m, LC-Duplex, DDM, 0°C a +70°C, compatível com Hirschmann 942162-001

The BlueOptics BO05EE856S5D SFP transceiver is a high-performance, hot-pluggable module designed for 2.5GBASE-SX Ethernet applications over multimode fiber. It is fully compatible with Hirschmann 942162-001 and offers reliable data transmission up to 300 meters at 850 nm wavelength. With built-in Digital Diagnostic Monitoring (DDM), this transceiver provides real-time performance monitoring for enhanced network management.

Advantages

Cost-effective alternative to OEM modules with guaranteed compatibility and performance. Supports hot-swapping for minimal network downtime. DDM enables proactive maintenance and fault detection. Operates in standard commercial temperature range (0°C to +70°C).

Suitable for

• Short-reach data communication in enterprise networks
• Interconnect applications in data centers
• Upgrading existing fiber infrastructure to 2.5 Gbps
• Replacement or expansion of Hirschmann networking equipment

Key specifications

• Transceiver Type: SFP
• Data Rate: 2.5 Gbps
• Ethernet Standard: 2.5GBASE-SX
• Wavelength: 850 nm
• Max Transmission Distance: 300 m
• Fiber Type: Multimode Fiber (MMF)
• Connector Type: LC-Duplex
• Digital Diagnostic Monitoring (DDM): Supported
• Operating Temperature Range: 0°C to +70°C
• Compatibility: Hirschmann 942162-001
• Hot-Swappable: Yes
• Power Supply Voltage: 3.3 V
• Laser Type: VCSEL
• Protocol Support: Ethernet

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber patch cables. Ensure your switch or router supports SFP modules and 2.5GBASE-SX standard. This transceiver is not compatible with single-mode fiber.
