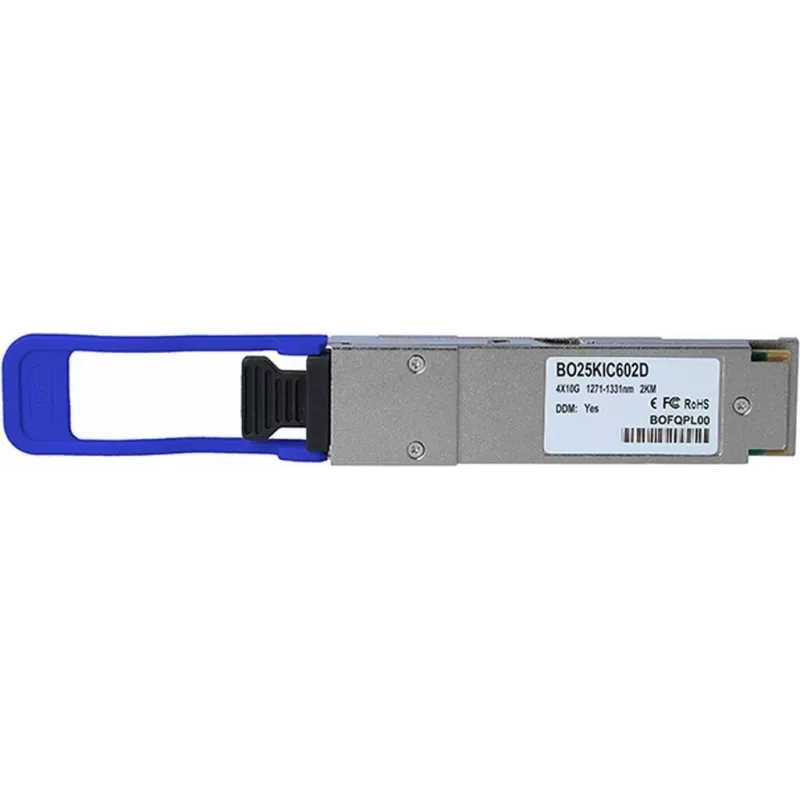

BlueOptics BO25KIC602D Transceptor QSFP, LC-Duplex, 40GBASE-LX4, multimodo OM4 160 m, monomodo 2 km, 4xWDM, 0°C/+70°C, DDM, compatível com Dell Networking 407-BBRC 407-BBRC-BO

Data center technicians and network engineers use this BlueOptics QSFP transceiver to connect Dell Networking switches over fiber optic cabling. It delivers 40 Gbps throughput in a pluggable form factor, supporting both multimode and single-mode links for flexible deployment.

Key specifications

• Transceiver type: QSFP
• Data rate: 40 Gbps
• Ethernet standard: 40GBASE-LX4
• Connector: LC-Duplex
• Multimode fiber: OM4, up to 160 meters
• Single-mode fiber: OS2, up to 2 kilometers
• Wavelength technology: 4xWDM (1271nm, 1291nm, 1311nm, 1331nm)
• Operating temperature: 0°C to +70°C
• Digital Diagnostic Monitoring (DDM): Yes
• Hot-swappable: Yes
• MSA compliant: Yes
• Compatible with Dell Networking 407-BBRC

Why choose it

This transceiver offers dual-mode flexibility: use OM4 multimode for short intra-rack runs or OS2 single-mode for longer campus links. The 4xWDM design combines four wavelengths over a single fiber pair, reducing cabling complexity. DDM provides real-time monitoring of temperature, voltage, and optical power for proactive maintenance.

Ideal use cases

• 40 Gbps uplinks between Dell switches in data centers
• High-bandwidth server connectivity
• Network upgrades requiring both multimode and single-mode support

Good to know

The LC-Duplex connector ensures compatibility with standard fiber patch cords. Hot-swappable design allows installation without powering down the switch. MSA compliance guarantees interoperability with other compliant equipment.
