BlueOptics cabo breakout Direct Attach Copper passivo BlueLAN QSFP+ para 4x SFP+ 0,5 m 40GbE compatível com Ruckus

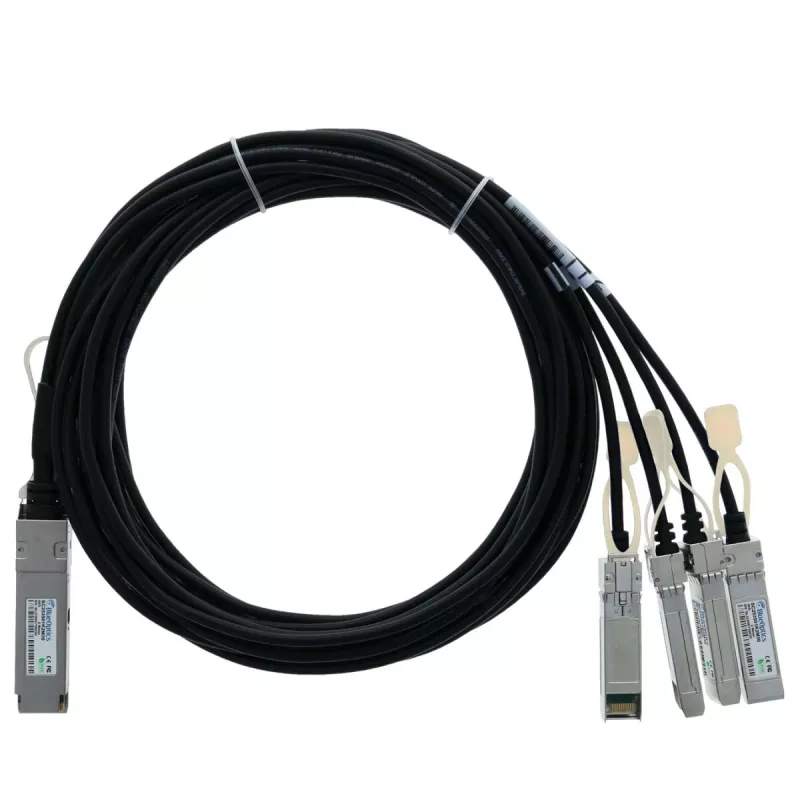

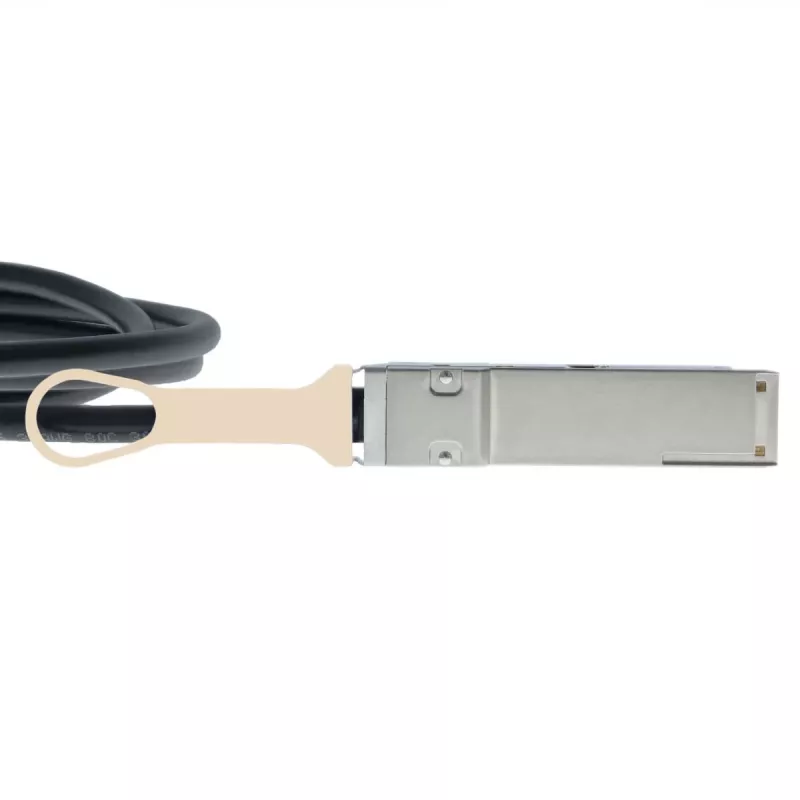

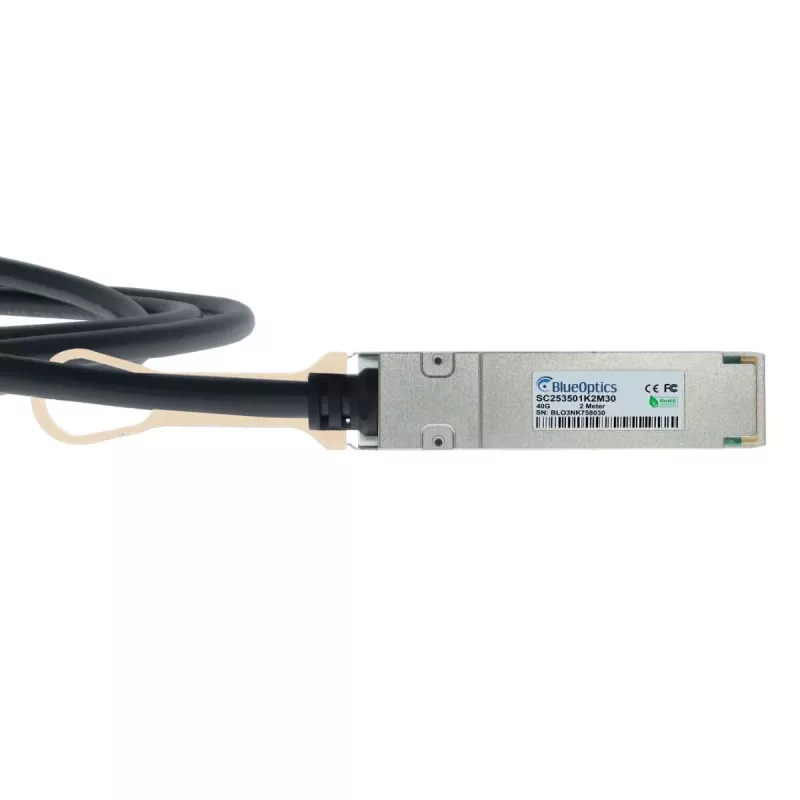

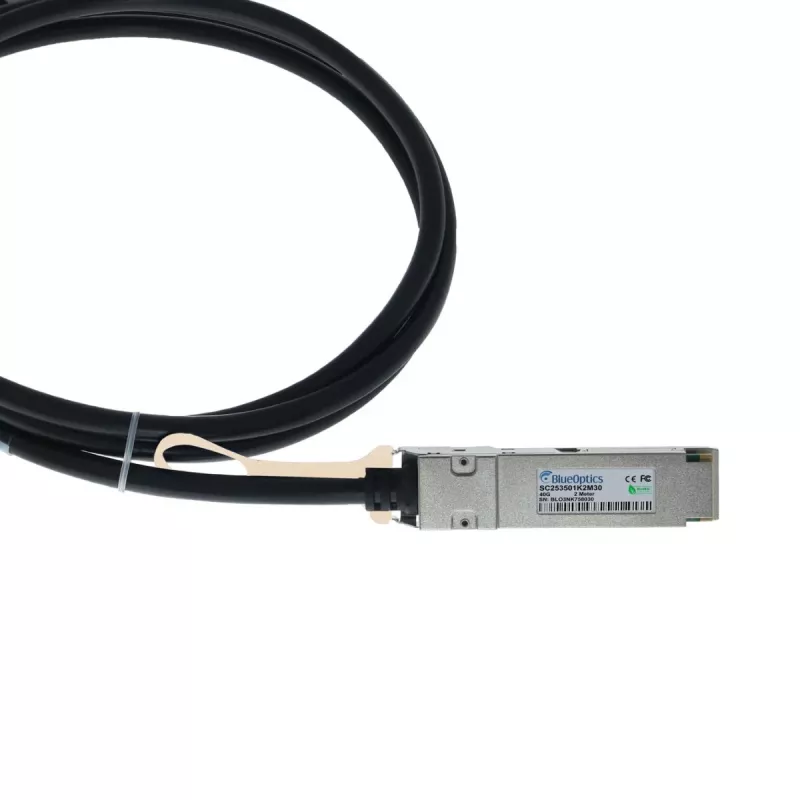

The BlueOptics Ruckus 40G-QSFP-4SFP-PC-0501 compatible BlueLAN QSFP DAC cable is a high-performance passive direct attach copper (DAC) breakout cable designed for 40 Gigabit Ethernet networks. It connects a QSFP+ port to four SFP+ ports, enabling cost-effective and low-latency connectivity for data centers and enterprise networks.

Advantages

This breakout cable offers a reliable and energy-efficient solution for high-speed interconnects. Its passive design ensures zero power consumption, while the 0.5-meter length is ideal for short-range connections within racks. The cable is hot-pluggable and fully compatible with Ruckus 40G QSFP+ ports, ensuring seamless integration.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Enterprise network aggregation
• 40GbE to 10GbE migration scenarios

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connector A: QSFP+
• Connector B: 4x SFP+
• Data Rate: 40GbE (QSFP+ end) / 4x 10GbE (SFP+ end)
• Cable Length: 0.5 meters (50 cm)
• Cable Gauge: 30AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage Supply: 3.3V
• RoHS Compliant: Yes
• Certifications: CE, FCC

Recommendations

For optimal performance, ensure that both the QSFP+ and SFP+ ports support the required data rates and standards. This cable is a direct replacement for the Ruckus 40G-QSFP-4SFP-PC-0501 and is ideal for short-distance, high-bandwidth connections.
