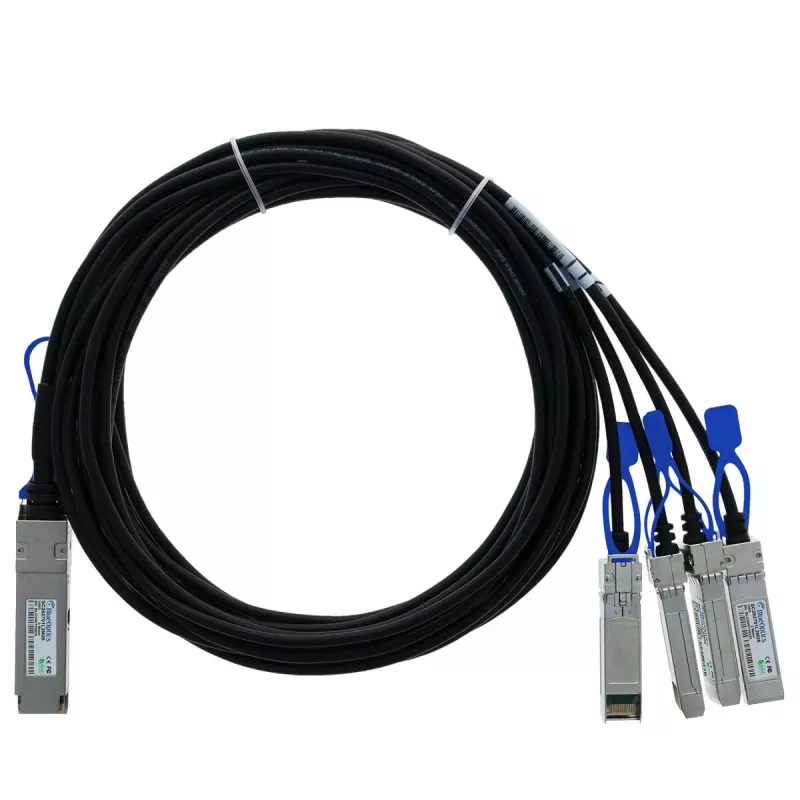

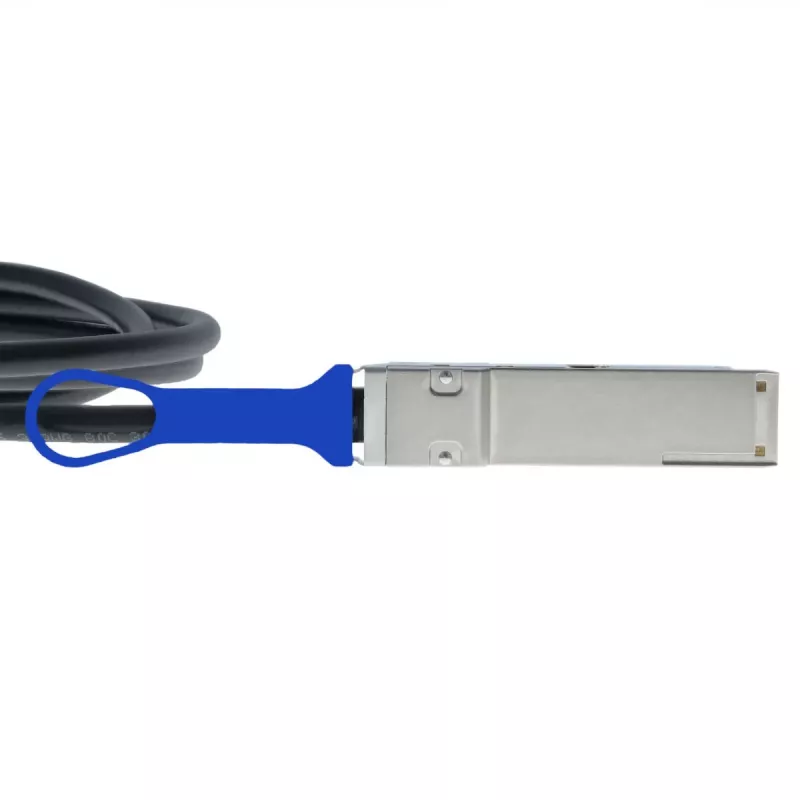

BlueOptics cabo breakout Direct Attach Copper passivo BlueLAN QSFP28 para 4x SFP28 1m compatível com Ruckus 100G-QSFP-4SFP-P-0501

The BlueOptics Ruckus 100G-QSFP-4SFP-P-0501 Compatible BlueLAN QSFP28 DAC Cable is a high-performance passive direct attach copper breakout cable designed for data center and enterprise networking environments. It provides a cost-effective and low-power solution for 100G connectivity, breaking out a single QSFP28 port into four SFP28 ports, each supporting 25 Gbps.

Advantages

This cable offers reliable, low-latency connectivity with minimal power consumption (<0.5W). Its passive design ensures plug-and-play operation without the need for external power. The breakout configuration allows efficient utilization of existing 25G infrastructure while upgrading to 100G aggregation. Compliant with IEEE 802.3bj (100GBASE-CR4) and InfiniBand EDR, it ensures broad compatibility.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Enterprise network top-of-rack switching
• Ruckus 100G-QSFP-4SFP-P-0501 and compatible QSFP28 ports

Key specifications

• Aggregate data rate: 100 Gbps (4x 25 Gbps per lane)
• Connector A: QSFP28, Connector B: 4x SFP28
• Cable type: Passive Direct Attach Copper (DAC)
• Cable length: 1 meter (3.3 feet)
• Wire gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket material: PVC
• Operating temperature: 0°C to 70°C
• RoHS compliant

Recommendations

Ensure your equipment supports QSFP28 and SFP28 interfaces. For optimal performance, use within specified temperature range and avoid sharp bends. This cable is ideal for short-reach, high-speed connections within racks.
