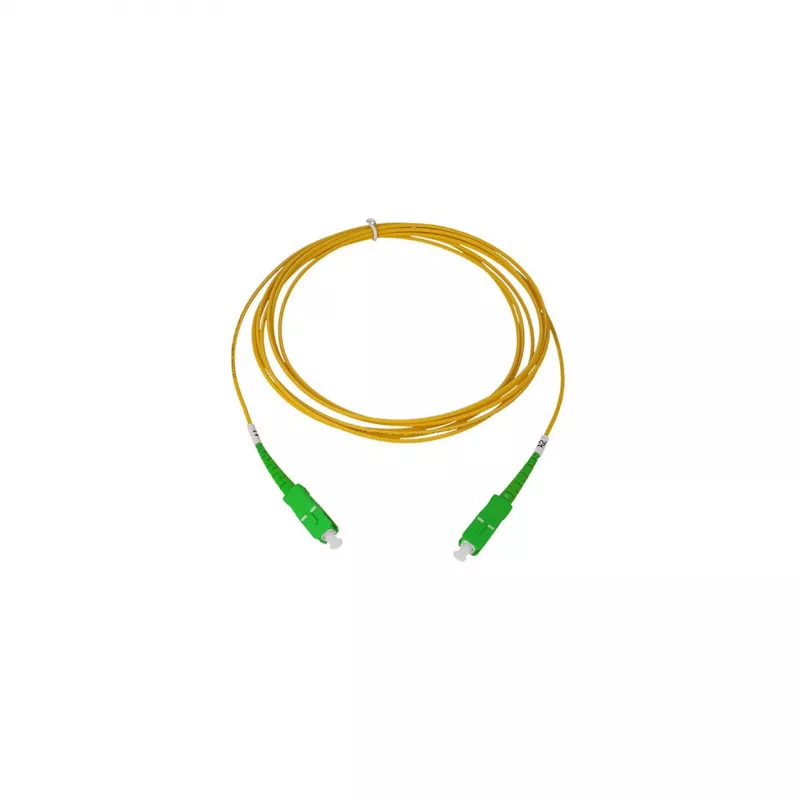

BlueOptics Cabo de patch de fibra óptica simplex SC-APC/SC-APC monomodo OS2 20m verde

The BlueOptics SFP2222BU20MM is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. With SC-APC connectors on both ends and a length of 20 metres, this cable is ideal for FTTH, data centres, and telecommunications networks. The LSZH jacket ensures safety in indoor environments, while the green colour aids easy identification.

Advantages

Low insertion loss (≤0.2 dB) and high return loss (≥60 dB) ensure excellent signal integrity. The bend-insensitive G.657.A2 fibre allows tight bends without performance degradation. Zirconia ceramic ferrules provide durability and precise alignment.

Suitable for

• Fibre-to-the-home (FTTH) installations
• Data centre patching
• Telecommunications networks
• LAN and WAN connections

Key specifications

• Connector type: SC-APC to SC-APC
• Fibre mode: Single mode (OS2)
• Fibre standard: G.657.A2 (bend-insensitive)
• Cable length: 20 metres
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Green
• Insertion loss: ≤0.2 dB
• Return loss: ≥60 dB
• Ferrule material: Zirconia ceramic
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard SC-APC interfaces.
