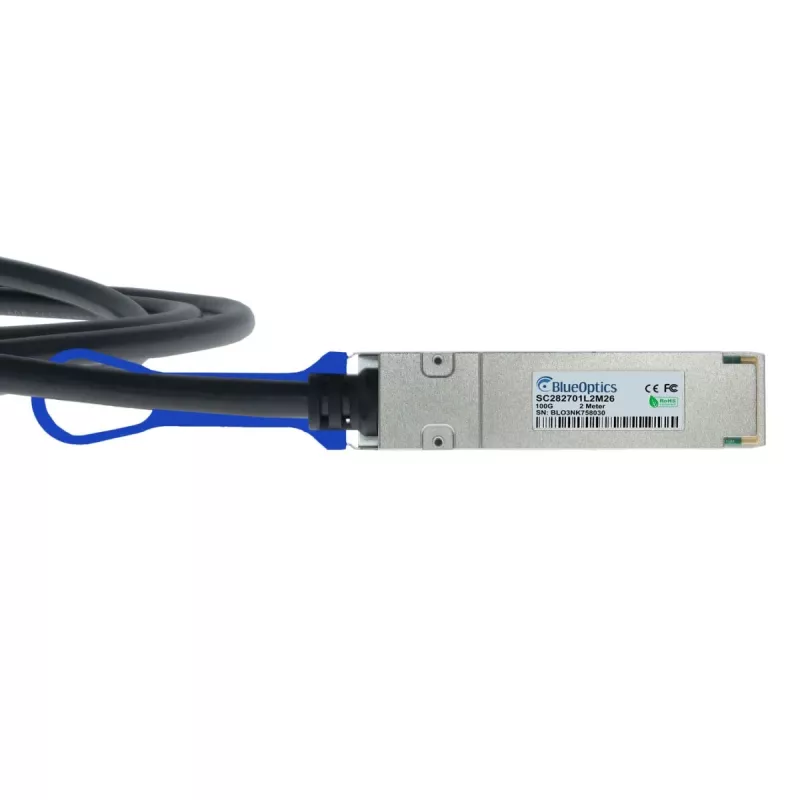

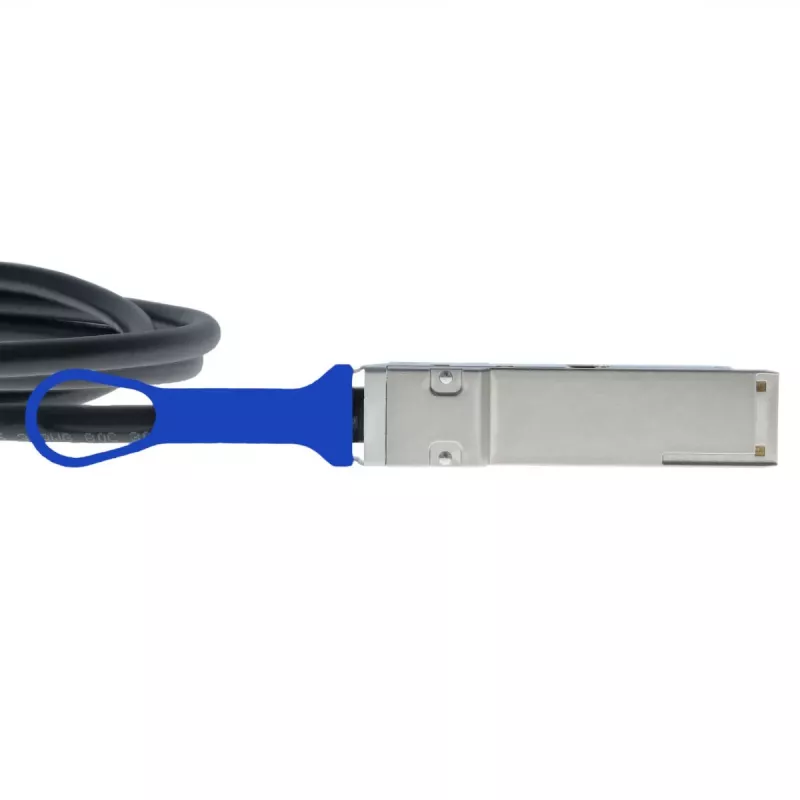

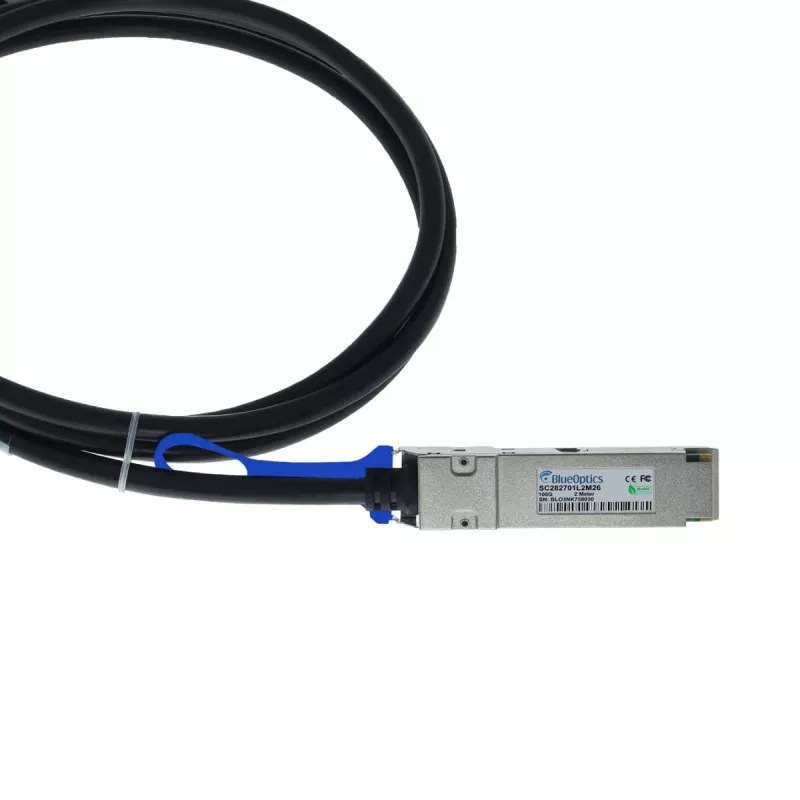

BlueOptics cabo Direct Attach Copper BlueLAN QSFP28 2m compatível com 100G-Q28-S28-C-0201

The BlueOptics 100G-Q28-S28-C-0201 is a high-performance, passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. This QSFP28 to QSFP28 cable is fully compatible with BlueLAN equipment and offers a cost-effective, low-power solution for short-reach interconnects in data centers and enterprise networks.

Advantages

This DAC cable provides reliable 100 Gbps data transmission over 2 meters with minimal power consumption (<0.5W per end). Its passive design ensures zero latency and low cost, while the 26 AWG construction and PVC jacket deliver durability and flexibility. Hot-pluggable and compliant with RoHS, CE, and FCC standards, it simplifies deployment and maintenance.

Suitable for

• Data center interconnect (top-of-rack to server)
• Server-to-server connections
• Switch-to-switch links
• High-performance computing environments

Key specifications

• Data Rate: 100 Gbps
• Cable Type: Direct Attach Copper (DAC), Passive
• Connectors: QSFP28 to QSFP28
• Cable Length: 2 meters
• AWG: 26 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: <0.5W per end
• Voltage: 3.3V
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is ideal for short-distance, high-speed links within racks or between adjacent racks. Avoid excessive bending or pulling to maintain signal integrity.
